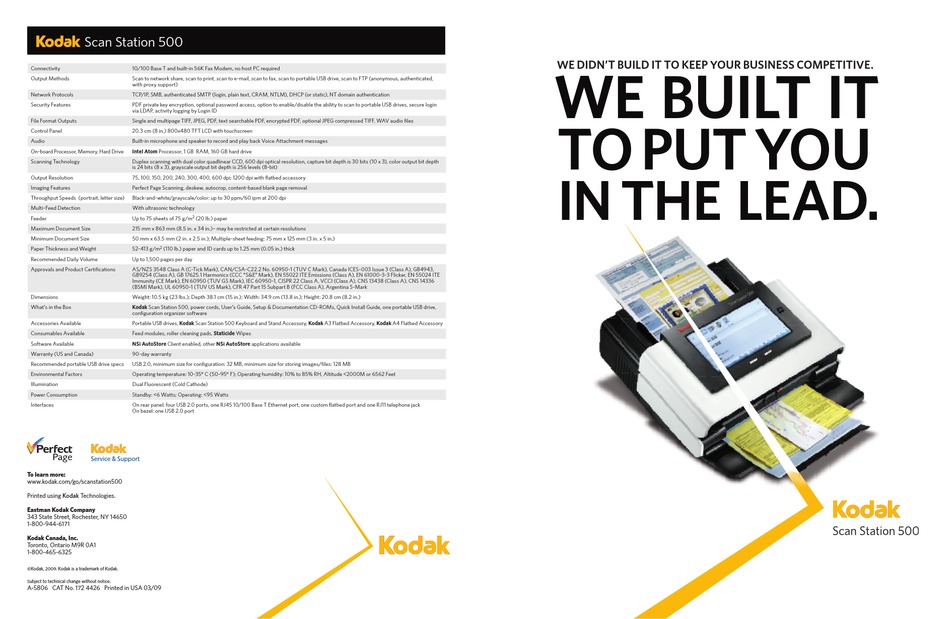

Kodak Scan Station 500 Specifications

Scan Station 500
Connectivity 10/100 Base T and built-in 56K Fax Modem, no host PC required
Output Methods Scan to network share, scan to print, scan to e-mail, scan to fax, scan to portable USB drive, scan to FTP (anonymous, authenticated,
with proxy support)
Network Protocols TCP/IP, SMB, authenticated SMTP (login, plain text, CRAM, NTLM), DHCP (or static), NT domain authentication
Security Features PDF private key encryption, optional password access, option to enable/disable the ability to scan to portable USB drives, secure login
via LDAP, activity logging by Login ID
File Format Outputs Single and multipage TIFF, JPEG, PDF, text searchable PDF, encrypted PDF, optional JPEG compressed TIFF, WAV audio fi les
Control Panel 20.3 cm (8 in.) 800x480 TFT LCD with touchscreen
Audio Built-in microphone and speaker to record and play back Voice Attachment messages
On-board Processor, Memory, Hard Drive Intel Atom Processor, 1 GB RAM, 160 GB hard drive
Scanning Technology Duplex scanning with dual color quadlinear CCD, 600 dpi optical resolution, capture bit depth is 30 bits (10 x 3), color output bit depth
is 24 bits (8 x 3), grayscale output bit depth is 256 levels (8-bit)
Output Resolution 75, 100, 150, 200, 240, 300, 400, 600 dpi; 1200 dpi with fl atbed accessory
Imaging Features Perfect Page Scanning, deskew, autocrop, content-based blank page removal
Throughput Speeds (portrait, letter size) Black-and-white/grayscale/color: up to 30 ppm/60 ipm at 200 dpi
Multi-Feed Detection With ultrasonic technology
2
Feeder Up to 75 sheets of 75 g/m (20 lb.) paper
Maximum Document Size 215 mm x 863 mm (8.5 in. x 34 in.)– may be restricted at certain resolutions
Minimum Document Size 50 mm x 63.5 mm (2 in. x 2.5 in.); Multiple-sheet feeding: 75 mm x 125 mm (3 in. x 5 in.)
Paper Thickness and Weight 52-413 g/m 2 (110 lb.) paper and ID cards up to 1.25 mm (0.05 in.) thick
Recommended Daily Volume Up to 1,500 pages per day
Approvals and Product Certifi cations AS/NZS 3548 Class A (C-Tick Mark), CAN/CSA-C22.2 No. 60950-1 (TUV C Mark), Canada ICES-003 Issue 3 (Class A), GB4943,
GB9254 (Class A), GB 17625.1 Harmonics (CCC "S&E" Mark), EN 55022 ITE Emissions (Class A), EN 61000-3-3 Flicker, EN 55024 ITE
Immunity (CE Mark), EN 60950 (TUV GS Mark), IEC 60950-1, CISPR 22 Class A, VCCI (Class A), CNS 13438 (Class A), CNS 14336
(BSMI Mark), UL 60950-1 (TUV US Mark), CFR 47 Part 15 Subpart B (FCC Class A), Argentina S-Mark
Dimensions Weight: 10.5 kg (23 lbs.); Depth 38.1 cm (15 in.); Width: 34.9 cm (13.8 in.); Height: 20.8 cm (8.2 in.)
What's in the Box Kodak Scan Station 500, power cords, User's Guide, Setup & Documentation CD-ROMs, Quick Install Guide, one portable USB drive,
confi guration organizer software
Accessories Available Portable USB drives, Kodak Scan Station 500 Keyboard and Stand Accessory, Kodak A3 Flatbed Accessory, Kodak A4 Flatbed Accessory
Consumables Available Feed modules, roller cleaning pads, Staticide Wipes
Software Available NSi AutoStore Client enabled, other NSi AutoStore applications available
Warranty (US and Canada) 90-day warranty
Recommended portable USB drive specs USB 2.0, minimum size for confi guration: 32 MB, minimum size for storing images/fi les: 128 MB
Environmental Factors Operating temperature: 10-35° C (50-95° F); Operating humidity: 10% to 85% RH, Altitude <2000M or 6562 Feet
Illumination Dual Fluorescent (Cold Cathode)
Power Consumption Standby: <6 Watts; Operating: <95 Watts
Interfaces On rear panel: four USB 2.0 ports, one RJ45 10/100 Base T Ethernet port, one custom fl atbed port and one RJ11 telephone jack
On bezel: one USB 2.0 port
