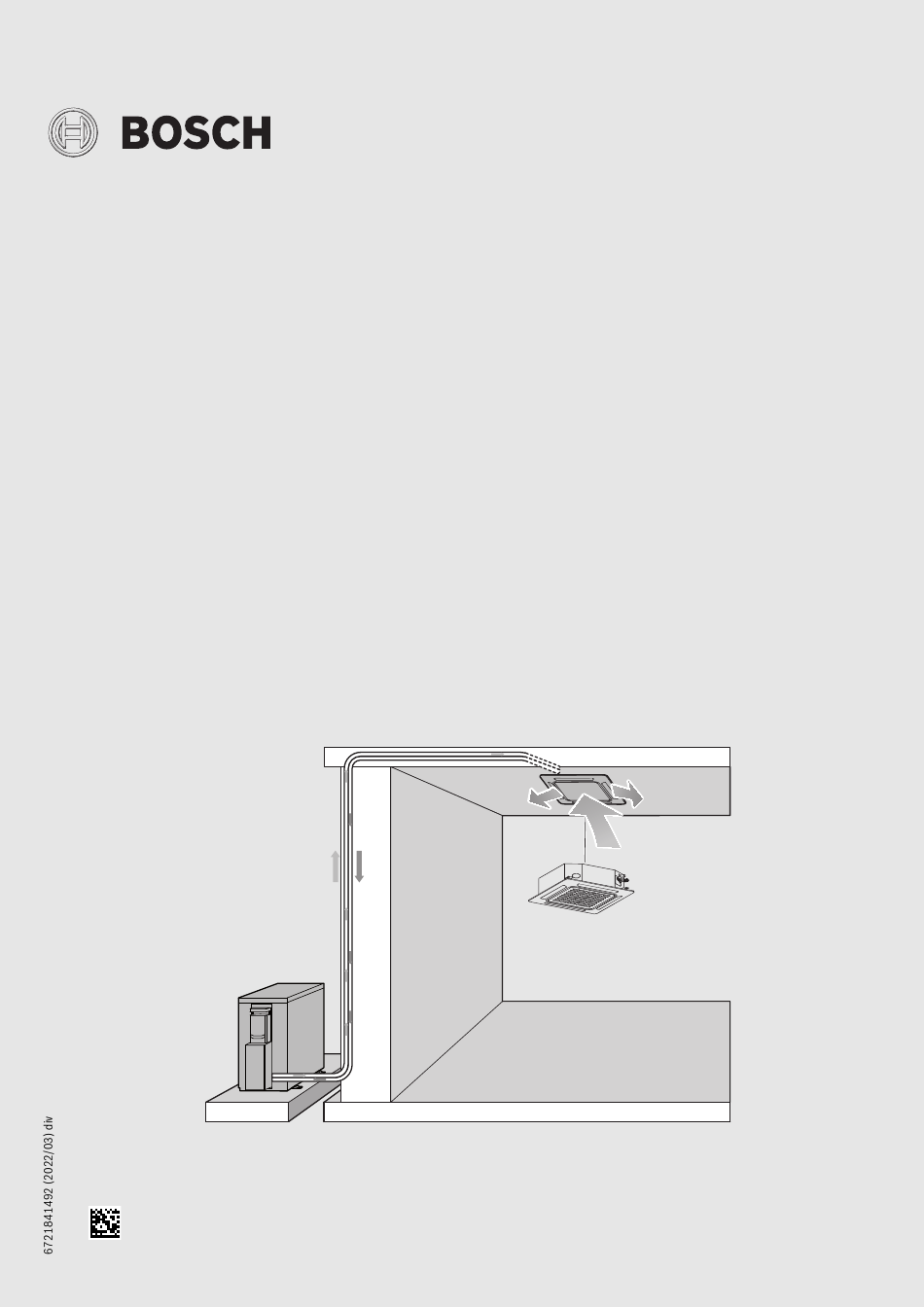

Bosch Climate 5000 L Installation Instructions Manual
Large split air conditioner
Hide thumbs
Also See for Climate 5000 L:
- Installation instructions manual (31 pages) ,
- Manual (26 pages) ,
- Operating instructions for users (16 pages)
Table of Contents
Advertisement
Quick Links
Climate 5000 L • Climate 5000i U/L
CL5000L 35 E • CL5000iU 4CC 35 E | CL5000L 53 E • CL5000iU 4CC 53 E |
CL5000L 70 E • CL5000iU 4C 70 E | CL5000L 88 E • CL5000iL 4C 88 E |
CL5000L 105 E • CL5000iL 4C 105 E | CL5000L 105 E-3 • CL5000iL 4C 105 E |
CL5000L 125 E • CL5000iL 4C 125 E | CL5000L 140 E-3 • CL5000iL 4C 140 E |
CL5000L 160 E-3 • CL5000iL 4C 160 E
bg
Голям климатичен уред сплит система
de
Large-Split-Klimagerät
el
Κλιματιστικό τύπου Split Large
en
Large split air conditioner
es
Climatizador Large Split
fr
Climatiseur large split
it
Condizionatore Large Split
nl
Large-Split-airconditioning
pl
Urządzenie klimatyzacyjne large split
pt
Ar condicionado split
ro
Aparat de aer condiționat de tip split Large
sq
Kondicioner Large Split
tr
4 Yöne Üflemeli Kaset Tipi Split Klima
uk
Спліт кондиціонер для застосування у
приміщеннях великих площ
Ръководство за монтаж за специалисти. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Installationsanleitung für die Fachkraft . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Οδηγίες εγκατάστασης για τον εξειδικευμένο τεχνικό. . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Installation instructions for the qualified person . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
Manual de instalación para el técnico . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63
Notice d'installation pour le spécialiste . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78
Istruzioni per l'installazione per il tecnico specializzato . . . . . . . . . . . . . . . . . . . . . . . . 93
Installatie-instructie voor de vakman. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 108
Instrukcja montażu dla instalatora . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 123
Manual de instalação para técnico especializado . . . . . . . . . . . . . . . . . . . . . . . . . . . . 138
Instrucțiuni de instalare pentru personalul specializat . . . . . . . . . . . . . . . . . . . . . . . . 153
Udhëzimet e instalimit për specialistin . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 168
Yetkili servis personeli için montaj kılavuzu. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 183
Інструкція з монтажу та технічного обслуговування для фахівців . . . . . . . . . . . . 198
0010040318-003
Advertisement
Table of Contents
Related Manuals for Bosch Climate 5000 L
Summary of Contents for Bosch Climate 5000 L
- Page 1 Climate 5000 L • Climate 5000i U/L CL5000L 35 E • CL5000iU 4CC 35 E | CL5000L 53 E • CL5000iU 4CC 53 E | CL5000L 70 E • CL5000iU 4C 70 E | CL5000L 88 E • CL5000iL 4C 88 E | CL5000L 105 E •...
-
Page 2: Table Of Contents
Table of contents Table of contents Explanation of symbols and safety instructions Explanation of symbols Explanation of symbols and safety instructions ..48 Explanation of symbols ......48 Warnings General safety instructions . -
Page 3: General Safety Instructions
The complete text of the Declaration of Conformity is available on the sensory or mental capabilities or lacking in experience Internet: worcester-bosch.co.uk. and knowledge, if they are supervised and have been Scope of delivery given instruction in the safe use of the appliance and The appliances are shown as an example and deviations are possible. -
Page 4: Twin Combination
Installation Twin combination ▶ Observe pipe diameter and further specifications. The appliances can be installed as so-called twin combination. In doing Pipe diameter [mm] Alternative pipe diameter [mm] so, an outdoor unit is combined with two indoor units of the same type. 6.35 (1/4") The indoor units must be installed at the same height. -
Page 5: Requirements For Installation Site
Installation Requirements for installation site 3.3.1 Installing the indoor unit in the ceiling ▶ Observe minimum clearances ( Chapter 2.4 on page 50). ▶ Observe minimum room area. We recommend preparing the pipes before hanging the indoor unit so Device type Installation height Minimum room area that only the pipes need to be connected. -
Page 6: Assembly Of Cover Cl5000Il 4C
Installation 3.3.3 Assembly of cover CL5000iL 4C ... Installing the outside air duct ▶ Remove the air inlet grille from the cover ( Fig. 22). There is an outside air intake opening on side the appliance, which can ▶ Remove the cover at the 4 corners ( Fig. 23). be used if required (... -
Page 7: Connecting Condensate Pipe To The Indoor Unit
Installation 3.5.2 Connecting condensate pipe to the indoor unit Filling the system Depending on the type of installation, the condensate pipe must either NOTICE be connected to the integrated condensate pump or the condensation catch pan. Malfunction due to incorrect refrigerant ▶... -
Page 8: Connecting The Indoor Unit
Installation 3.6.2 Connecting the indoor unit 3.6.4 Connection as twin combination With the twin combination, two indoor units are connected in series. Connect CL5000iU 4CC ... With the slave unit, terminal S is omitted. Instead of that, communication The indoor unit is connected via a 4-wire communication cable. Use takes place between he indoor units via terminals X, Y and E. -
Page 9: On-Site Configuration
On-site configuration CL5000iU 4CC ... On-site configuration DIP switch Definition of DIP Switches DIP switch setting Fan OFF temperature when heating (anti-cold air function) • [00]: 24° WARNING • [01]: 8 °C Risk to life from electric shock! • [10]: 15 °C Touching live electrical parts can cause an electric shock. -
Page 10: Commissioning
Commissioning Commissioning Troubleshooting Commissioning checklist Faults with indication (Self diagnosis function) Outdoor unit and indoor units are correctly WARNING installed. Risk to life from electric shock! Touching live electrical parts can cause an electric shock. Pipes are correctly ▶ Before working on electrical parts, disconnect all phases of the •... - Page 11 Troubleshooting 4C Indoor Unit Fault code Content EH 00/EH 0A Indoor unit EEPROM fault EL 01 Communication fault between outdoor and indoor unit EH 03 Indoor unit fan outside the normal range (with some units) EH 60 Temperature sensor T1 (room temperature sensor) switched off or short-circuited EH 61 Temperature sensor T2 (pipe temperature sensor) switched off or short-circuited EL 0C...
-
Page 12: Faults Not Indicated
Troubleshooting Outdoor Unit Fault code Content EC 51 Outdoor unit EEPROM fault EL 01 Communication fault between outdoor and indoor unit PC 40 Communication fault between PCI and printed circuit board of outdoor unit PC 08 Overcurrent protection of outdoor unit PC 10 Low-voltage protection of outdoor unit AC voltage PC 11... -
Page 13: Environmental Protection And Disposal
Data Protection Officer, Information Security and Privacy (C/ISP), This symbol means that the product must not be disposed Robert Bosch GmbH, Postfach 30 02 20, 70442 Stuttgart, GERMANY. of with other waste, and instead must be taken to the waste... -
Page 14: Technical Data
Technical data Technical data CL5000iL-Set 35 4CCE CL5000iL-Set 53 4CCE CL5000iL-Set 70 4CE Indoor Unit CL5000iU 4CC 35 E CL5000iU 4CC 53 E CL5000iU 4C 70 E Outdoor Unit CL5000L 35 E CL5000L 53 E CL5000L 70 E General Refrigerant –... - Page 15 Technical data CL5000iL-Set 88 4CE CL5000iL-Set 105 4CE CL5000iL-Set 105 4CE-3 Indoor Unit CL5000iL 4C 88 E CL5000iL 4C 105 E CL5000iL 4C 105 E Outdoor Unit CL5000L 88 E CL5000L 105 E CL5000L 105 E-3 General Refrigerant – Design pressure (max./min.) 4.3/1.7 4.3/1.7 4.3/1.7...
- Page 16 Technical data CL5000iL-Set 125 4CE CL5000iL-Set 140 4CE-3 CL5000iL-Set 160 4CE-3 Indoor Unit CL5000iL 4C 125 E CL5000iL 4C 140 E CL5000iL 4C 160 E Outdoor Unit CL5000L 125 E CL5000L 140 E-3 CL5000L 160 E-3 General Refrigerant – Design pressure (max./min.) 4.3/1.7 4.3/1.7 4.3/1.7...
- Page 17 Технічні характеристики 0010042044-001 0010042043-001 CL5000L 35~125... CL5000L 140~160... >1000 >1000 0010040090-002 [mm] Climate 5000 L • Climate 5000i U/L – 6721841492 (2022/03)
- Page 18 Технічні характеристики 0010040089-002 CL5000iU 4CC ... 0010040091-001 [mm] A [mm] B [mm] C [mm] CL5000iU 4CC 35 E > 290 CL5000iU 4CC 53 E > 290 CL5000iU 4C 70 E > 235 CL5000iL 4C 88 E > 275 CL5000iL 4C 105 E >...
- Page 19 Технічні характеристики ≥ 6 0 0 ≥ 3 0 0 ≥ 3 ≥ 6 0 0 ≤ 6 m ≤ 6 m ≥ 2 0010034026-001 0010032599-003 [mm] [mm] [mm] [mm] [mm] [mm] [mm] CL5000L 35 E CL5000L 53 E CL5000L 70 E >...
- Page 20 Технічні характеристики 00100042052-001 0010032911-001 CL5000L 140~160... CL5000L 35~125... 00100042053-001 0010041912-001 CL5000L 140~160... CL5000L 35~125... 0010032916-001 0010042054-001 CL5000L 35~125... CL5000L 140~160... Climate 5000 L • Climate 5000i U/L – 6721841492 (2022/03)
- Page 21 Технічні характеристики 1(L) 2(N) S 230 V AC 0010042069-001 CL5000iU 4CC ... 0010040351-002 CL5000L ... E 1(L) 2(N) S L1 L2 L3 N 400 V AC 0010042047-001 CL5000iL 4C ... 0010042061-001 CL5000L ... E-3 0010035704-001 0010040110-002 CL5000iU 4CC ... CL5000iL 4C ... Climate 5000 L •...
- Page 22 Технічні характеристики CN14 CN10A 5× 10× L N S 0010035707-002 0010040324-002 CL5000iU 4CC ... CL5000iL 4C ... 1000-1500 CN10 10× CN66 1(L)2(N) S 7× 1/100 0010040332-002 CL5000iL 4C ... 1000-1500 1/100 ≤300 ≤530 ≤1000 0010034329-002 [mm] For 4C, the distance should be ≤1000.For 4CC, the distance should be ≤750.
- Page 23 Технічні характеристики 400 V AC IDU-M X Y E L1 L2 L3 1(N) 2(L) X Y E IDU-S 0010041924-001 CL5000L ... E-3 0010035266-001 CL5000iU 4CC ... IDU-M 230 V AC X Y E 1(N) 2(L) ≤ 50 cm ≤ 20 m X Y E IDU-S 0010042122-001...
