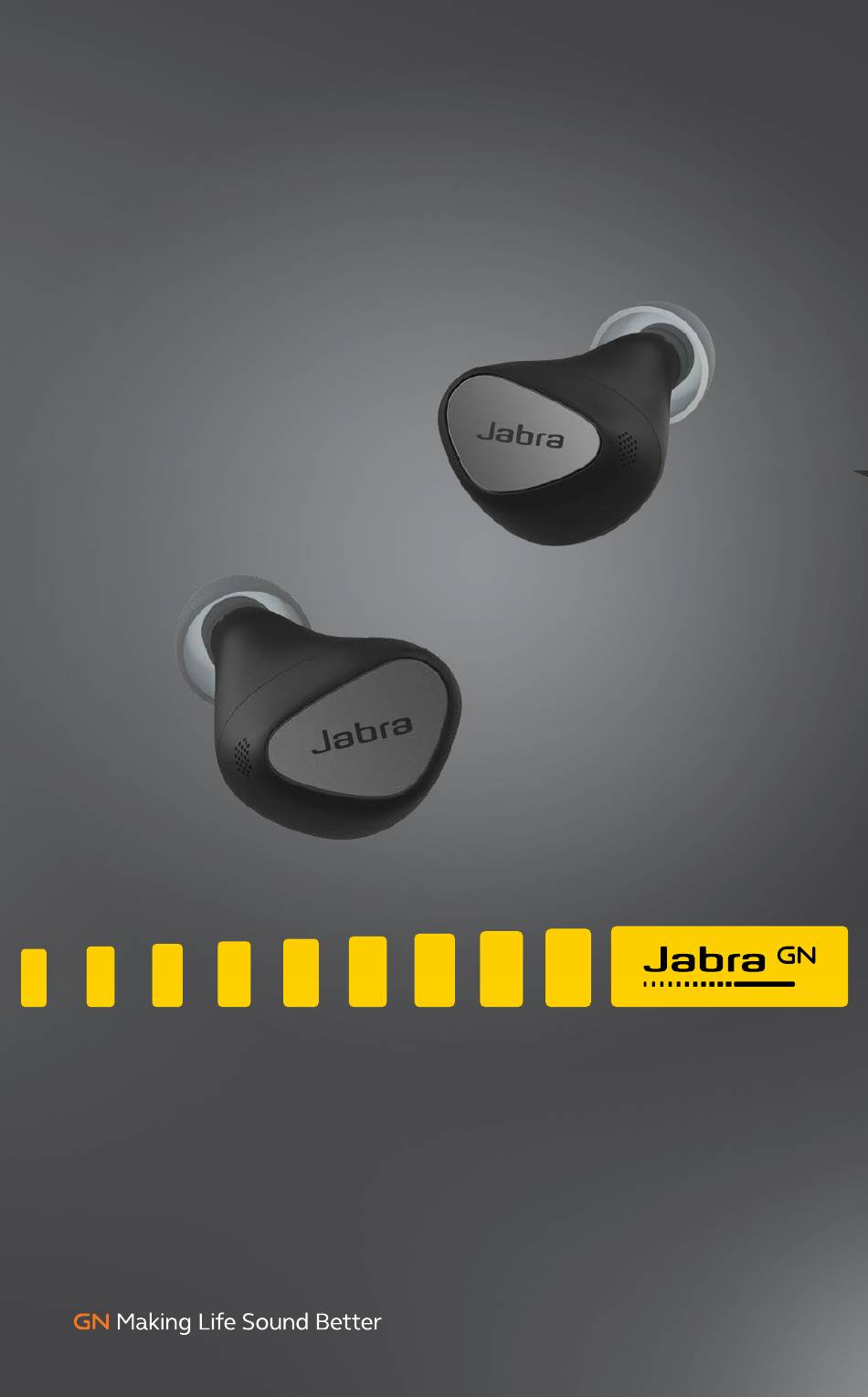

  • Page 1 Jabra Elite 5 User manual...
  • Page 2 ® © 2022 GN Audio A /S. All rights reserved. Jabra is a ® trademark of GN Audio A/S. The Bluetooth word mark and logos are registered trademarks owned by the Bluetooth SIG, Inc. and any use of such marks by GN Audio A/S is under license.
  • Page 3 1. Welcome ........5 2. Jabra Elite 5 overview ....6 2.1 Included accessories 3. How to wear .........8 3.1 Changing EarGels 4. How to charge ......10 4.1 Charging the earbuds 4.2 Fast charge the earbuds 4.3 Charging the charging case using USB 4.4 Charging the charging case using a...
  • Page 4 7.12 Sleep mode 7.13 Multiple call handling 7.14 Multipoint 7.15 Update firmware 7.16 Reset the earbuds 8. Jabra Sound+ app ....33 9. Support ........34 9.1 FAQ 9.2 How to care for your earbuds 9.3 Replacement accessories 9.4 Using replacement earbuds...
  • Page 5 1. Welcome Thank you for using the Jabra Elite 5. We hope you will enjoy it! Jabra Elite 5 features • Hybrid Active Noise Cancellation (ANC) blocks more background noise • 6-mic call technology with dedicated microphones to reduce wind noise •...
  • Page 6 2. Jabra Elite 5 overview Jabra Elite 5 earbuds LEFT EARBUD RIGHT EARBUD Left Right button button Microphones Microphones Charging case Charging port Qi-certified wireless charging...
  • Page 7 2.1 Included accessories EarGels pre-mounted on the earbuds USB-C charging cable...

  • Page 8: How To Wear

    3. How to wear Microphone Carefully insert each earbud into your ear. Position the microphones on the earbuds towards your mouth.

  • Page 9: Changing Eargels

    3.1 Changing EarGels For the optimal audio experience, it is recommended to try each of the different EarGel sizes. The fit should feel light and comfortable in your ear. The medium EarGels are pre-mounted on the earbuds.

  • Page 10: How To Charge

    4. How to charge The Jabra Elite 5 offers up to 7 hours of battery and up to 28 hours with the charging case and fast charge. 4.1 Charging the earbuds Place the earbuds in the charging case and close the lid. It takes up to 3 hours to fully recharge the earbuds.
  • Page 11 60 minutes of battery. Fast charging the earbuds requires that the charging case has a minimum of 30% battery. You can see the current battery status of the earbuds using the Jabra Sound+ app.
  • Page 12 4.3 Charging the charging case using USB Plug the supplied USB-C charging cable into the charging case and a USB-A power supply or wall charger. It takes up to 3 hours to fully charge the earbuds and the charging case (depending on the charger used).
  • Page 13 4.4 Charging the charging case using a Qi-certifed wireless charging pad Place the charging case in the center of a Qi- certifed wireless charging pad. The LED on the charging case will flash to indicate the charging case is placed correctly. It takes up to 3 hours to fully charge the earbuds and the charging case.

  • Page 14: What The Leds Mean

    5. What the LEDs mean EARBUD STATUS High battery Power off Pairing Medium battery Resetting/ Low battery Firmware updating BATTERY STATUS WHEN OPENING CHARGING CASE High battery Medium battery Low battery Critically low battery (earbuds not charging)
  • Page 15 CHARGING CASE STATUS WHEN CONNECTED WITH USB CABLE High battery Medium battery Low battery Fully charged CHARGING CASE STATUS WITH WIRELESS CHARGING High battery Medium battery Low battery...

  • Page 16: How To Pair

    LED flashes blue. The earbuds will now be ready to pair with your phone. 3. Go to the Bluetooth settings on your phone and select the Jabra Elite 5 from the list of available devices to complete the pairing.
  • Page 17 6.2 Swift Pair with Windows computer 1. Power on the earbuds by removing them from the charging case. Alternatively, press the Left and Right buttons to power the earbuds on. 2. Press and hold (3 sec) the Left and Right buttons simultaneously until the earbud LED flashes blue.

  • Page 18: How To Use

    7. How to use 7.1 Power the earbuds on/off Place the earbuds in the charging case to power off. Remove the earbuds from the charging case to power on. To power off the earbuds manually, press both the Left and Right buttons simultaneously. To power off an earbud in mono mode, press and hold the button on the earbud for 5 seconds.

  • Page 19: Music Controls

    7.2 Music controls Left earbud Function Right earbud Press the Right Play/pause button when not music on a call Press and hold Volume up the Right button Press and hold the Volume down Left button Double-press the Right button Next track when listening to music Triple-press the...

  • Page 20: Call Controls

    7.3 Call controls Left earbud Function Right earbud Press the Left or Press the Left or Answer call Right button Right button Double-press Double-press the Left or Right End/reject call the Left or Right button button Press the Left or Mute/unmute Press the Left or Right button...
  • Page 21 Android device. Left button Voice assistant Double-press the Activate voice Left button when assistant not on a call The voice assistant can be changed and configured using Jabra Sound+. Changing voice assistant may change the headset controls.
  • Page 22 As a result, you experience a reduced level of surrounding noise during music and media playback. Left button Active Noise Cancellation Cycle between Press the Left HearThrough, ANC button when and Off not on a call ANC can be adjusted using Jabra Sound+.
  • Page 23 The microphones pick up surrounding sounds and transmit them to the speakers. Left button HearThrough Cycle between Press the Left HearThrough, ANC button when and Off not on a call HearThrough can be adjusted using the Jabra Sound+ app.
  • Page 24 7.7 Spotify Tap playback Spotify Tap playback enables you to control Spotify using the left earbud button. Spotify Tap playback is off by default, and can be enabled in Jabra Sound+. Left button Spotify Double-press the Resume last Left button when...
  • Page 25 Sidetone is on by default during calls and can be turned on/off using the Jabra Sound+ app. By default, Sidetone on/off cannot be controlled using the earbuds. However, it can be added to the earbuds using MyControls in the Jabra Sound+ app.
  • Page 26 7.9 Single earbud mode The right or left earbud can be used individually for music playback or for calls. To activate single earbud mode, place the unused earbud into the charging case. Left button Left earbud only Cycle between Press the Left button HearThrough, when listening to ANC, and Off...
  • Page 27 Right button Right earbud only Press the Right button Play/pause when listening to music music Answer call Press the Right button Double-press the End/reject call Right button Mute/unmute Press the Right button microphone when on a call Double-press the Next track Right button when listening to music Triple-press the Right...
  • Page 28 7.10 Auto-pause music When listening to music, removing an earbud from your ear will automatically pause the music. To resume the music, place the earbud back in your ear and press the Right button. 7.11 Auto-mute microphone When on a call, removing an earbud from your ear will automatically mute your microphone.
  • Page 29 7.12 MyControls MyControls is a feature in the Jabra Sound+ app that enables you to reassign the button controls, offering you the flexibility to configure the earbuds precisely to your personal preference. By default, the functions listed below cannot be controlled using the earbuds, however these functions can be added to the earbuds using MyControls in the Jabra Sound+ app.
  • Page 30 7.13 Sleep mode conserve battery, earbuds will automatically power off when they are out of range of your phone for 15 minutes and are not in the charging case, or when they have been inactive for 15 minutes. To power the earbuds on, press the Left and Right buttons.

  • Page 31: Update Firmware

    To pair with two phones, use the normal pairing process separately for each phone (refer to section 6). After pairing to both phones, you will need to select the Jabra Elite 5 again on the first mobile device in the Bluetooth settings to complete the multipoint pairing.
  • Page 32 7.17 Reset the earbuds Resetting the earbuds clears the list of paired devices and resets all settings. 1. Place both earbuds in the charging case. 2. Press and hold (10 sec) the Left and Right buttons on the earbuds simultaneously until the LEDs on the earbuds flash pink.

  • Page 33: Jabra Sound+ App

    8. Jabra Sound+ app Jabra Sound+ app Personalize your music Register your 2-year warranty...
  • Page 34 9. Support 9.1 FAQ View the FAQs on Jabra.com/help/elite5 9.2 How to care for your earbuds • Always store the earbuds in the charging case and safely protected. • To prevent the depletion of the battery lifetime or capacity, avoid storing the earbuds in hot or cold environments, such as a closed car in summer, or in winter conditions.

  • Page 35: Replacement Accessories

    9.3 Replacement accessories Replacement or additional accessories can be purchased online at jabra.com/accessories. Left and right earbud set Charging case EarGels USB-C charging cable...
  • Page 36 9.4 Using replacement earbuds 1. Pair the replacement earbuds to your mobile device (see section 6.1) 2. Update the earbud firmware using the Jabra Sound+ app. 9.5 Using a replacement charging case Before using a replacement charging case, it is...
