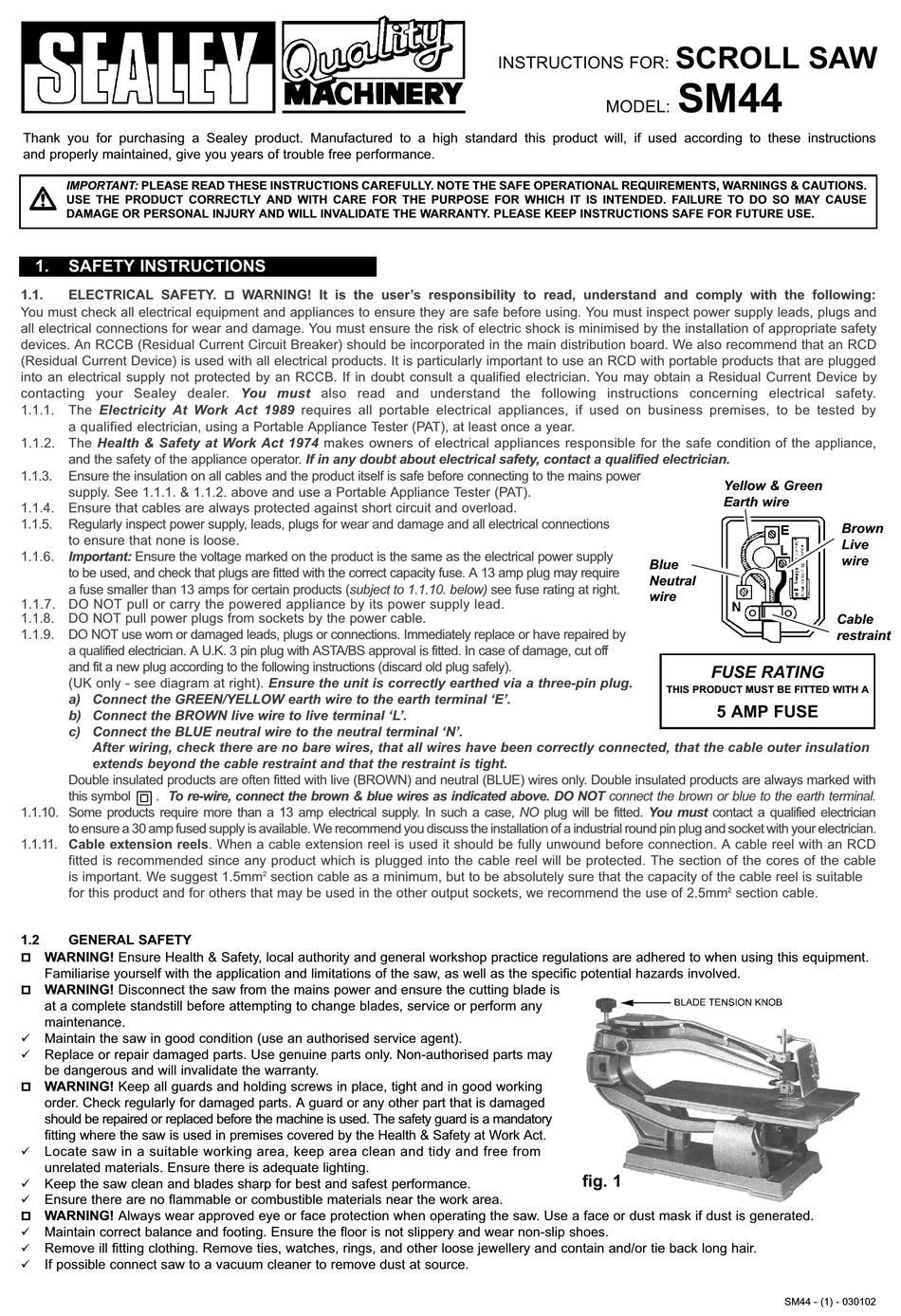

Sealey Quality MACHINERY SM44 Instructions

Thank you for purchasing a Sealey product. Manufactured to a high standard this product will, if used according to these instructions
and properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS.
USE THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE
DAMAGE OR PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. PLEASE KEEP INSTRUCTIONS SAFE FOR FUTURE USE.
1. SAFETY INSTRUCTIONS
1.1. ELECTRICAL SAFETY.
You must check all electrical equipment and appliances to ensure they are safe before using. You must inspect power supply leads, plugs and
all electrical connections for wear and damage. You must ensure the risk of electric shock is minimised by the installation of appropriate safety
devices. An RCCB (Residual Current Circuit Breaker) should be incorporated in the main distribution board. We also recommend that an RCD
(Residual Current Device) is used with all electrical products. It is particularly important to use an RCD with portable products that are plugged
into an electrical supply not protected by an RCCB. If in doubt consult a qualified electrician. You may obtain a Residual Current Device by
contacting your Sealey dealer. You must also read and understand the following instructions concerning electrical safety.
1.1.1. The Electricity At Work Act 1989 requires all portable electrical appliances, if used on business premises, to be tested by
a qualified electrician, using a Portable Appliance Tester (PAT), at least once a year.
1.1.2. The Health & Safety at Work Act 1974 makes owners of electrical appliances responsible for the safe condition of the appliance,
and the safety of the appliance operator. If in any doubt about electrical safety, contact a qualified electrician.
1.1.3. Ensure the insulation on all cables and the product itself is safe before connecting to the mains power
supply. See 1.1.1. & 1.1.2. above and use a Portable Appliance Tester (PAT).
1.1.4. Ensure that cables are always protected against short circuit and overload.
1.1.5. Regularly inspect power supply, leads, plugs for wear and damage and all electrical connections
to ensure that none is loose.
1.1.6. Important: Ensure the voltage marked on the product is the same as the electrical power supply
to be used, and check that plugs are fitted with the correct capacity fuse. A 13 amp plug may require
a fuse smaller than 13 amps for certain products (subject to 1.1.10. below) see fuse rating at right.
1.1.7. DO NOT pull or carry the powered appliance by its power supply lead.
1.1.8. DO NOT pull power plugs from sockets by the power cable.
1.1.9. DO NOT use worn or damaged leads, plugs or connections. Immediately replace or have repaired by
a qualified electrician. A U.K. 3 pin plug with ASTA/BS approval is fitted. In case of damage, cut off
and fit a new plug according to the following instructions (discard old plug safely).
(UK only - see diagram at right). Ensure the unit is correctly earthed via a three-pin plug.
a) Connect the GREEN/YELLOW earth wire to the earth terminal ‘E’.
b) Connect the BROWN live wire to live terminal ‘L’.
c) Connect the BLUE neutral wire to the neutral terminal ‘N’.
After wiring, check there are no bare wires, that all wires have been correctly connected, that the cable outer insulation
extends beyond the cable restraint and that the restraint is tight.
Double insulated products are often fitted with live (BROWN) and neutral (BLUE) wires only. Double insulated products are always marked with
this symbol . To re-wire, connect the brown & blue wires as indicated above. DO NOT connect the brown or blue to the earth terminal.
1.1.10. Some products require more than a 13 amp electrical supply. In such a case, NO plug will be fitted. You must contact a qualified electrician
to ensure a 30 amp fused supply is available. We recommend you discuss the installation of a industrial round pin plug and socket with your electrician.
1.1.11. Cable extension reels. When a cable extension reel is used it should be fully unwound before connection. A cable reel with an RCD
fitted is recommended since any product which is plugged into the cable reel will be protected. The section of the cores of the cable
is important. We suggest 1.5mm
for this product and for others that may be used in the other output sockets, we recommend the use of 2.5mm
1.2 GENERAL SAFETY
WARNING! Ensure Health & Safety, local authority and general workshop practice regulations are adhered to when using this equipment.
p
Familiarise yourself with the application and limitations of the saw, as well as the specific potential hazards involved.
WARNING! Disconnect the saw from the mains power and ensure the cutting blade is
p
at a complete standstill before attempting to change blades, service or perform any
maintenance.
Maintain the saw in good condition (use an authorised service agent).
ü
Replace or repair damaged parts. Use genuine parts only. Non-authorised parts may
ü
be dangerous and will invalidate the warranty.
WARNING! Keep all guards and holding screws in place, tight and in good working
p
order. Check regularly for damaged parts. A guard or any other part that is damaged
should be repaired or replaced before the machine is used. The safety guard is a mandatory
fitting where the saw is used in premises covered by the Health & Safety at Work Act.
Locate saw in a suitable working area, keep area clean and tidy and free from
ü
unrelated materials. Ensure there is adequate lighting.
Keep the saw clean and blades sharp for best and safest performance.
ü
Ensure there are no flammable or combustible materials near the work area.
ü
WARNING! Always wear approved eye or face protection when operating the saw. Use a face or dust mask if dust is generated.
p
Maintain correct balance and footing. Ensure the floor is not slippery and wear non-slip shoes.
ü
Remove ill fitting clothing. Remove ties, watches, rings, and other loose jewellery and contain and/or tie back long hair.
ü
If possible connect saw to a vacuum cleaner to remove dust at source.
ü
WARNING! It is the user’s responsibility to read, understand and comply with the following:
p
section cable as a minimum, but to be absolutely sure that the capacity of the cable reel is suitable
2
INSTRUCTIONS FOR:
MODEL:
Blue
Neutral
wire
THIS PRODUCT MUST BE FITTED WITH A
fig. 1
SCROLL SAW
SM44
Yellow & Green
Earth wire
Brown
Live
wire
Cable
restraint
FUSE RATING
5 AMP FUSE
section cable.
2
SM44 - (1) - 030102
