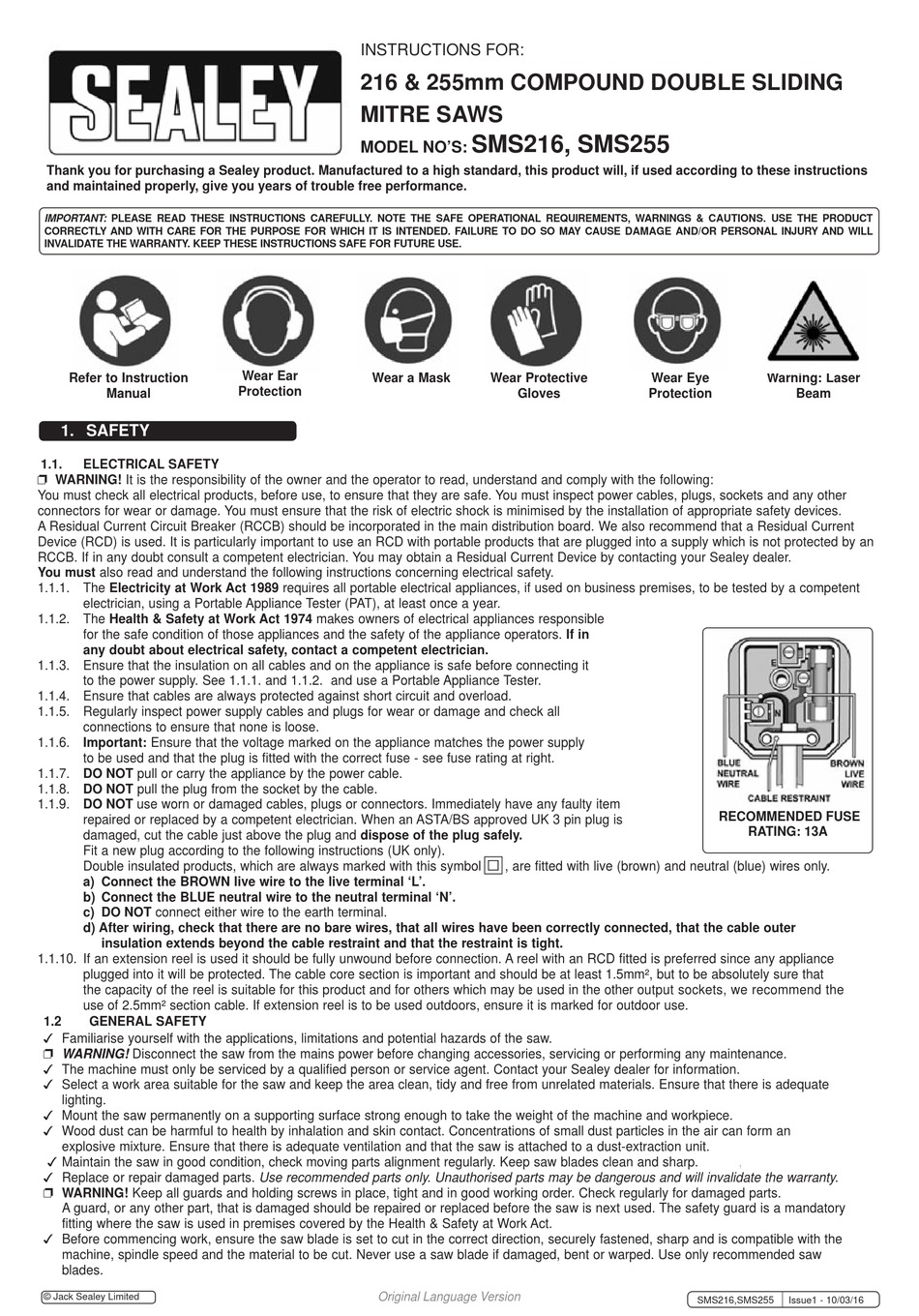

Sealey SMS216 Instructions Manual

Thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these instructions
and maintained properly, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE THE PRODUCT
CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR PERSONAL INJURY AND WILL
INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.
Refer to Instruction
Manual
1. SAFETY
1.1. ELECTRICAL SAFETY
 WARNING! It is the responsibility of the owner and the operator to read, understand and comply with the following:
You must check all electrical products, before use, to ensure that they are safe. You must inspect power cables, plugs, sockets and any other
connectors for wear or damage. You must ensure that the risk of electric shock is minimised by the installation of appropriate safety devices.
A Residual Current Circuit Breaker (RCCB) should be incorporated in the main distribution board. We also recommend that a Residual Current
Device (RCD) is used. It is particularly important to use an RCD with portable products that are plugged into a supply which is not protected by an
RCCB. If in any doubt consult a competent electrician. You may obtain a Residual Current Device by contacting your Sealey dealer.
You must also read and understand the following instructions concerning electrical safety.
1.1.1. The Electricity at Work Act 1989 requires all portable electrical appliances, if used on business premises, to be tested by a competent
electrician, using a Portable Appliance Tester (PAT), at least once a year.
1.1.2. The Health & Safety at Work Act 1974 makes owners of electrical appliances responsible
for the safe condition of those appliances and the safety of the appliance operators. If in
any doubt about electrical safety, contact a competent electrician.
1.1.3. Ensure that the insulation on all cables and on the appliance is safe before connecting it
to the power supply. See 1.1.1. and 1.1.2. and use a Portable Appliance Tester.
1.1.4. Ensure that cables are always protected against short circuit and overload.
1.1.5. Regularly inspect power supply cables and plugs for wear or damage and check all
connections to ensure that none is loose.
1.1.6. Important: Ensure that the voltage marked on the appliance matches the power supply
to be used and that the plug is fitted with the correct fuse - see fuse rating at right.
1.1.7. DO NOT pull or carry the appliance by the power cable.
1.1.8. DO NOT pull the plug from the socket by the cable.
1.1.9. DO NOT use worn or damaged cables, plugs or connectors. Immediately have any faulty item
repaired or replaced by a competent electrician. When an ASTA/BS approved UK 3 pin plug is
damaged, cut the cable just above the plug and dispose of the plug safely.
Fit a new plug according to the following instructions (UK only).
Double insulated products, which are always marked with this symbol
a) Connect the BROWN live wire to the live terminal 'L'.
b) Connect the BLUE neutral wire to the neutral terminal 'N'.
c) DO NOT connect either wire to the earth terminal.
d) After wiring, check that there are no bare wires, that all wires have been correctly connected, that the cable outer
insulation extends beyond the cable restraint and that the restraint is tight.
1.1.10. If an extension reel is used it should be fully unwound before connection. A reel with an RCD fitted is preferred since any appliance
plugged into it will be protected. The cable core section is important and should be at least 1.5mm², but to be absolutely sure that
the capacity of the reel is suitable for this product and for others which may be used in the other output sockets, we recommend the
use of 2.5mm² section cable. If extension reel is to be used outdoors, ensure it is marked for outdoor use.
1.2 GENERAL SAFETY
 Familiarise yourself with the applications, limitations and potential hazards of the saw.
 WARNING! Disconnect the saw from the mains power before changing accessories, servicing or performing any maintenance.
 The machine must only be serviced by a qualified person or service agent. Contact your Sealey dealer for information.
 Select a work area suitable for the saw and keep the area clean, tidy and free from unrelated materials. Ensure that there is adequate
lighting.
 Mount the saw permanently on a supporting surface strong enough to take the weight of the machine and workpiece.
 Wood dust can be harmful to health by inhalation and skin contact. Concentrations of small dust particles in the air can form an
explosive mixture. Ensure that there is adequate ventilation and that the saw is attached to a dust-extraction unit.
 Maintain the saw in good condition, check moving parts alignment regularly. Keep saw blades clean and sharp.
 Replace or repair damaged parts. Use recommended parts only. Unauthorised parts may be dangerous and will invalidate the warranty.
 WARNING! Keep all guards and holding screws in place, tight and in good working order. Check regularly for damaged parts.
A guard, or any other part, that is damaged should be repaired or replaced before the saw is next used. The safety guard is a mandatory
fitting where the saw is used in premises covered by the Health & Safety at Work Act.
 Before commencing work, ensure the saw blade is set to cut in the correct direction, securely fastened, sharp and is compatible with the
machine, spindle speed and the material to be cut. Never use a saw blade if damaged, bent or warped. Use only recommended saw
blades.
© Jack Sealey Limited
INSTRUCTIONS FOR:
216 & 255mm COMPOUND DOUBLE SLIDING
MITRE SAWS
MODEL NO'S:
Wear Ear
Wear a Mask
Protection
Original Language Version
SMS216, SMS255
Wear Protective
Gloves
, are fitted with live (brown) and neutral (blue) wires only.
Wear Eye Warning: Laser
Protection Beam
RECOMMENDED FUSE
RATING: 13A
,
SMS216,SMS255 Issue1 - 10/03/16
