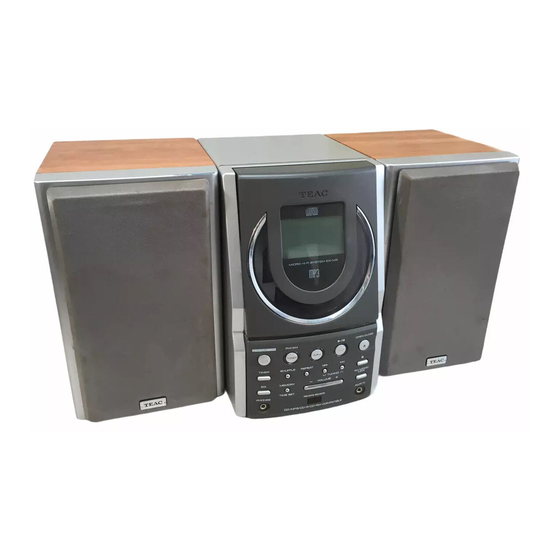

Teac EX-M5 Owner's Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

9A10229400
Z
EX - M5
Micro Hi-Fi System
OWNER'S MANUAL

Advertisement

Table of Contents
loading

Related Manuals for Teac EX-M5

Summary of Contents for Teac EX-M5

  • Page 1 9A10229400 EX - M5 Micro Hi-Fi System OWNER’S MANUAL...
  • Page 2 The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK).
  • Page 3 ARE WITHIN! For U.S.A. < IF YOU ARE EXPERIENCING PROBLEMS WITH THIS PRODUCT, CONTACT TEAC FOR A SERVICE REFERRAL. DO NOT USE THE PRODUCT UNTIL IT HAS BEEN REPAIRED. < USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.

  • Page 4: Table Of Contents

    Contents Before Using the Unit Thank you for choosing TEAC. Read this manual carefully Read this before attempting any operations to get the best performance from this unit. < As the unit may become warm during operation, always leave sufficient space around the unit for ventilation.

  • Page 5: Discs

    CD standard may not play back correctly in this player. If you use such discs in this unit, TEAC Corporation and its < Never use a stabilizer. Using commercially available CD...

  • Page 6: Battery Installation

    Battery Installation Battery Installation Battery Replacement If the distance required between the remote control unit and 1. Remove the battery compartment cover. main unit decreases, the batteries are weak. If this is the case, replace the batteries with fresh ones. 2.

  • Page 7: Connections

    Connections CAUTION: < Switch off the power to all equipment before making connections. < Read the instructions of each component you intend to use with this unit. < Be sure to insert each plug securely. To prevent hum and noise, avoid bundling the signal interconnection cables together with the AC power cord.

  • Page 8: Unit Functions

    Unit Functions STANDBY/ON EQ (Equalizer) Use this button to turn the unit on or standby. This button offers Classic, Rock, Pop, Jazz and PASS modes. The equipment draws a nominal amount of power from the MEMORY/TIME SET AC outlet even with its STANDBY/ON switch in the STANDBY position.
  • Page 9 < If the remote control unit is operated near other appliances sound from your EX-M5. which generate infrared rays, or if other remote control devices using infrared rays are used near the unit, it may Remote sensor operate incorrectly.

  • Page 10: Basic Operation

    Basic Operation EQ (Equalizer) When the EQ button is pressed once, the current EQ mode is displayed. Press the EQ button repeatedly to select any other mode. Press the STANDBY/ON switch to turn the unit on. CLASSIC: A balanced sound; suitable for classical music. ROCK: Provides a heavy powerful sound;...

  • Page 11: Listening To Cd/Mp3

    Listening to CD/MP3 (1) Press the OPEN/CLOSE button to close the CD door. CD PLAY/PAUSE < It takes a few seconds for the unit to load the disc. No OPEN/CLOSE buttons will work during loading. Wait until the total number of the tracks and the total play time of the disc are displayed.
  • Page 12 Listening to CD/MP3 (2) To suspend playback temporarily To skip to the next or a previous track (pause mode) During playback, press the skip button (. or/ ) Press the Play/Pause button (G/J) during playback. Playback repeatedly until the desired track is found. The selected track stops at the current position and the time display blinks.

  • Page 13: Repeat Playback

    Repeat Playback Skip to the next folder (MP3) Press the MP3 FOLDER button to skip to next folder. Each time the REPEAT button is pressed, the mode is changed as follows: To display the MP3 information When a CD is loaded. REPEAT REPEAT ALL (off)

  • Page 14: Programmed Playback

    Programmed Playback CD PLAY/PAUSE STOP MEMORY SKIP Up to 64 tracks can be programmed in the desired order. Press the Skip button (.or/) repeatedly to select a track, then press the MEMORY button. Shuffle and Repeat functions don’t work during programmed The track is programmed, and “P-02”...

  • Page 15: Shuffle Playback

    Shuffle Playback To check the programmed order In the stop mode, press the MEMORY button repeatedly. The track number and program number will be shown on the display. The tracks can be played randomly. Press the SHUFFLE button To add a track to the end of the program during playback or when in the stop mode.

  • Page 16: Search Mode (Mp3 Only)

    Search Mode (MP3 only) Press the PLAY/PAUSE button (G/J). Playback starts from the selected track. CD PLAY/PAUSE SKIP Search for a name of track Search for a track in a folder You can select the track by searching for its name. Press the MP3 button twice.

  • Page 17: Listening To The Radio

    Listening to the Radio If the reception is poor AM broadcast Rotate or relocate the unit to find the best position for AM stations. TUNER FM broadcast FM/AM Extend and rotate the FM antenna until you receive the stations clearly. You may need to relocate the unit. SKIP Press the TUNER (FM/AM) button.

  • Page 18: Preset Tuning

    Preset Tuning You can store FM and AM stations into preset channels 1 to 10 How to select preset stations respectively. Press the FM/AM button to select a band. Tune in a station you want to listen to (see steps of page 17).

  • Page 19: Setting The Clock

    Setting the Clock Press the SKIP button (.//) to set the current hour. SKIP TIME SET If the unit is on, press the STANDBY/ON switch to turn it off. Press the TIME SET button. The “minute” value blinks. Press and hold down the TIME SET button. “12 HOUR”...

  • Page 20: Timer

    Timer Press the SKIP button (.//) to set the start time (minute), and then press the TIMER button. TIMER SKIP “TIMER” and “OFF” indicators appear on the display and the “hour” value starts flashing. < The unit can be programmed to turn on and off at a specified time.
  • Page 21 To turn on or off the timer Press the SKIP button (.//) to set the volume, and then press the TIMER button. Setting the timer is now completed and the timer is turned on. Your timer setting is displayed one by one, and the TIMER indicator lights on the display.

  • Page 22: Sleep Timer

    SPEAKER portable audio player to the AUX IN jack of the EX-M5 Type ........2-way using the supplied stereo mini plug cable.

  • Page 23: Troubleshooting

    Cannot listen to any station, or signal is too weak. dealer or TEAC service center. e Tune in the station properly. e Rotate the FM antenna (or the main unit) for the best reception position.
  • Page 24 7733 Telegraph Road, Montebello, California 90640 Phone: (323) 726-0303 TEAC CANADA LTD. 5939 Wallace Street, Mississauga, Ontario L4Z 1Z8, Canada Phone: (905) 890-8008 TEAC MEXICO, S.A. De C.V Campesinos N°184, Colonia Granjas Esmeralda, Delegacion Iztapalapa, CP 09810, México DF Phone: (525) 581-5500 TEAC UK LIMITED 5 Marlin House, Croxley Business Park, Watford, Hertfordshire, WD18 8TE, U.K.
