2. CONTROLS, INDICATORS AND CONNECTORS

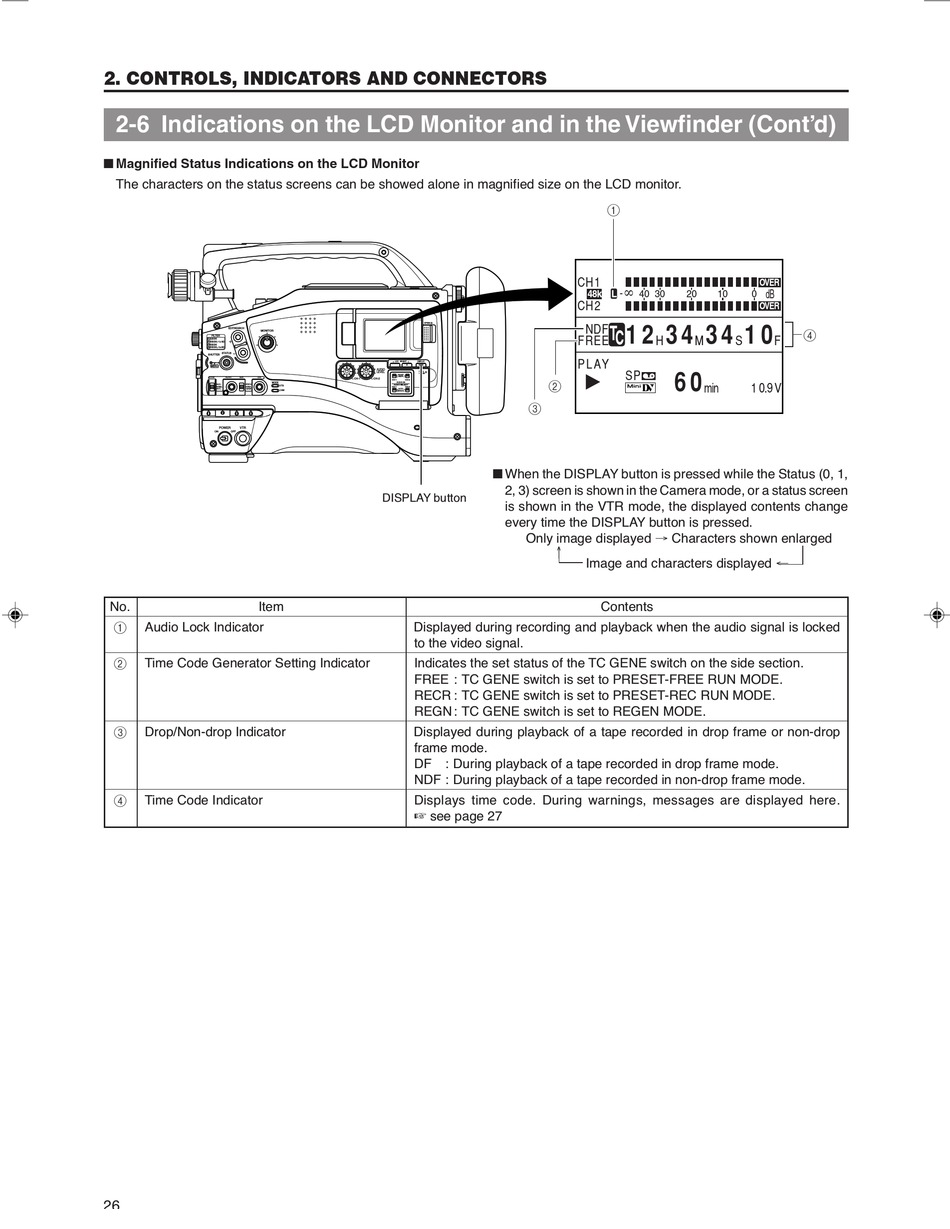

2-6 Indications on the LCD Monitor and in the Viewfinder (Cont'd)
■ Magnified Status Indications on the LCD Monitor
The characters on the status screens can be showed alone in magnified size on the LCD monitor.
EDITSEARCH
MONITOR
FILTER
1
3200K
2
5600K
1 8
/
ND
.3
5600K
.4
5600K
1 64
/ ND
STATUS
SHUTTER
MENU
AUTO IRIS
FULL AUTO
BLACK
LOLUX
BACK L
STRETCH
NORMAL
NORMAL
SPOT L
COMPRESS
POWER
VTR
ON
OFF
No.
Item
1
Audio Lock Indicator
2
Time Code Generator Setting Indicator
3
Drop/Non-drop Indicator
4
Time Code Indicator
26
OPEN
LCD BRIGHT
DISPLAY
AUDIO
PULL
LEVEL
OPEN
FRONT
REAR
CH-1
CH-2
CH-1
CH-2
MODE
AUDIO IN
AUDIO SELECT
VTR
CH-1
CH-2
AUTO
CAM
MANUAL
DISPLAY button
Displayed during recording and playback when the audio signal is locked
to the video signal.
Indicates the set status of the TC GENE switch on the side section.
FREE : TC GENE switch is set to PRESET-FREE RUN MODE.
RECR : TC GENE switch is set to PRESET-REC RUN MODE.
REGN : TC GENE switch is set to REGEN MODE.
Displayed during playback of a tape recorded in drop frame or non-drop
frame mode.
DF : During playback of a tape recorded in drop frame mode.
NDF : During playback of a tape recorded in non-drop frame mode.
Displays time code. During warnings, messages are displayed here.
☞ see page 27
1
CH1
∞
-
48k
L
40
CH2
NDF
12 34 34 10
T C
FREE
PLAY
SP
2
3
■ When the DISPLAY button is pressed while the Status (0, 1,
2, 3) screen is shown in the Camera mode, or a status screen
is shown in the VTR mode, the displayed contents change
every time the DISPLAY button is pressed.
Only image displayed → Characters shown enlarged
↑
Image and characters displayed ←
Contents
OVER
dB
30
20
10
0
OVER
4
H
M
S
F
60
min
109V
.
