Summary of Contents for Clarion DXZ746MP

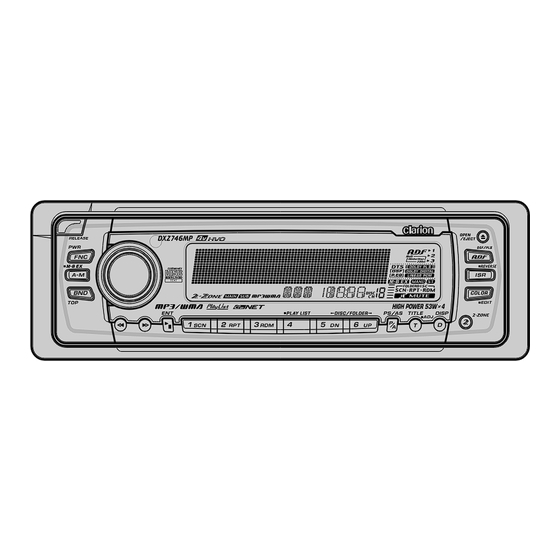

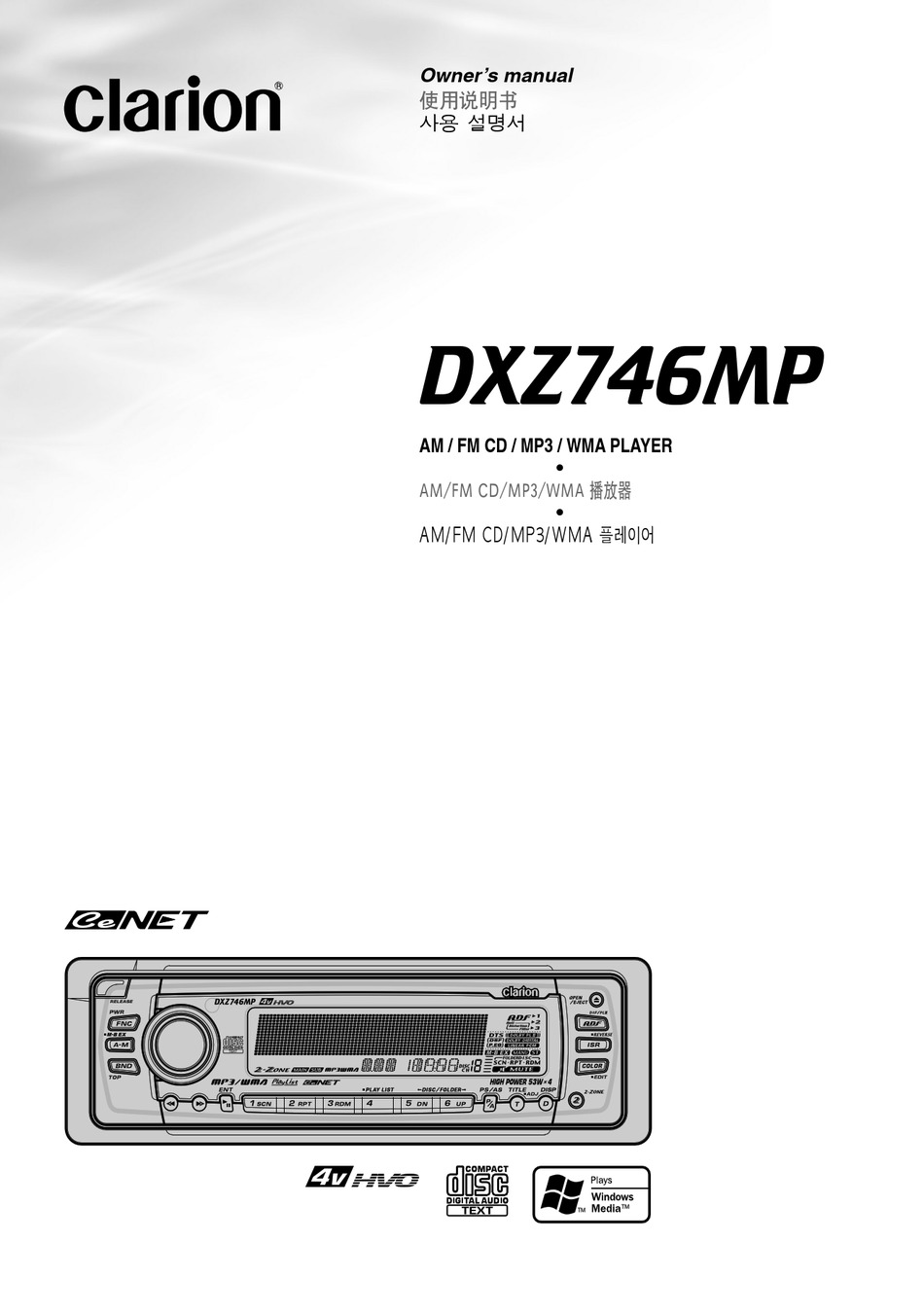

  • Page 1 Owner’s manual !" 사용 설명서 DXZ746MP AM / FM CD / MP3 / WMA PLAYER • • AM/FM CD/MP3/WMA 플레이어...

  • Page 2: Table Of Contents

    Thank you for purchasing this Clarion product. ∗ Please read this owner’s manual in its entirety before operating this equipment. ∗ After reading this manual, be sure to keep it in a handy place (e.g., glove compartment). ∗ Check the contents of the enclosed warranty card and keep it carefully with this manual.

  • Page 3: Precautions

    If you try to play such a compact disc, you may not be able to get it back out of the CD player or it may damage the CD player. ! " # $ % & ' ( ! "...

  • Page 4: Controls

    Note: Be sure to unfold this page and refer to the front diagrams as you read each chapter. 注意：请务必打开此页，并在阅读每一章节时参照上面的正视图。 주 : 이 페이지를 펼쳐두고 , 각 장을 읽을 때 전면 그림을 참조하십시오 . DXZ746MP 4. NOMENCLATURE Note: • Be sure to read this chapter referring to the front diagrams of chapter “3. CONTROLS” on page 5 (unfold).

  • Page 5: Dcp

    • The connector connecting the unit and the DCP is an extremely important part. Be careful not to damage it by pressing on it with fingernails, screwdrivers, etc. Note: • If the DCP is dirty, wipe off the dirt with a soft, dry cloth only. DXZ746MP...

  • Page 6: Remote Control

    • Do not short-circuit, disassemble or heat batteries. • Do not dispose of batteries into fire or flames. • Dispose of spent batteries properly. DXZ746MP Receiver for remote control unit Operating range: 30˚ in all directions Signal transmitter...

  • Page 7: Functions Of Remote Control Unit Buttons

    Disc random play. folder random play while in the MP3/WMA mode. Switches reception band. Moves preset channels up and down. No function. Preset scan. When pressed and held for 2 seconds: Auto store. No function. Switches between TV and VTR. DXZ746MP...

  • Page 8: Operations

    ➜ AUX mode ➜ Radio mode... ∗ External equipment not connected with CeNET is not displayed. DXZ746MP Note:Be sure to read this chapter referring to the front diagrams of chapter “3. CONTROLS” on page 5 (unfold). Adjusting the volume 1.

  • Page 9: Basic Operations

    –6 to 8 (The factory default setting is “0”) factory default setting is “50”) 1/1.25/1.5/2 (The factory default setting is “1”) ”. Î ” ➜ “TREB GAIN FREQ Å Î Å GAIN ”... Å Î setting is “0”) default setting is “12K”) DXZ746MP ” Î...

  • Page 10: Radio Operations

    2. Press and hold the [A-M] button for 1 second or longer to turn off the MAGNA BASS EX- TEND effect. “M-B EX” goes off from the dis- play. DXZ746MP Radio Operations Listening to the radio 1. Press the [FNC] button and select the radio mode.
  • Page 11 ●Recalling a station with ISR In any mode, press the [ISR] button to turn on the radio function and tune the selected radio station. “ISR” appears in the display. Press the [ISR] button again to return to the previous mode. DXZ746MP...

  • Page 12: Features

    If you add a file extension other than specified or forget to add the file exten- sion , the file cannot be played. DXZ746MP 2. Files without MP3/WMA data will not play. The indication “– –:– –” appears in the play time display if you attempt to play files with- out MP3/WMA data.
  • Page 13 CD in the mechanism or the unit may require service. • Discs not bearing the CD-ROMs cannot be played by this unit. • Some CDs recorded in CD-R/CD-RW mode may not be usable. CD/MP3/WMA Operations CD/MP3/WMA (CD changer) (DVD changer) (TV) CAUTION mark and DXZ746MP...

  • Page 14: Pausing Play

    • In the case of album Tags for WMA, the informa- tion written into the extension header is displayed. • Only ASCII characters can be displayed in Tags. DXZ746MP Selecting a track ●Track-up 1. Press the [d] button to move ahead to the beginning of the next track.

  • Page 15: Repeat Play

    2. To select a track, press the [a] or [d] but- ton. Top function The top function resets the CD player to the first track of the disc. Press the [BND] button to play the first track (track No. 1) on the disc.
  • Page 16 The file format must be M3U. 3. Again, write this play list to the CD-R/RW, etc. DXZ746MP Notes: • When writing to a CD-R/RW, etc., be sure to use alphanumeric/ASCII characters. • Up to 5 layers can be recognized as a list. For written play lists, latest 5 lists are recognized in the order in which they are written.

  • Page 17: Different Pieces Of Music Heard By Plural Listeners (2-Zone Function)

    Press and hold the [ISR] button for 1 second or longer to counterchange the sources of the MAIN and SUB zones. “REVERSE” is displayed for 2 seconds on the display. SUB zone Radio playback Radio playback External equipment (CD changer) Radio playback DXZ746MP...

  • Page 18: Operations Common To Each Mode

    Message up to 30 characters long can be stored in memory and displayed for CD, CD changer and TV stations. ∗ The factory default setting is “Welcome to Clarion”. 1. Press and hold the [T] button for 1 second or longer to switch to the adjustment selection display.

  • Page 19: Adjusting The Display Contrast

    Å Î 3. Turn the [ROTARY] knob clockwise or coun- terclockwise and select “ON” or “OFF”. ● ON: Use with connected AMP. ● OFF: Use with inside AMP. 4. Press the [T] button to return to the previous mode. DXZ746MP...

  • Page 20: Setting The Clock

    This unit requires special wiring to mute the au- dio signal automatically when a cellular tele- phone rings in the car. ∗ This function is not compatible with all cellular telepones Contact your local authorized Clarion dealer for information on proper installation and compatibility. Setting the clock 1.

  • Page 21: Entering Titles

    50 titles 4. Press the [BND] button. 20 titles 5. Press and hold the [ 30 titles ond or longer to clear the title and cancel title input mode. 100 titles 100 titles 50 titles ] button for 2 sec- DXZ746MP...

  • Page 22: Operations Of Accessories

    1. Press the [D] button to display the title. 2. Each time you press and hold the [D] button for 1 second or longer, the title display changes in the following order: DXZ746MP User title(disc) (None) Artist name CD-text title (track)
  • Page 23 “DISC” and “RDM” light in the display and disc random play starts. 2. To cancel disc random play, press the [RDM] button again. “DISC” and “RDM” go off from the display and normal play resumes from the current track. DXZ746MP...

  • Page 24: Tv Operations

    Press the [d] button to automatically tune up the frequency band to the next available TV station; press the [a] button to automatically tune down. DXZ746MP Manual tuning There are 2 ways available: Quick tuning and step tuning.

  • Page 25: Setting The Tv Diver

    3. Turn the [ROTARY] knob clockwise to set to “ON” or counterclockwise to set to “OFF”. ● ON: Sets reception emphasizing the visual. ● OFF: Sets the diver setting to OFF. 4. Press the [T] button to return to the previous mode. DXZ746MP...

  • Page 26: Connect With 5.1Ch Surround Decorder (Dvh920/Dvh940)

    ∗ Connect properly in accordance withcolor of connectors Set the 5.1ch surround decoder’s [STAND-ALONE / SLAVE] switch tothe [STAND-ALONE] position. SLAVE DXZ746MP TV MONITOR ∗ Refer to the OWNER’S MANUAL of DVH920. Connect to 4ch power amplifier Connect to powered...
  • Page 27 Connect to 4ch power amplifier Connect to powered center speaker Connect to powered sub-woofer RCA pin cable (furnished with DVH940) ANALOG INPUT STAND ALONE BB TV Tuner ( TTX75 0 1z /TTX7502z / T TX7504z) 1-DIN Center Unit (DXZ746MP) DXZ746MP...

  • Page 28: In Case Of Difficulty

    Noise is generated or noise is mixed with sound. DXZ746MP Cause Replace with a fuse of the same amperage. If the fuse blows again, consult your store of purchase. Consult your store of purchase. 1. Turn the unit off.
  • Page 29 Measure Let dry for about 1 hour with the power on. Use ISO9660 level 1, 2 or JOLIET or Romeo file system. Use alphanumeric/ASCII characters for MP3/WMA file name. Use “.M3U” for the file extension of a play list. DXZ746MP...

  • Page 30: Error Displays

    If an error display other than the ones described above appears, press the reset button. If the problem persists, turn off the power and consult your store of purchase. DXZ746MP Cause This is a failure of CD deck’s mechanism and consult your store of purchase.

  • Page 31: Specifications

    7" (Width) ✕ 2" (Height) ✕ 6-1/8" (Depth) [178 (W) ✕ 50 (H) ✕ 155 (D) mm] Dimensions / Remote control unit: 1-3/4" (Width) ✕ 4-5/16" (Height) ✕ 1-1/8" (Depth) [44 (W) ✕ 110 (H) ✕ 27 (D) mm] DXZ746MP...
  • Page 32 DXZ746MP...
