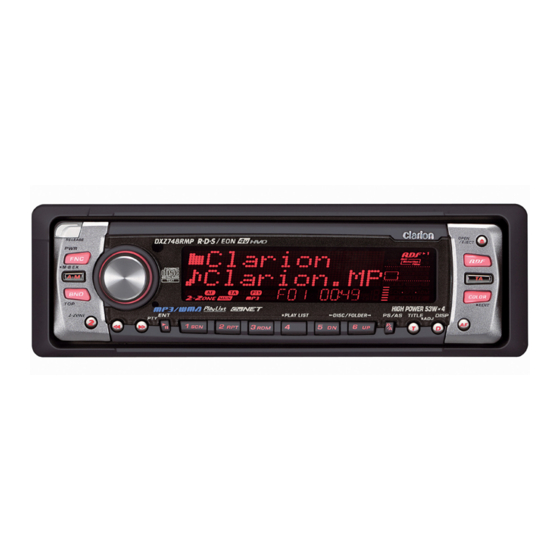

Clarion owner's manual rds-eon fm / mw / lw radio cd / mp3 / wma combination dxz748rmp
Hide thumbs
Table of Contents

Advertisement

Quick Links

Owner's manual /
Mode d'emploi
Bedienungsanleitung /
Gebruiksaanwijzing /
Bruksanvisning /
Manual de instruções
DXZ748RMP
RDS-EON FM / MW / LW RADIO CD / MP3 / WMA
COMBINATION
COMBINE RADIO FM/PO/GO RDS-EON-LECTEUR DE CD/
MP3/WMA
RDS-EON UKW/MW/LW RADIO CD/MP3/WMA
KOMBINATION
COMBINAZIONE DI RADIO RDS-EON FM/MW/LW E
LETTORE CD/MP3/WMA
RDS-EON FM/MW/LW RADIO CD/MP3/WMA COMBINATIE
COMBINACIÓN DE RADIO RDS-EON DE FM/MW/LW Y
REPRODUCTOR DE CD/MP3/WMA
KOMBINERAD FM/MV/LV-RADIO MED RDS-EON OCH CD/
MP3/WMA-SPELARE
COMBINAÇÃO DE CD/MP3/WMA COM RÁDIO FM/MW/LW
RDS-EON
Istruzioni per l'uso
Manual de instrucciones
•
•
•
•
•
•
•

Advertisement

Table of Contents
loading

Related Manuals for Clarion DXZ748RMP

Summary of Contents for Clarion DXZ748RMP

  • Page 1 Mode d’emploi Bedienungsanleitung / Istruzioni per l’uso Gebruiksaanwijzing / Manual de instrucciones Bruksanvisning / Manual de instruções DXZ748RMP RDS-EON FM / MW / LW RADIO CD / MP3 / WMA COMBINATION • COMBINE RADIO FM/PO/GO RDS-EON-LECTEUR DE CD/ MP3/WMA •...

  • Page 2: Controls

    Thank you for purchasing this Clarion product. ∗ Please read this owner’s manual in its entirety before operating this equipment. ∗ After reading this manual, be sure to keep it in a handy place (e.g., glove compartment). ∗ Check the contents of the enclosed warranty card and keep it carefully with this manual.

  • Page 3: Table Of Contents

    LCD Screen In extreme cold, the screen movement may slow down and the screen may darken, but this is normal. The screen will recover when it returns to normal temperature. DXZ748RMP Contents 1. PRECAUTIONS ... 3 Sloping Console ... 3 Handling Compact Discs ...

  • Page 4: Nomenclature

    Observera: Vik ut denna sida för att kunna se figurerna över bilstereons framsida medan du läser de olika kapitlen. Nota: Certifique-se de abrir esta página e consulte os diagramas frontais conforme realiza a leitura de cada capítulo. DXZ748RMP 3. NOMENCLATURE Note: •...

  • Page 5: Dcp

    • The connector connecting the unit and the DCP is an extremely important part. Be careful not to damage it by pressing on it with fingernails, screwdrivers, etc. Note: • If the DCP is dirty, wipe off the dirt with a soft, dry cloth only. DXZ748RMP...

  • Page 6: Remote Control

    • Do not short-circuit, disassemble or heat batteries. • Do not dispose of batteries into fire or flames. • Dispose of spent batteries properly. DXZ748RMP Receiver for remote control unit Operating range: 30˚ in all directions Signal transmitter...

  • Page 7: Functions Of Remote Control Unit Buttons

    MP3/WMA mode. Switches reception band. Moves preset channels up and down. No function. Preset scan. When pressed and held for 2 seconds or longer: Auto store. No function. Switches between TV and VTR. DXZ748RMP...

  • Page 8: Operations

    ∗ External equipment not connected with CeNET is not displayed. ∗ If AUX is set in AUX/TEL, AUX mode can be selected. DXZ748RMP Note:Be sure to read this chapter referring to the front diagrams of chapter “2. CONTROLS” on page 5 (unfold). Adjusting the volume 1.
  • Page 9 –6 to 8 (The factory default setting is “0”) factory default setting is “50”) 1/1.25/1.5/2 (The factory default setting is “1”) ”. Î ” ➜ “TREB GAIN FREQ Å Î Å GAIN ”... Å Î setting is “0”) default setting is “12K”) DXZ748RMP ” Î...

  • Page 10: Radio Operations

    • CT data is not transmitted in some countries and by some broadcast stations. Also, in some areas, the CT may not display accurately. DXZ748RMP Radio Operations Listening to the radio 1. Press the [FNC] button and select the radio mode.

  • Page 11: Radio Operations

    2. When a desired station is tuned in, press the [P/A] button again to continue receiving that station. Note: • Be careful not to press and hold the [P/A] button for 2 seconds or longer, otherwise the auto store function is engaged and the unit starts storing stations. DXZ748RMP...

  • Page 12: Rds Operations

    ∗ This function only operates when the DAH913 or DAH923 DAB unit, sold separately, is connected. DXZ748RMP ∗ This factory default setting is “ON”. 1. Press and hold the [T] button for 1 second or longer to switch to the adjustment selection display.
  • Page 13 3. The PTY select mode is cancelled automati- cally 7 seconds after a PTY is selected. PTY item Preset number ENGLISH Contents News News Info Information Pop M Pop Music Sport Sport Classics Serious Classical Music Easy M Easy Listening Music DXZ748RMP ] button for 1...
  • Page 14 Oldies Oldies Folk M Folklore Document Feature DXZ748RMP PTY preset memory 1. When you press the [ select mode is turned on. 2. Turn the [ROTARY] knob clockwise or coun- terclockwise to select the desired PTY. The 29 types of PTY below can be selected.
  • Page 15 [ROTARY] knob clockwise or counterclockwise to set the volume to the desired level (0 to 33). ∗ When the TA, ALARM or PTY interrupt ends, the volume returns to the level it had before the inter- rupt. RDS Operations DXZ748RMP...

  • Page 16: Cd/Mp3/Wma Operations

    2. Files without MP3/WMA data will not play. DXZ748RMP The indication “– –:– –” appears in the play time display if you attempt to play files with- out MP3/WMA data.

  • Page 17: Sloping Console

    Pausing play 1. Press the [ “PAUSE” appears in the display. 2. To resume CD play, press the [ again. CD/MP3/WMA Operations CD/MP3/WMA (DAB) (CD changer) (TV) (DVD changer) mark and CAUTION ] button to pause play. ] button DXZ748RMP...
  • Page 18 Fast-forward/fast-backward ●Fast-forward Press and hold the [d] button for 1 second or longer. DXZ748RMP ● Fast-backward Press and hold the [a] button for 1 second or longer. ∗ For MP3/WMA discs, it takes some time until the start of searching and between tracks.

  • Page 19: Scan Play

    2. To cancel folder random play, press the [RDM] button again. The play status indications such as “FOLDER” and “RDM” disappear from the display and normal play resumes from the track currently being played. DXZ748RMP...

  • Page 20: Different Pieces Of Music Heard By Plural Listeners (2-Zone Function)

    • When writing to a CD-R/RW, etc., turn off the Disc At Once function. • When adding a play list, it is recommended to write it in the “Root” folder. DXZ748RMP Different pieces of music heard by plural listeners (2-ZONE function)
  • Page 21 Press and hold the [TA] button for 1 second or longer to counterchange the sources of the MAIN and SUB zones. “REVERSE” is displayed for 2 seconds on the dis- play. DXZ748RMP SUB zone Radio playback Radio playback External equipment (CD...

  • Page 22: Operations Common To Each Mode

    Capital letters ➜ Small letters ➜ Numbers/ Symbols ➜ Umlaut ➜ Capital letters... DXZ748RMP 6. Turn the [ROTARY] knob to select the de- sired character. 7. Repeat step 4 to 6 to enter up to 30 charac- ters for message.
  • Page 23 Î Î Î 3. Turn the [ROTARY] knob clockwise or coun- terclockwise and select “ON” or “OFF”. ● ON: Use with connected AMP. ● OFF: Use with inside AMP. 4. Press the [T] button to return to the previous mode. DXZ748RMP...
  • Page 24 “AUX” or “TEL”. ● AUX : AUX/TEL input cable is for external Audio input. DXZ748RMP ● TEL : AUX/TEL input cable is for cellular phone au- dio input. ∗ If 2-ZONE is set on, mode can automatically change to AUX.
  • Page 25 “SUCCESSFUL”, or if calibration is not suc- cessful display indicate “FAILED”. 7. If you failed, repeat steps 3 to 6. 8. Press the [T] button to return to the previous mode. DXZ748RMP 8” Î Î Î Î Î Î Î Î...
  • Page 26 • When installing this device or transferring it into another vehicle, for the sake of safety, always have this work done by the store of purchase or your nearest Clarion dealer. Installation requires specialized techniques and experience. Setting auto volume sensitivity 1.

  • Page 27: Operations Of Accessories

    Press the [DN] or [UP] button to select the de- sired disc. ∗ If a CD is not loaded in a slot of magazine, “NO DISC” appears in the display. CD-text title (disc) Artist name CD-text title (track) CD-text title (disc) (None) DXZ748RMP...
  • Page 28 2. To cancel disc scan play, press the [SCN] button again. “DISC” and “SCN” go off from the display and the current track continues to play. DXZ748RMP Repeat play Repeat play continuously plays the current track. This function continues automatically until it is cancelled.

  • Page 29: Tv Operations

    1. Press the [BND] button and select the de- sired TV band (TV1 or TV2). 2. Press and hold the [P/A] button for 2 sec- onds or longer. The stations with good recep- tion are stored automatically to the preset channels. DXZ748RMP...

  • Page 30: Digital Radio/Dab Operations

    ● OFF: Sets the diver setting to OFF. 4. Press the [T] button to return to the previous mode. DXZ748RMP Digital Radio/DAB Operations DAB control function When a CeNET cable is used to connect a DAB (DAH913 or DAH923) (sold separately), all func- tions can be operated.
  • Page 31 ●Searching for a TP station Notes: • If a TP station is not received, the main unit stops the search operation. • “TP” may be lit in the display when a TP broad- cast is transmitted from a RDS station. In this DXZ748RMP...
  • Page 32 Î Î PUSH ENT”, then press the [ to enter “INFO SEL” mode. DXZ748RMP 3. Press the [a] or [d] button to select an in- formation item. You can select any of 6 items: Travel ➜ Warning ➜ News ➜ Weather ➜...
  • Page 33 [ROTARY] knob clockwise or counterclock- wise to set the volume to a desired level (0 to 33). ∗ When the TA, INFO, ALARM or PTY interrupt ends, the volume returns to the level it had before the in- terrupt. Digital Radio/DAB Operations DXZ748RMP...

  • Page 34: Connect With 5.1Ch Surround Decoder (Dvh923/Dvh943)

    ∗ Connect properly in accordance withcolor of connectors Set the 5.1ch surround decoder’s [STAND-ALONE / SLAVE] switch tothe [STAND-ALONE] position. SLAVE DXZ748RMP TV MONITOR ∗ Refer to the OWNER’S MANUAL of DVH923. Connect to 4ch power amplifier Connect to powered...
  • Page 35 ∗ Refer to the OWNER’S MANUAL of DVH943. Connect to 4ch power amplifier Connect to powered center speaker Connect to powered sub-woofer RCA pin cable (furnished with DVH943) ANALOG INPUT STAND ALONE BB TV Tuner (TTX7502z/ TTX7503z) 1-DIN Center Unit (DXZ748RMP) DXZ748RMP...

  • Page 36: In Case Of Difficulty

    Noise is generated or noise is mixed with sound. DXZ748RMP Cause Replace with a fuse of the same amperage. If the fuse blows again, consult your store of purchase. Consult your store of purchase. 1. Turn the unit off.
  • Page 37 Measure Let dry for about 1 hour with the power on. Use ISO9660 level 1, 2 or JOLIET or Romeo file system. Use alphanumeric/ASCII characters for MP3/WMA file name. Use “.M3U” for the file extension of a play list. DXZ748RMP...

  • Page 38: Error Displays

    If an error display other than the ones described above appears, press the reset button. If the problem persists, turn off the power and consult your store of purchase. DXZ748RMP Cause This is a failure of CD deck’s mechanism and consult your store of purchase.

  • Page 39: Specifications

    Auto Antenna Rated Current: 500 mA or less Weight: Main unit: 1.6 kg Remote control unit: 30 g (including battery) Dimensions: Main unit : 178 (W) ✕ 50 (H) ✕ 155 (D) mm Remote control unit : 44 (W) ✕ 110 (H) ✕ 27 (D) mm DXZ748RMP...
