Owner's Manual
SPECIFICATIONS
FM tuner section
Frequency range:
87.9MHz to 107.9MHz
(PE-2561B-A)
87.0MHz to 108MHz
(PE-2561K-A/B)
Usable sensitivity:
9dBf
50dB quieting sensitivity:
15dBf
Alternate channel selectivity: 70dB
Stereo separation:
35dB(1kHz)
Frequency response:
30Hz to 15kHz (+3/-3dB)
AM tuner section
Frequency range:
530kHz to 1710kHz
(PE-2561B-A)
531kHz to 1602kHz
(PE-2561K-A/B)
Usable sensitivity:
25 uV
CD player section
System:
Compact disc digital audio
system
Usable discs:
Compact disc
Frequency response:
5Hz to 20kHz(+1/-1dB)
Signal to noise ratio:
100dB(1kHz)
Dynamic range:
95dB(1kHz)
Harmonic distortion:
0.01%
Channel separation:
85dB(1kHz)
Audio section
Maximum power output:
52Wx4
Continuous average power output:
18Wx4, into 4ohm, 20Hz
to 20kHz, 1%THD
Clarion Co., Ltd.
50 Kamitoda, Toda-shi, Saitama 335-8511 Japan
Service Dept.: 5-66 Azuma, Kitamoto-shi, Saitama 364-0007 Japan
Tel: +81-48-541-2335 / 2432 FAX: +81-48-541-2703
Service Manual

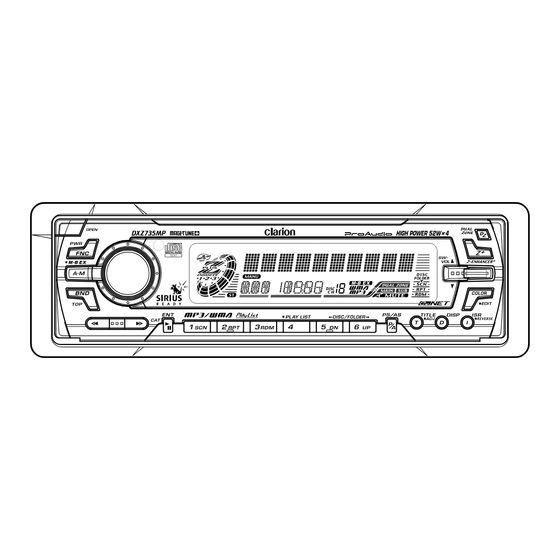

AM/FM CD/MP3/WMA Player
Model
(PE-2561B-A for U.S.A.)
(PE-2561K-A/B for Other Countries)
Bass control action:
Treble control action:
Line output level:
General
Power supply voltage:
Current consumption:
Speaker impedance:
Weight:
Dimensions(mm):
NOTE
* We cannot supply PWB with component parts in principle. When a
circuit on PWB has failure, please repair it by component parts
base. Parts which are not mentioned in service manual are not
supplied.
* Only CDs and CD-ROMs having the
used in this unit.
Some CDs recorded in CD-R mode may not be usable. Even when
recorded in CD-RW mode, some CDs not be usable.
* Specifications and design are subject to change without notice for
further improvement.
-1-
Published by Service Dept.
298-6037-00
FEB. 2003 X
Printed in P.R.C.
+16dB, -12dB (50Hz/80Hz/120Hz)
+12/-12dB (8kHz/12kHz)
1.8V (CD 1kHz)
14.4V DC(10.8 to 15.6V allowable),
negative ground
Less than 15A, 3A
4ohm(4ohm to 8ohm allowable)
Source unit
1.3kg
Remote control unit
30g(including battery)
Source unit
178(W)x50(H)x157(D)
Remote control unit
44(W)x110(H)x27(D)
or
mark can be
D X Z 7 3 5 M P
