Summary of Contents for Clarion DXZ466MP

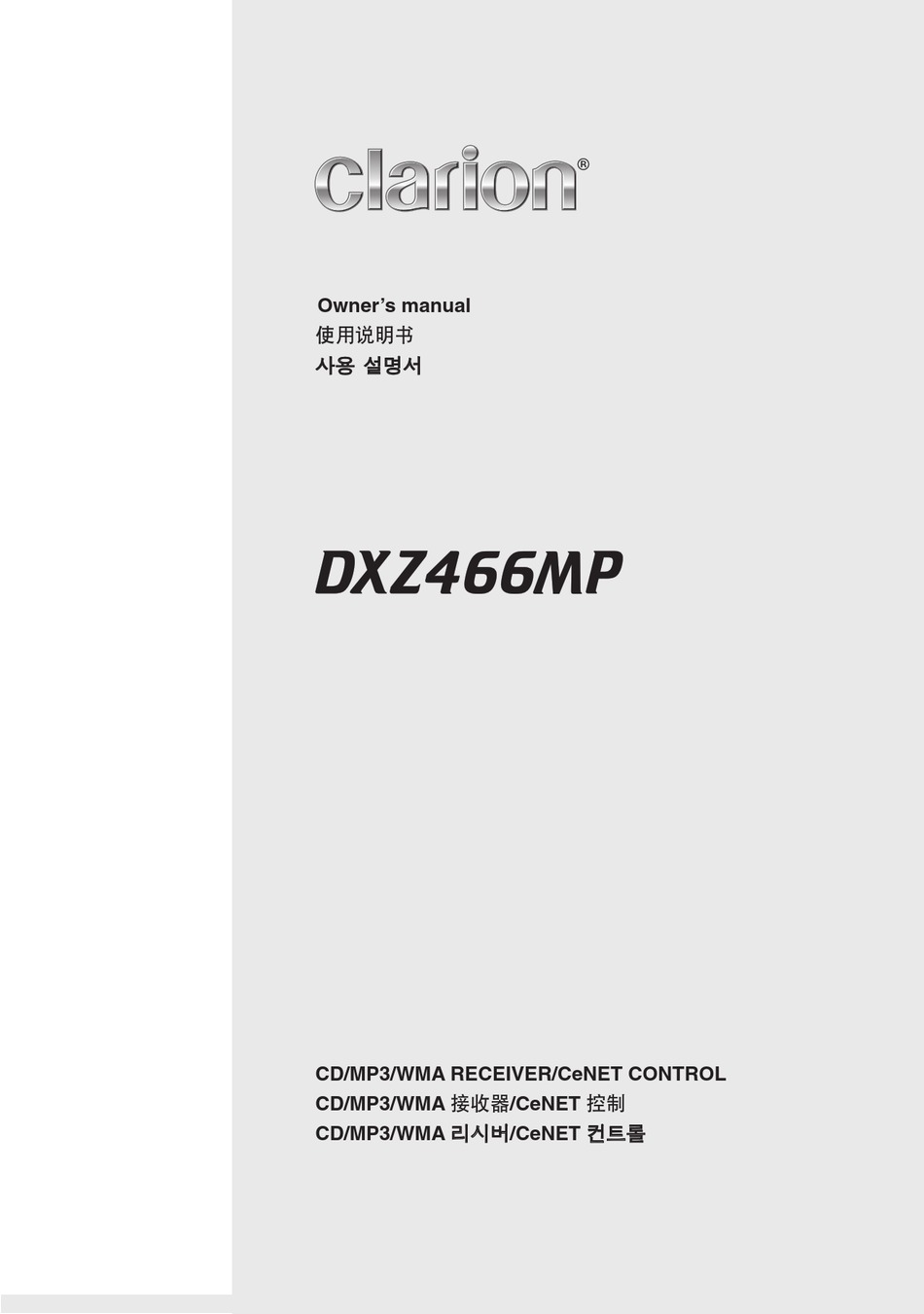

- Page 1 Owner’s manual ㄏノ弧明書 사용 설명서 CD/MP3/WMA RECEIVER/CeNET CONTROL CD/MP3/WMA 钡Μ竟/CeNET 北制 CD/MP3/WMA 리시버/CeNET 컨트롤...
-
Page 2: Table Of Contents
1. FEATURES Full dot display & Flip-down console MP3 and WMA compatible with ID3-TAG display “Z-ENHANCER” sound customization & “MAGNA BASS EX” dynamic bass enhancement DXZ466MP Be sure to unfold and read the next page. 叫叭ゲ甶秨並綷弄下頁。 반드시 다음 페이지를 펴서 읽으십시오. -
Page 3: Controls
/ 讽 FLIP DOWN PANEL (陆秨面狾)砆 / 플립다운 패널이 열린 상태 ゴ秨時 Note: Be sure to unfold this page and refer to the front diagrams as you read each chapter. 猔種: 綷弄各彻時叫叭ゲ甶秨此頁並綷弄玡面的瓜。 주: 반드시 이 페이지를 펴서 각 장을 읽을 때 앞면 도표를 참고하십시오. DXZ466MP... -
Page 4: Button Terminology
CD/MP3/WMA mode. • Press the button to scroll the title during the CD- text play, while in the CD/MP3/WMA mode. DXZ466MP [ BND ] button • Switch the band, or seek tuning or manual tuning while in the radio mode. -
Page 5: Major Button Operations When External Equipment Is Connected To This Unit
• Press the button to switch to the ADJ mode. • Press and hold the button for 1 second or longer to switch to the TV picture mode or VTR ( external ) picture mode. ] lever • Select a station. DXZ466MP... -
Page 6: Display Items
Display Items LCD Screen In extreme cold, the screen movement may slow down and the screen may darken, but this is normal. The screen will recover when it returns to normal temperature. DXZ466MP... -
Page 7: Precautions
2. Driving on extremely bumpy roads which cause severe vibration may cause the sound to skip. 3. This unit uses a precision mechanism. Even in the event that trouble arises, never open the case, disassemble the unit, or lubricate the rotating parts. CAUTION DXZ466MP... -
Page 8: Handling Compact Discs
• Do not use commercially available CD protection sheets or discs equipped with stabilizers, etc. These may get caught in the internal mechanism and damage the disc. DXZ466MP Note on compact discs Never stick labels on the surface of the compact disc or mark the surface with a pencil or pen. -
Page 9: Dcp ( Detachable Control Panel )
DCP is an extremely important part. Be careful not to damage it by pressing on it with fingernails, pens, screwdrivers, etc. Note: • If the DCP is dirty, wipe off the dirt with a soft, dry cloth only. DXZ466MP... -
Page 10: Remote Control
4. Replace the cover and slide in until it clicks into place. DXZ466MP Notes: Misuse may result in rupture of the battery, producing leakage of fluid and resulting in personal injury or damage to surrounding materials. -
Page 11: Functions Of Remote Control Unit Buttons
MP3/ WMA mode. Switch reception band. Move preset channels up and down. No function. Preset scan. Press and hold the button for 2 seconds or longer: Auto store. No function. Switch between TV and VTR. DXZ466MP... -
Page 12: Operations
AUX mode Radio mode... ∗ External equipment not connected with CeNET is not displayed. DXZ466MP Note: Be sure to read this chapter referring to the front diagrams of chapter “2. CONTROLS” on page 3. Note: • If the CD mode is selected when no disc is inserted, the display shows “NO DISC”. -
Page 13: Basic Operations
“OFF” “BASS BOOST” “EXCITE” “OFF” ... • BASS BOOST : bass emphasized • IMPACT : bass and treble emphasized • EXCITE : bass and treble emphasized • OFF : no sound effect “IMPACT” mid de-emphasized DXZ466MP... -
Page 14: Radio Mode Operations
2. Press and hold the [ A-M ] button for 1 second or longer to turn off the MAGNA BASS EX effect. “M-BASS EX OFF” lights in the display. DXZ466MP Radio Mode Operations Listening to the radio 1. Press the [ SRC ] button and select the radio mode, then the radio will be on. -
Page 15: Recalling A Preset Station
In any mode, press the [ ISR ] button to turn on the radio function and tune the selected radio station. “ISR” and its frequency appear in the display. Press the [ ISR ] button again to return to the previous mode. DXZ466MP... -
Page 16: Cd/Mp3/Wma Mode Operations
If you add a file extension other than specified or forget to add the file extension, the file cannot be played . DXZ466MP • Logical format ( File system ) 1. When writing MP3/WMA file on a CD-R disc or CD-RW disc, please select “ISO9660 level 1, 2... -
Page 17: Loading A Cd
CD in the mechanism or the unit may require service. • Discs not bearing the CD-ROMs cannot be played by this unit. • Some CDs recorded in CD-R/CD-RW mode may not be usable. ( CD changer ) CD/MP3/WMA ( TV ) Radio... mark and DXZ466MP... -
Page 18: Pausing Play
2. Each time you press the [ T ] button, the title display changes in the following order: • CD-TEXT data • MP3/WMA disc DXZ466MP Notes: • If the CD playing is not a CD-text data or no user title has been input, “... -
Page 19: Selecting A Track
first track in the folder. 1. Press the [ DN ] or the [ UP ] button. Press the [ DN ] button to move the previous folder. Press the [ UP ] button to move the next folder. DXZ466MP... - Page 20 2. To select a track, press the [ upward or downward. Top function The top function resets the CD player to the first track of the disc. Press the [ BND ] button to play the first track ( Track No. 1 ) on the disc.
-
Page 21: Operations Common To Each Mode
[ T ] button was pressed for 1 second or longer. “Pattern SS” “Pattern MSG INPUT ”. Push ENT ] button. ] lever upward or down- Small letters Numbers/ Umlaut Capital letters... ] button for 2 seconds 1 second ] button for 2 seconds AUTO SCROLL”. DXZ466MP... -
Page 22: Dimmer Control
This unit requires special wiring to mute the audio signal automatically when a cellular telephone rings in the car. ∗ This function is not compatible with all cellular telephones. Contact your local authorized Clarion ] lever is pressed dealer for information on proper installation and compatibility. -
Page 23: Entering Titles
AUX function This system has an external input jack so you can listen to sounds and music from external de- vices connected to this unit. Numbers/ ] button for 2 seconds DXZ466MP... -
Page 24: Operations Of Accessories
CAUTION CD-ROM discs cannot be played from every CD changer, itʼs depended on the model. DXZ466MP Displaying CD titles This unit can display title data for CD-text CDs and user titles input with this unit. ∗ Title data for CD-text CDs can be displayed with this unit only when it is connected to CDC655Tz. -
Page 25: Tv Operations
) , the TV tuner area setting changes. 1. Press the [ ADJ ] button to switch to the adjustment selection display. 2. Press the [ ] lever upward or downward to select “ TV AREA Push ENT 3. Press the [ ] button. ”. DXZ466MP... -
Page 26: Setting The Tv Diver
3. Turn the [ ROTARY ] knob clockwise to set to “ON” or counterclockwise to set to “OFF”. • ON: Sets the diver setting to ON. • OFF: Sets the diver setting to OFF. 4. Press the [ ADJ ] button to return to the previous mode. DXZ466MP... -
Page 27: Troubleshooting
1. Turn down sound volume. Function can also be restored by turning the power off and on again. (Speaker volume is reduced automatically when the speaker protection circuit operates). 2. If the sound is muted again, consult our service department. Measure DXZ466MP... -
Page 28: Troubleshooting
Noise is generated or noise is mixed with sound. Sound is bad directly after power is turned on. Wrong filename DXZ466MP Cause MP3/WMA files are Write MP3/WMA files onto the disc properly. absent in a disc. Files are not recognized Use MP3/WMA files encoded properly. -
Page 29: Error Displays
This is a failure of DVD mechanism and consult your store of purchase. Retry or replace with a non-scratched, non- warped-disc. Eject the disc then reload it properly. Set the correct Parental level. Eject the disc and replace correct region code disc. Measure Measure Measure DXZ466MP... -
Page 30: Specifications
Folder Support: 255 File Support: 512 Folder Name: Maximum 64 bytes File Name: Maximum 64 bytes DXZ466MP Audio Maximum Power Output: 208 W ( 52 W X 4 ch ) Continuous Average Power Output: 17 W X 4, into 4 Ω, 20 Hz to 20 kHz,1%THD Bass Control Action ( 100 Hz ) : ±14 dB... - Page 31 Clarion Co., Ltd. PE-2799K All Rights Reserved. Copyright © 2005: Clarion Co., Ltd. 280-8342-00 Printed in Malaysia / 在皑ㄓ﹁ㄈ印刷 / 인쇄국: 말레이시아...
