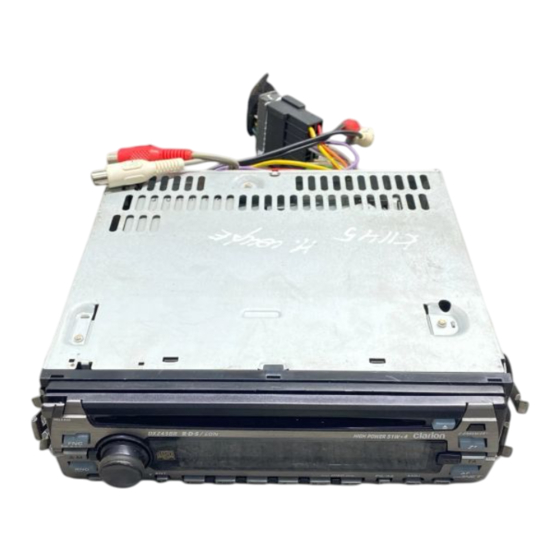

Clarion DXZ438R Service Manual

Clarion
Clarion Co., Ltd.
Xiamen Clarion Electrical Enterprise Co., Ltd
Guo Tai Buikding 6F, No.392 Jia He Road, Xiamen, Fujian, China
Tel:+86-592-5517907
Fax:+86-592-5517906
50 Kamitoda , Toda-shi, Saitama 335-8511 Japan
Published by Service Dept.
298-6008-00 JAN. 2003P
Printed in P.R.C.
=<. ME OS 2ON
(maw dar
=. > 9.
DXZ438R
( PE-2555E-A )
Model
SPECIFICATIONS
Radio section
Tuning
system:
PLL synthesizer
tuner
Receiving
frequencies:
FM
: 87.5 to 108 MHz
(0.05 MHz steps)
MW : 531 to 1602 kHz
(9 kHz steps)
LW : 153 to 279 kHz
(3 KHz steps)
CD player section
System:
Frequency response:
Signal to noise ratio:
100 dB (1 kHz) IHF-A
Dynamic
Range:
95 dB (1 kHz)
Distortion: 0.01%
Compact disc digital audio system
10 Hz to 20 kHz (+1/-1 dB)
General
Power supply voltage:
NOTE
COMPONENTS
PE-2555E-A
Main unit
onennnnenenene
1
Mounting
bracket
300-7742-00
1
DCP case
335-6035-20
1
Escutcheon(OUT-ES)
370-6029-00
1
Parts bag 9
nnn eenee es
Removal
key
331-2497-00
2
Rubber
part
345-3653-20
1
Screw
716-0726-01
1
A- lead
850-6681-50
1
FEATURES
