Chapter 2 — Physical Installation
• Remove the two #T10 Torx screws that hold the cover plate. Always
start with the inner one. Remove the cover plate.
• Save the cover plate for possible later use. Keep the screws.
• Remove the #T20 Torx screw fi tted on the hexagonal spacer at the
center of the CPU board. Keep the screw.
• If reconfi guration of the interface board is required, fi t or remove
circuits and straps according to the descriptions in Chapters 3 and 4.
• Attach the fl at cable included in the kit to connector J62 (marked
"EXP BOARD") on the CPU board (see illustration on page 12).
10 Double Serial Interface Kit Installation Instructions

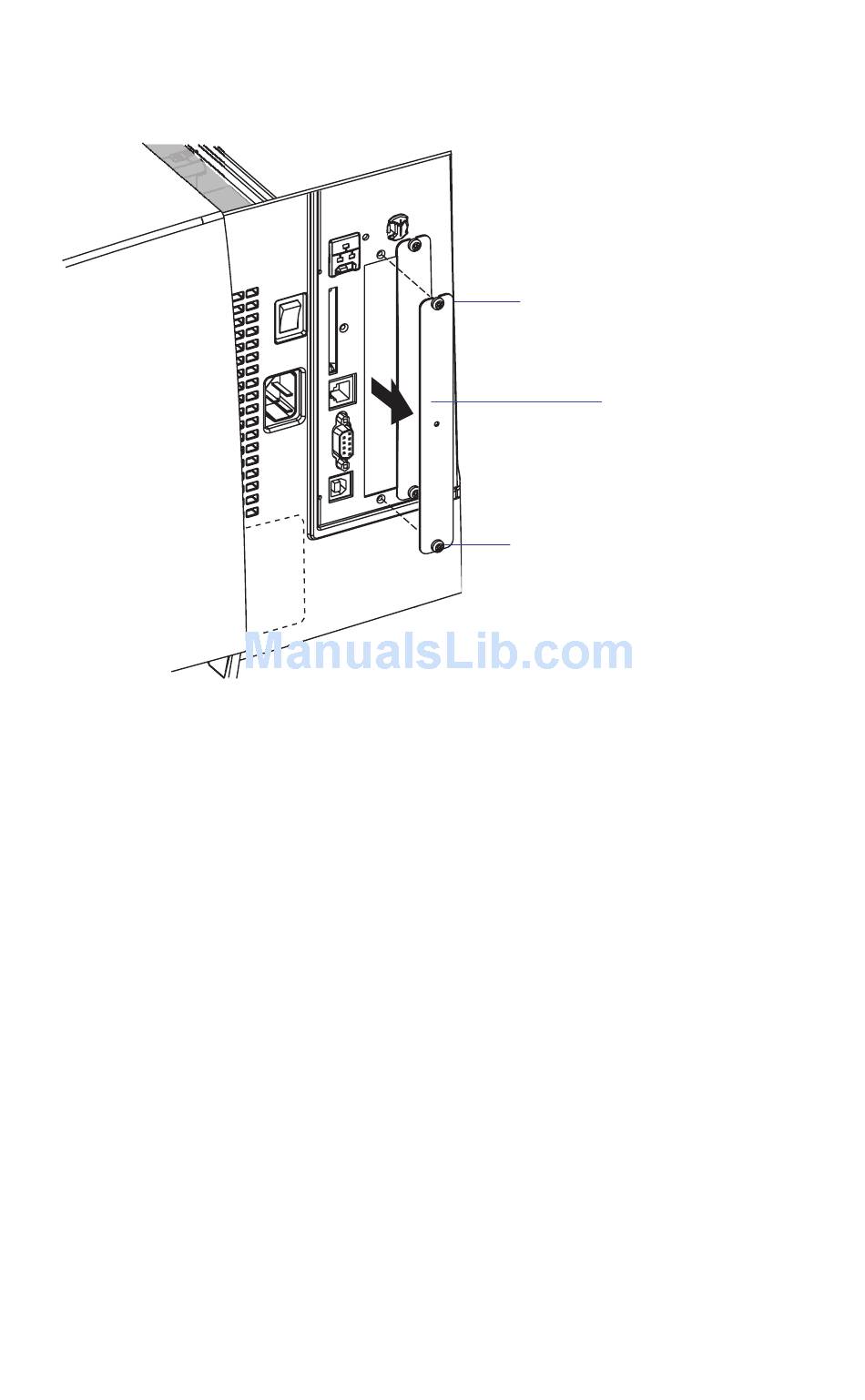

#T10 Torx screw
Cover plate
#T10 Torx screw
