3400, 4420, and 4440 Cutter User's Manual
Attaching the Cutter
4
1. Turn off the printer.
2. Unplug the printer power supply cord.

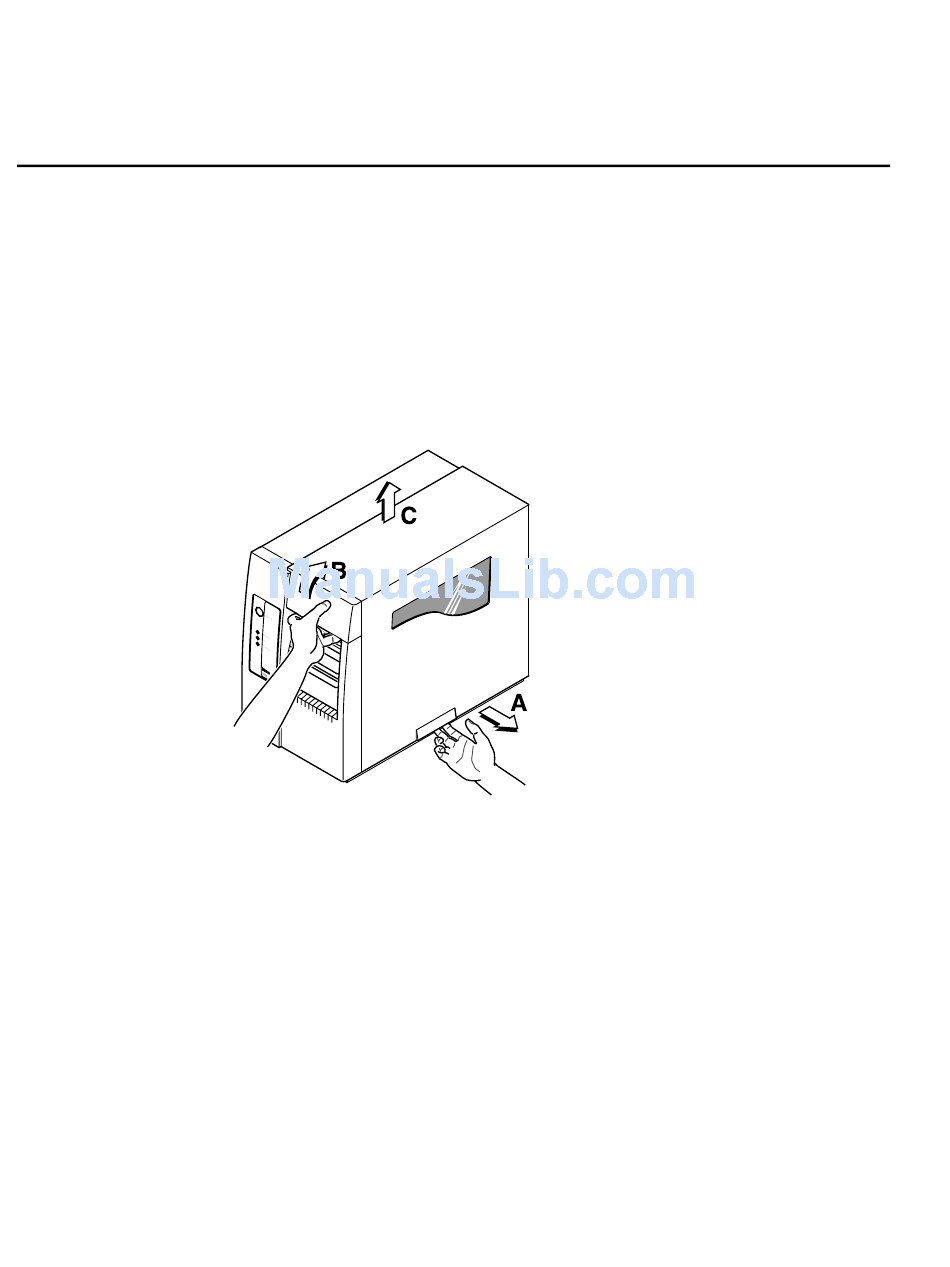

3. Remove the media cover.
A. Pull the bottom of the media cover away from the base of the printer.
B. Lift the front of the media cover upward to release it from the printer
frame.
C. Lift the media cover away from the top of the printer.
4. Turn the head lift lever clockwise and pull the media back to the printhead.
5. Push down on the mounting plate below the hinge and hold it down with
the cutter pressed against the mounting plate.
6. Using the thumbscrews on the mounting plate, attach the cutter to the
mounting plate. Make sure the cutter cable goes through the notch in the
mounting plate.
44XXU.001
