Shutdown Diagnostics
The unit has the ability to report the cause of the last shutdown of the remote start system.

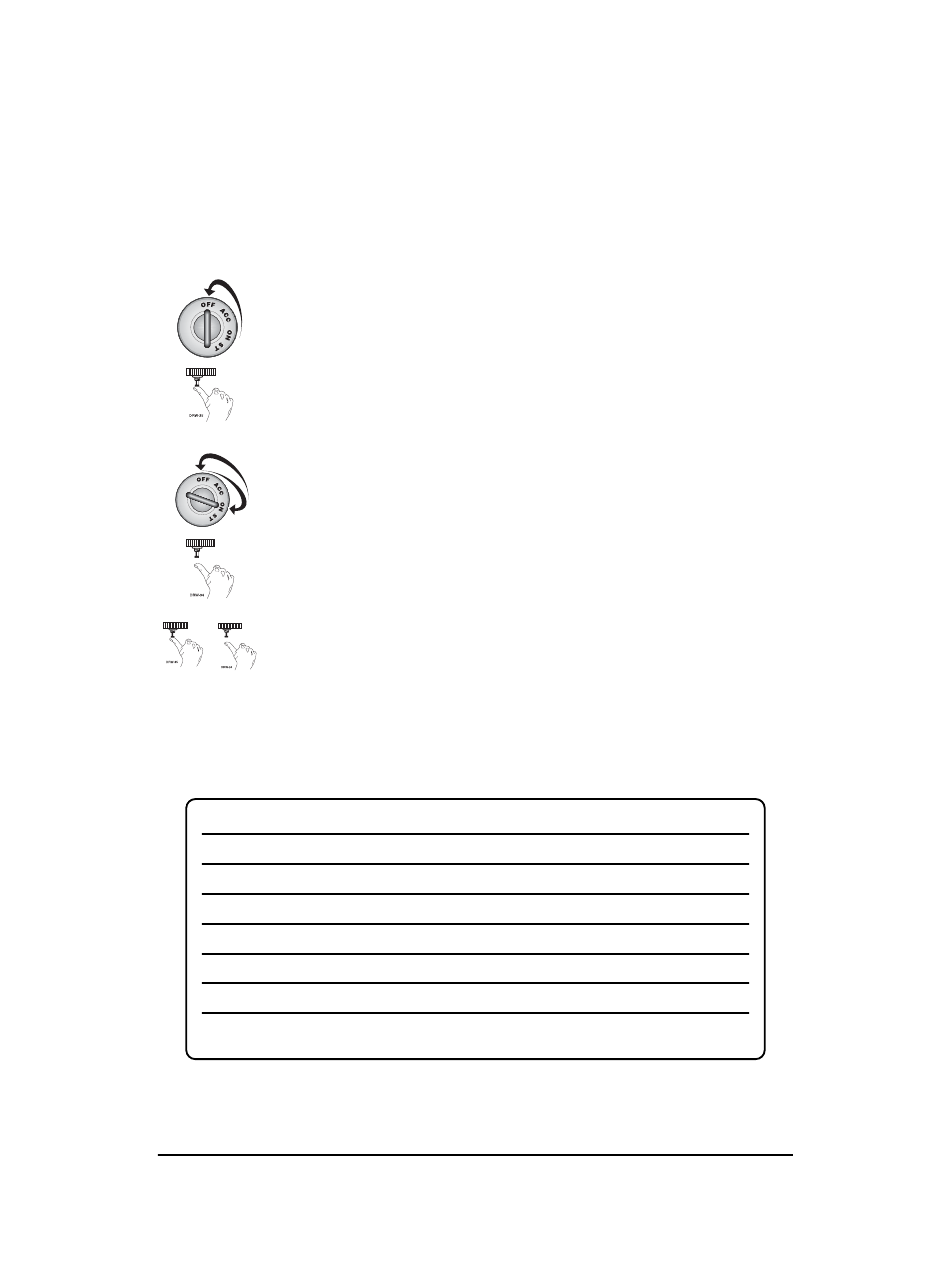

T T o o e e n n t t e e r r d d i i a a g g n n o o s s t t i i c c m m o o d d e e : :
1.
Turn the ignition off.
2.
Press and hold the integrated LED/Valet
3.
Turn the ignition on then off again.
4.
Release the integrated LED/Valet
5.
Press and release the integrated LED/Valet
The LED will now report the last system shutdown by flashing for one minute in the below grouped
patterns; the LED will stop flashing when the ignition is turned on.
LED FLASHES
SHUTDOWN MODE
One
System timed out
Two
Over-rev shutdown
Three
Low or no RPM
Four
Transmitter Shutdown (or optional push-button)
Six
(-) Shutdown (H3/3 GRAY) or (+) Shutdown (H3/4 BROWN)
Seven
(-) Neutral safety shutdown (H3/6 BLACK/WHITE)
Eight
Wait-to-start timed out
©
