To bypass an optional sensor:
H3/1 BLUE STATUS
OUTPUT
(+) 12V FUSED
DIA-141

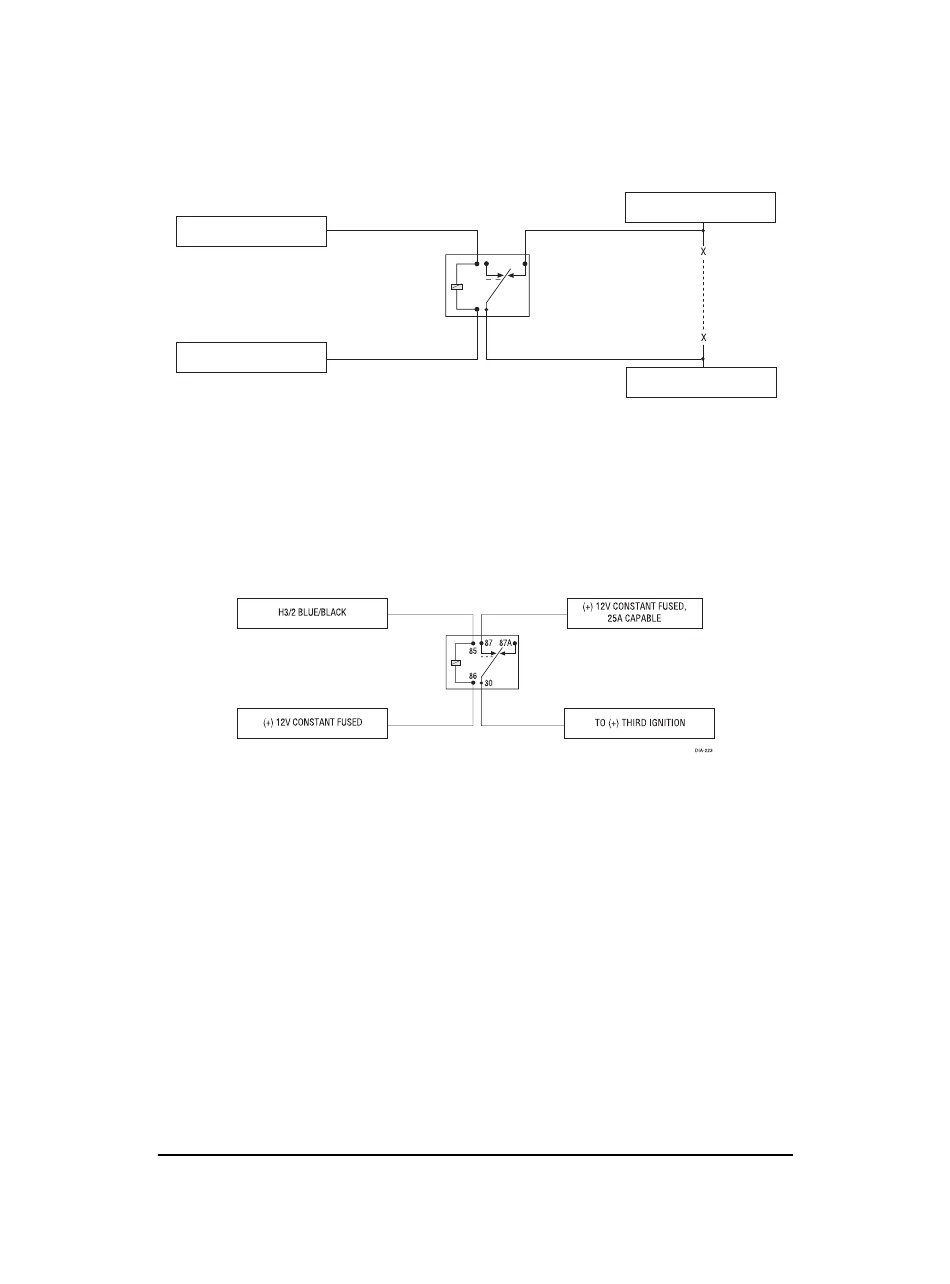

H3/2 BLUE/BLACK (-) Optional Third Ignition Output
This output provides 200mA as soon as the remote starter is activated. It can be used to power a
relay to energize a positive (+) third ignition as shown below. This output is capable of driving two
relays if necessary.
H3/3 GRAY (-) Hood Pinswitch Input, Zone 1
This wire MUST be connected to the hood pinswitch. This input will disable or shut down the
remote start when the hood is opened. It will also trigger the security system if the hood is opened
while the system is armed and report Zone 1.
H3/4 BROWN (+) Brake Switch Input, Zone1
This wire MUST be connected to the vehicle's brake light wire. This is the wire that shows (+) 12V
when the brake pedal is pressed. The remote start will be disabled or shut down any time the brake
pedal is pressed. This wire will also trigger the security system if the brake pedal is pressed while the
system is armed and will report Zone 1.
H3/5 VIOLET/WHITE Tachometer Input
This input provides the module with information about the engine's revolutions per minute
16
SENSOR TRIGGER OUTPUT
87 87A
85
86
30
SENSOR INPUT OF SYSTEM
©
2003
Directed Electronics, Inc.
