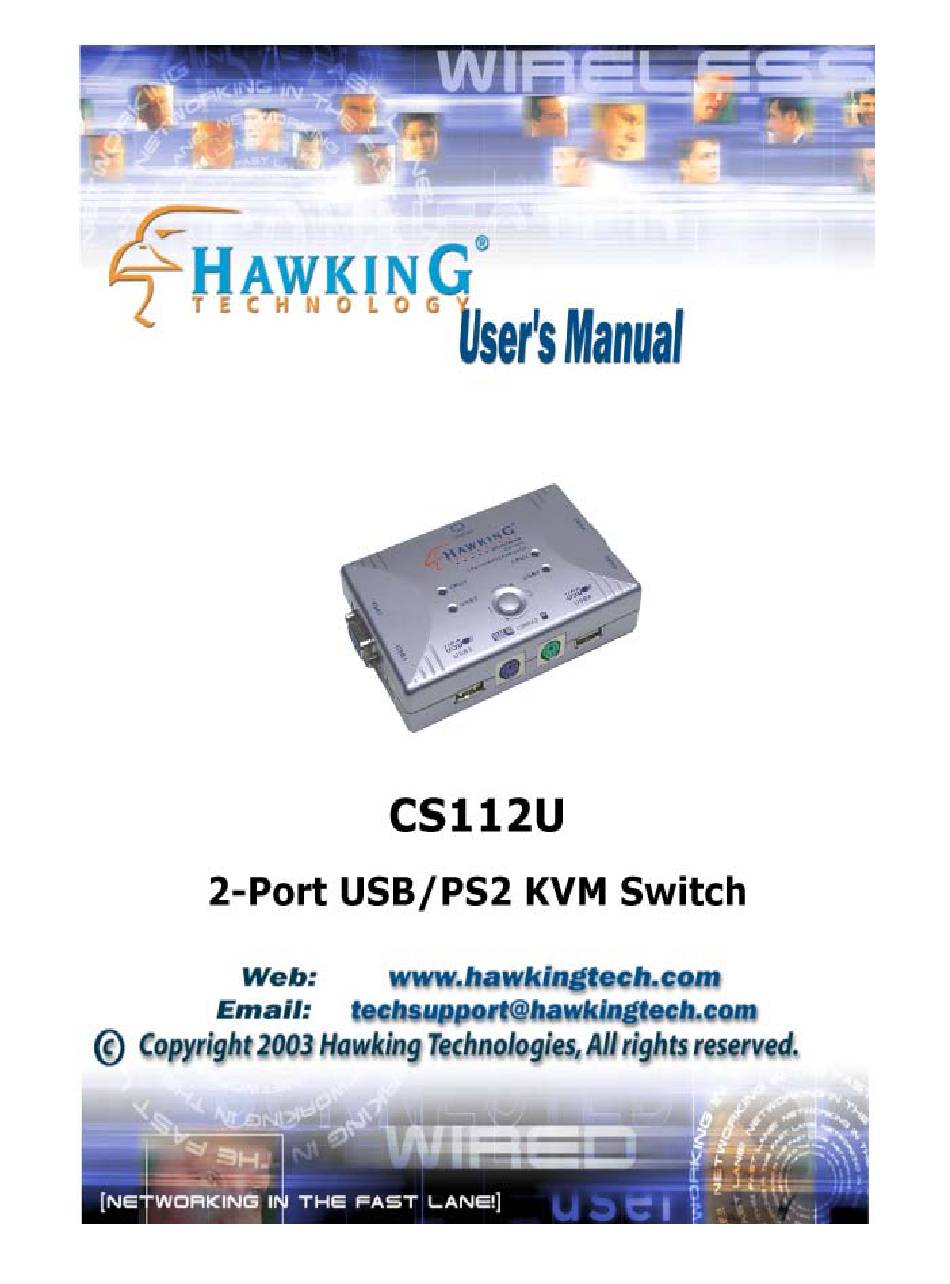

Hawking CS112U User Manual
2-port usb/ps2 kvm switch
Hide thumbs
Also See for CS112U:
- Specifications (2 pages) ,
- Quick installation manual (11 pages) ,
- User manual (2 pages)
Table of Contents
Advertisement
Quick Links
Advertisement
Table of Contents
Related Manuals for Hawking CS112U
Summary of Contents for Hawking CS112U
- Page 2 Hawking Customer Service in order to obtain a Return Authorization number. Warranty is for repair or replacement only. Hawking Technology does not issue any refunds. BE SURE TO HAVE YOUR PROOF OF PURCHASE. RETURN REQUESTS CANNOT BE PROCESSED WITHOUT PROOF OF PURCHASE.
- Page 3 Check to make sure that the unit was not damaged during shipping. If you encounter a problem, contact your dealer. Please read this manual thoroughly, and follow the installation and operation procedures carefully to prevent any damage to the CS112U unit, and/or any of the devices connected to it. Copyright 2003 Hawking Technologies, Inc.
-
Page 4: Table Of Contents
Overview…………………………………………………………………………………..3 Features……………………………………………………………………………………4 Hardware Requirements …………………………………………………………………..5 Technical Spececifications…………………………………………………………….…..6 Technical Specifications………………………………………………………………...6 Mac O.S. and SUN Micro Keyboard Mapping..………………………………………..7 Installation…………………………………………………………………………………8 Hardware Installation………...…………………..………………………………..……..8 Basic Input Output System (BIOS)…………………………………….………………...9 Functions…………………………………………………………………………………10 Troubleshooting….……….…..………...…………………………………………….11-13 - 2 -... -
Page 5: Overview
The CS112U USB & PS/2 2-Port KVM Switch is a control unit that allows access to multiple PCs from a single console (keyboard, monitor and mouse). It supports both USB & PS/2 plugs - USB & PS2 Mouse, USB & PS/2 Keyboard, and VGA/SVGA Video. -
Page 6: Features
♦ A compact size, 2-port USB KVM switch ♦ USB 1.1 Specification compliant ♦ Supports UHCI and OHCI USB Interface ♦ USB and PS/2 console work with Windows 98, SE, ME, 2000, XP, Window NT, HP Unix, Linux, Sun Solaris, MAC O.S. 8.6 or later version ♦... -
Page 7: Hardware Requirements
Console ♦ One VGA or the VGA monitor ♦ A USB keyboard or PS/2 keyboard ♦ A USB mouse or PS/2 mouse Computers ♦ Two HDB 15-pin male to male VGA cables ♦ Two USB A-B cables - 5 -... -
Page 8: Technical Spececifications
TECHNICAL SPECIFICATIONS Mode No. CS112U PC Port 2 USB Type B ports Console Port 2 USB Type A ports 2 PS/2 ports PC Port Connector USB Type B receptacle VGA HDB 15 pin Female USB Type A receptacle Console Port Connector... -
Page 9: Mac O.s. And Sun Micro Keyboard Mapping
Mac O.S. and SUN Micro Systems Keyboard Mapping The following diagram indexes the HotKey combination that emulates Mac O.S. and Sun Micro keyboard commands. This feature is only available on the PS/2 keyboard attached to the KVM, and is not available on the USB keyboard. -
Page 10: Installation
Before you begin, please make sure that all of the devices that you are going to connect to have power turned off. Hardware Installation To set up your CS112U, please follow the steps below: For PC: 1. Connect USB A-B type cables to PC and USB KVM switch. The type A connector of USB cable goes into the PC and the other end of USB cable is for USB KVM Switch. -
Page 11: Basic Input Output System (Bios)
Basic Input Ouput System (BIOS): ! Error message or check keyboard: If the BIOS needs to check the keyboard to accomplish setup and the PC shows a keyboard error message on the screen, please press the “delete” key immediately (a few times) and you will get into BIOS setting mode. -
Page 12: Functions
USAGE The Push Button: The USB KVM switch supports one push button. You can select PC port and USB hub together using the push button. - i.e. Hub and PC are selected at the same time Keyboard: There are two types of keyboard that can be used for this switch, PS/2 or USB type. Mouse: There are two types of mouse that can be used for this switch, PS/2 or USB type. -
Page 13: Troubleshooting
TROUBLESHOOTING Note: If you are experiencing difficulties, first make sure that there are no problems with the cables, and that they are all properly connected. IBM PC or Compatible: ♦ PC cannot find keyboard or mouse after the boot process. Please make sure you turn on your PC system by the PC port in order to boot Windows O.S. - Page 14 ♦ The reconmended keyboard or mouse cable is 10 feet maximum without degradation. Normally, the cable length is based on the driver capacity of your mother board. If you need longer keyboard or mouse cables, please use keyboard or mouse extenders to get your applications. ♦...
- Page 15 - 13 -...
