Hawking CS164 User Manual

4/8-port kvm rack-mount switch
Hide thumbs Also See for CS164:
Table of Contents

Advertisement

Quick Links

Download this manual
CS164/CS168
4/8-Port
KVM Rack-Mount Switch

Advertisement

Table of Contents
loading

Related Manuals for Hawking CS164

Summary of Contents for Hawking CS164

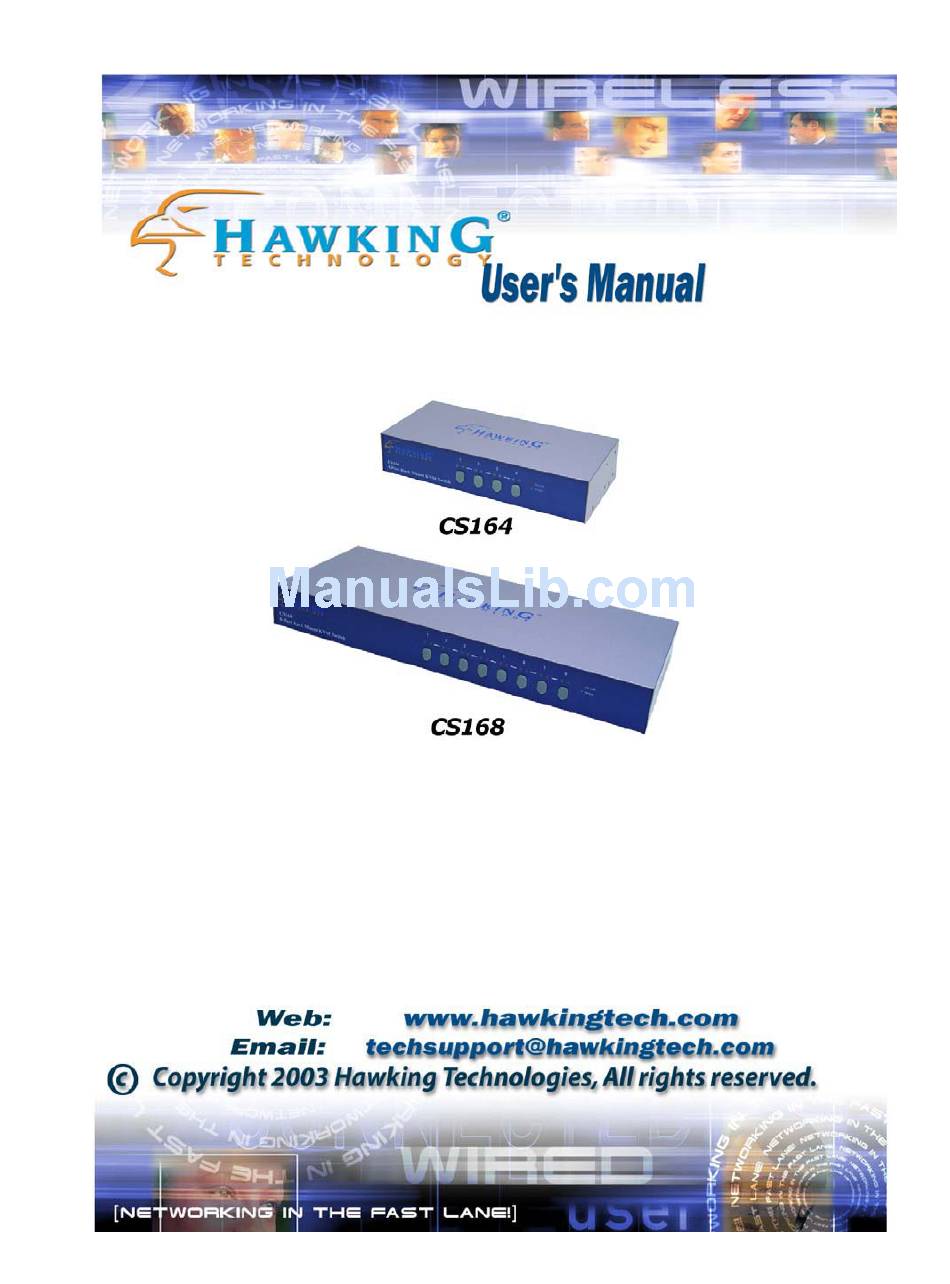

  • Page 1 CS164/CS168 4/8-Port KVM Rack-Mount Switch...
  • Page 2 (2) years from the date of purchase. If the product proves defective during this two-year warranty period, call Hawking Customer Service in order to obtain a Return Authorization number. Warranty is for repair or replacement only. Hawking Technology does not issue any refunds.
  • Page 3 Check to make sure that the unit was not damaged during shipping. If you encounter a problem, contact your dealer. Please read this manual thoroughly, and follow the installation and operation procedures carefully to prevent any damage to the CS164/CS168 unit, and/or any of the devices connected to it. Copyright 2003 Hawking Technologies, Inc.

  • Page 4: Table Of Contents

    Overview…………………………………………………………………………….…….3 Features……………………………………………………………………………..……..4 Hardware Requirements………………………………….………………………………..5 Console…………………………………………………………………………..……...5 PC………………………………………………………………………………………5 Cables…………………………………………………………………………………...5 Introduction……………………………………………………………………………….6 Front View……………………………………………………………………………...6 Rear View………………………………………………………………………………6 Installation……………………………………………………………………………...7-8 Operation……………………………………………………………………………….…9 Port Selection……………….…………………………………………………………..9 Manual Navigation…………..……………………………………...……………..……9 HotKey Navigation…………………….……………………………………………..…9 Auto Scan Mode……………………………………………………………………...10 Appendix………………………………………………………………………………...11 LED Status……………………………………………………………………………11 Troubleshooting…………………………………………………………..……….11-12 Specifications…………………………………………………………………………13 - 2 -...

  • Page 5: Overview

    Now, with the CS164/CS168, you can easily access multiple computers in a cost effective manner. The CS164 unit can control up to 4 PCs, all from a single console, while the CS168 can control up to 8 PCs.

  • Page 6: Features

    Sturdy 19” rack-mount design No Software Required - PC Selection via “Select” button on the Switch, HotKey combinations Supports DOS, Win3.X, Win95/98/98SE/2000/XP, WinNT, Netware, Unix, Linux. Auto Scan Mode for Monitoring Selected PCs PS/2 and Serial Mouse Emulation Provided For System Bootup Console's PS/2 Mouse Controls All Connected PCs PS/2 Compatible Mouse Support - Microsoft Intellimouse, Intellimouse Explorer, Logitech Net Mouse or any other fully compatible MS mouse.

  • Page 7: Hardware Requirements

    3. Because of the wiring and pin assignments, you cannot use a Serial-to-PS/2 adapter at the end that plugs into the CS164/CS168. Therefore, attempting to use a standard serial extender cable with adapters at both ends will fail.

  • Page 8: Introduction

    Front Panel & Rear Panel of CS164: Front Panel & Rear Panel of CS168: 1. Port LEDs: Pressing the appropriate “Select” button switches access between The PCs. The selected LED lights indicate which port is the active one. 2. Sounds: The switch will beep when switching ports.
  • Page 9 Before you begin, please make sure that all of the devices that you are going to connect to have power turned off. Installation To set up your CS164/CS168, please follow the steps below: 1. Install the switch in a relatively cool and dry location; see the “Technical Specifications” section for the acceptable operating tecmperature and humidity ranges.
  • Page 10 Installation Diagram (CS164 Shown) - 8 -...

  • Page 11: Operation

    Port Selection Controlling all the PCs connected to your CS164/CS168 from a single console couldn’t be easier. You can access any PC on the chain using two methods: Manual or HotKey. Manual Simply press the appropriate “Select” button located on the front of the CS164/CS168 to switch between computers.

  • Page 12: Auto Scan Mode

    Auto Scan Mode The CS164/CS168 Auto Scan feature automatically switches between the 4 or 8 PCs at adjustable time intervals so that you can monitor their activity without having to take the trouble of switching yourself. To invoke the Auto Scan Mode, key in the following Hot Key combination: [Scroll Lock] + [Scroll Lock] + [S] + “1-9”...

  • Page 13: Appendix

    Keyboard needs to be reset CS164/168 needs to Keyboard Not be reset Responding* CS164/168 is in Auto Scan Mode or Last/Next Mode Meaning Port is not selected Port is connected to an active PC Port is connected to an active PC and is being accessed in Auto Scan mode.
  • Page 14 To avoid this problem, only connect the mouse port or the keyboard port to the CS164/168 unit. If you connect the mouse port, you will need to use the notebook’s keyboard when you switch to make the notebook the active computer.

  • Page 15: Specifications

    Specifications Model No. CS 164 PC Ports Console Port PC Port Connector PS/2 Keyboard mini Din 6-pin (All Females) PS/2 Mouse mini Din 6-pin VGA HDDB 15-pin Console Port PS/2 Keyboard mini Din 6-pin Connector PS/2 Mouse mini Din 6-pin (All Females) VGA HDDB 15-pin Daisy Chain Port...

This manual is also suitable for:

Cs168
