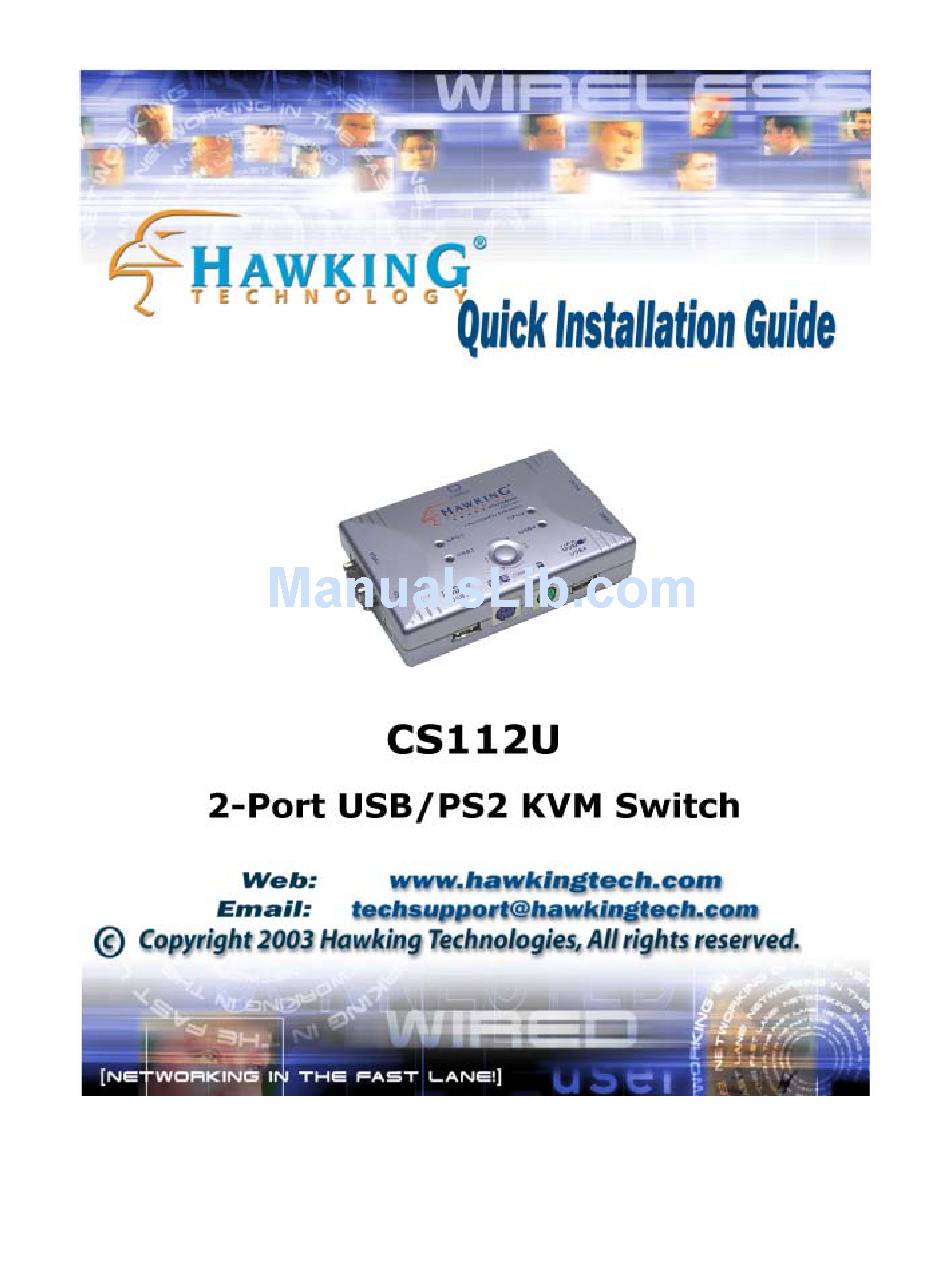

Hawking CS112U Quick Installation Manual

2-port usb/ps2 kvm switch
Hide thumbs Also See for CS112U:

Advertisement

Quick Links

Download this manual See also: User Manual

Advertisement

loading

Related Manuals for Hawking CS112U

Summary of Contents for Hawking CS112U

  • Page 2: Limited Warranty

    Hawking Customer Service in order to obtain a Return Authorization number. Warranty is for repair or replacement only. Hawking Technology does not issue any refunds. BE SURE TO HAVE YOUR PROOF OF PURCHASE. RETURN REQUESTS CANNOT BE PROCESSED WITHOUT PROOF OF PURCHASE.
  • Page 3 Quick Hardware Installation * Before Installation, please make sure that all power of peripherals and computers has been turned off. Windows 98/987SE Users: Step 1: Connect USB A-B type Cables to PC and USB KVM Switch. Type A connector of USB cable is for PC and other end is for USB KVM Switch. Step 2: Connect HDB 15-pin (Male to Male) cables to PC and KVM Switch Step 3:...
  • Page 4 Step 10: Then connect PS/2 or USB keyboard and PS/2 or USB mouse to the USB KVM Switch’s console port. Step 11: Finally, turn on all PCs and the USB KVM Switch. Windows ME/XP/NT/2000 Users: Step 1: Connect USB A-B type Cables to PC and USB KVM Switch- Type A connector for USB cables is for PCs and other end is for USB KVM Switch.
  • Page 5 DOS Users: Note: If the USB port’s motherboard BIOS is disabled in default mode and you apply USB keyboard or USB mouse to the PC, then it will not work in DOS mode. To enable the BIOS USB port, please disconnect the USB keyboard or USB mouse and connect the PS/2 keyboard to the PC’s PS/2 port.
  • Page 6 To access the USB KVM, you must press the “Scroll Lock” key twice within two seconds. Then, there will be a “beep” sound for confirmation. If this procedure has not finished within two seconds, the keyboard will return to the Operation System control state.
  • Page 7 - 6 -...
  • Page 8 Operation: USB Keyboard HotKey *USB Keyboard Users: This application is only available for PCs with Windows 98/98SE/ME/2000/XP operation systems. Press “Scroll Lock” key twice within two seconds to switch to the next channels. - 7 -...

  • Page 9: Troubleshooting

    TROUBLESHOOTING Note: If you are experiencing difficulties, first make sure that there are no problems with the cables and make sure they are all properly connected. IBM PC or Compatible: PC cannot find keyboard or mouse after the boot process. Please make sure you turn on your PC system by the PC port in order to boot Windows O.S.
  • Page 10 The reconmended keyboard or mouse cable is 10 feet maximum without degration. Normally, the cable length is based on the driver capacity of your mother board. If you need longer keyboard or mouse cables, please use keyboard or mouse extenders to get your applilcations. When you switch USB Hubs from one PC to another, please note that there are many USB devices attached to the PC, and it will take about 5 ~ 10 seconds for all USB devices to initialize.
  • Page 11 - 10 -...
