Hawking CS168 Specifications

C A R E F R E E N E T W O R K I N G
Get Connected with Hawking

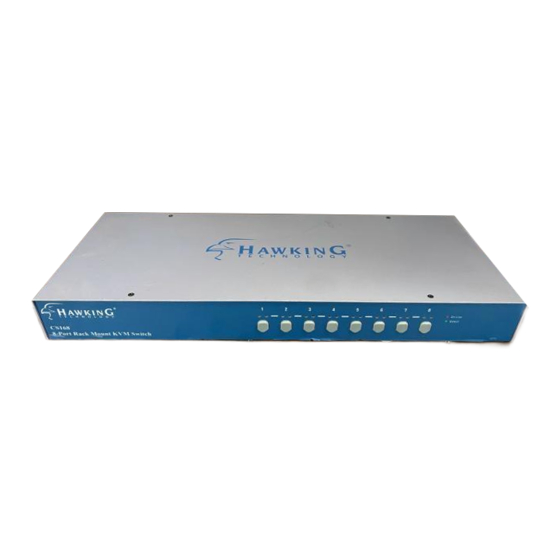

With the Hawking CS168, there is no better way to save time, money, and space.
The 8-port KVM Rack Mount Switch is an ideal SOHO solution for controlling eight computers or servers with a
single Keyboard, Monitor and Mouse. By allowing a single console to manage all the attached PCs, the 8-port
KVM Rack Mount Switch eliminates the expense of purchasing a separate keyboard, monitor, and mouse for
each PC, and saves all the extra space as well. It also eliminates the inconvenience and unnecessary effort
involved in constantly moving around from one PC to another.
Setup is fast and easy. Installation process is plug and play - there is no software to configure. To access any
PC connected to the system, there are two convenient methods: (1) using the push button port selection
switch located on top of the unit's panel; (2) entering HotKey combinations from the keyboard. In addition, a
powerful Auto Scan Control feature allows you to auto scan and monitor the activities of all operating PCs on
the installation one by one.
Features
Sturdy 19" rack-mount design
·
No Software Required - PC Selection via "Select" button on the Switch, HotKey combinations
·
Supports DOS, Win3.X, Win95/98/98SE/2000/XP, WinNT, Netware, Unix, Linux.
·
Auto Scan Mode for Monitoring Selected PCs
·
PS/2 and Serial Mouse Emulation Provided For System Bootup
·
Console's PS/2 Mouse Controls All Connected PCs
·
PS/2 Compatible Mouse Support - Microsoft Intellimouse, Intellimouse Explorer, Logitech Net Mouse or any
·
other fully compatible MS mouse.
Superior Video Quality; 1920 x 1440
·
LED Display For Easy Status Monitoring
·
Audible signal for port switching confirmation
·
Restorable keyboard status when switching PC's
·
Hot Pluggable - Add or Remove PCs for Maintenance Without Powering Down the Switch
·
System Requirements
Console Side
VGA, SVGA, or Multisync Monitor
PS/2 Mouse
PS/2 Keyboard
8-Port KVM Switch
with Rack-Mount
C O N N E C T W H E R E V E R Y O U W A N T
C S 1 68
Control 8 PCs with a Single Keyboard,
Monitor, and Mouse
Plug and Play
Two Year Warranty
PACKAGE CONTENTS:
Computer Side
VGA, SVGA, or Multisync Card
PS/2 Keyboard
PS/2 Mouse
• W H E N E V E R Y O U W A N T
One CS168 KVM Rack Mount Switch
One Rack Mount Kit Set
One User's Manual
One AC to DC Power Adapter
Cables (all male to male)
Eight HDB 15 pin VGA cables
Eight PS/2 cables for Keyboards
Eight PS/2 cables for Mice
