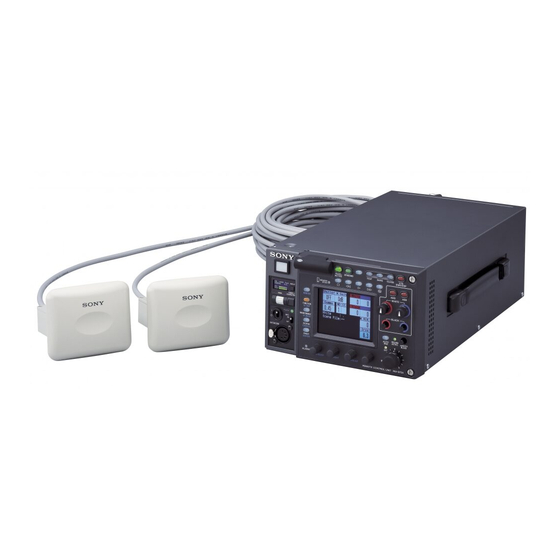

WLL-RX55
Wireless Camera Receiver
for use with the WLL-CA50 or
WLL-CA55 Wireless
camcorder adaptor
Omówienie
© 2004 - 2022 Sony Corporation. Wszystkie prawa
zastrzeżone. Zabrania się reprodukcji całości lub fragmentów
niniejszej publikacji bez pisemnego zezwolenia. Cechy i dane
techniczne mogą ulec zmianie. Wartości masy i wymiarów są
podane w przybliżeniu. Wszystkie znaki towarowe stanowią
własność odpowiednich właścicieli.
The WLL-RX55 is the receiver part of the Sony MPEG
Wireless system, which also comprises the
camcorder adaptor and camera adaptor.
Together, these models provide a stable, high quality
wireless transmission system from a Sony camera or
camcorder to a base such as an OB van. By eliminating
the cable between camera and the van, the mobility of
the camera is greatly increased. Based on 2.4 GHz
wireless technology, MPEG encoding, and COFDM
transmission, the Sony Wireless Camera System is ideal
for delivering live news from the field, or for covering
golf or similar sporting events
Cable-free operation
Cable-free operation
The new Sony MPEG Wireless Link system consists of a
small adaptor, for virtually all Sony cameras and
camcorders, together with a compact receiver. Video and
audio can be transmitted up to 500 metres to from the
camera, eliminating connecting cables. During live
transmission, the cameraman is free to move around to
catch important action and interviews, without the
constraints imposed by a cable link.
Quick Set-up
Quick Set-up
1
