1.
BEFORE STARTING
1. This set is exclusively for use in cars with a
negative ground 12 V power supply.
2. Read these instructions carefully.

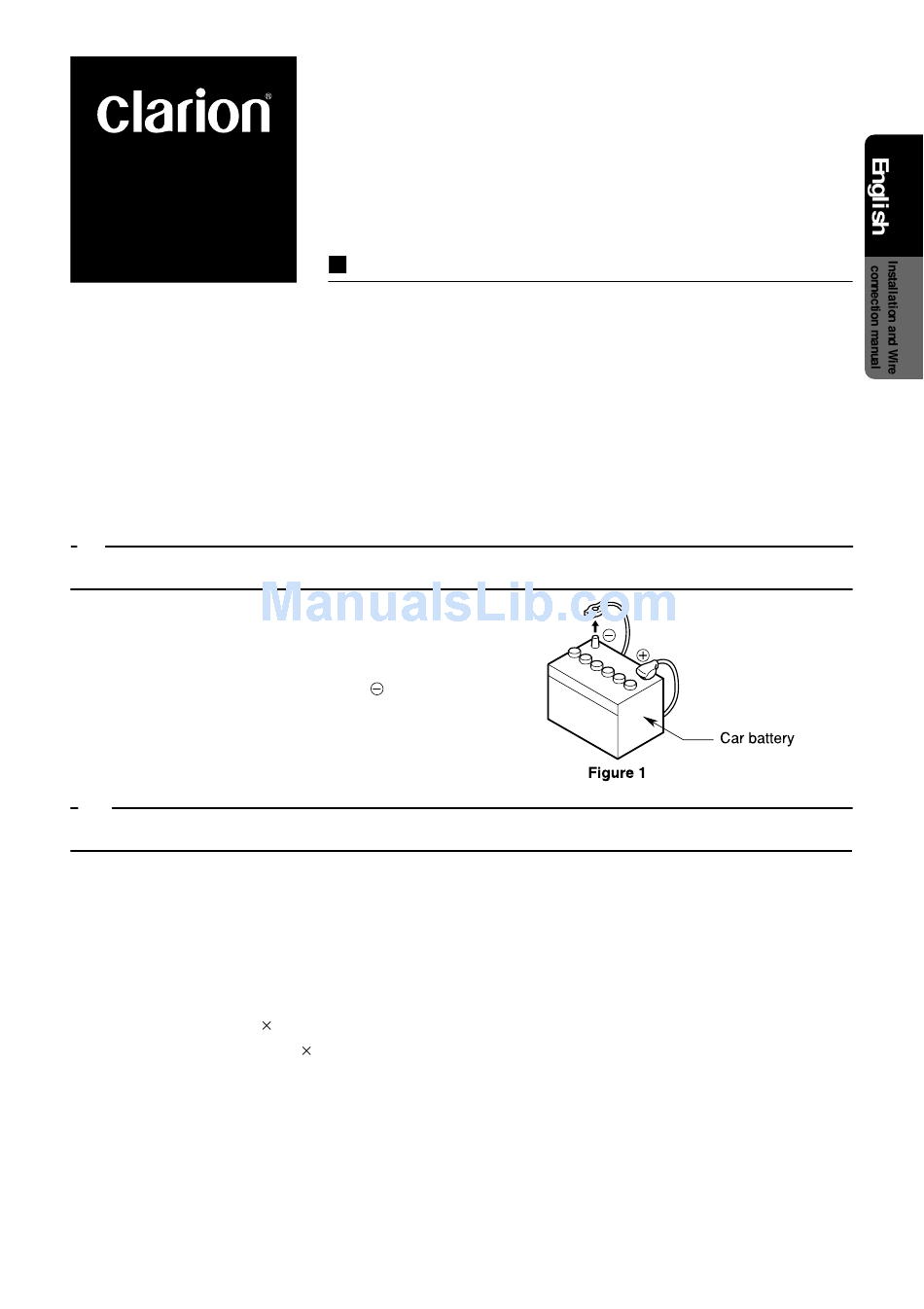

3. Be sure to disconnect the battery " " termi-
nal before starting. This is to prevent short
circuits during installation. (Figure 1)
2.
PACKAGE CONTENTS
1 Main unit
2 Manuals
Owner's manual & Installation manual
Warranty card
3 Power supply lead
4 Bag for accessories of the main unit (No. 1)
Flat head screw (M5
Sems hexagonal bolt (M5
5 Bag for accessories of the main unit (No. 2)
Hook plate..................................................2
VRX630
Installation and Wire connection manual
Contents
1. BEFORE STARTING ................................................................ 43
2. PACKAGE CONTENTS ............................................................ 43
3. GENERAL CAUTIONS ............................................................. 44
4. CAUTIONS ON INSTALLATION .............................................. 44
5. INSTALLING THE MAIN UNIT ................................................. 45
6. REMOVING THE MAIN UNIT .................................................. 47
7. CAUTIONS ON WIRING .......................................................... 47
8. WIRE CONNECTION ............................................................... 48
9. SAMPLE SYSTEMS ................................................................ 50
8)............................4
8)....................5
Cord clamp
Spacer
Special screw
6 Universal mounting bracket
7 Remote control unit
8 Battery
(for remote control unit)
9 Outer Escutcheon
0 DCP Case
43
VRX630
Advertisement
Table of Contents
Related Manuals for Clarion VRX630
Summary of Contents for Clarion VRX630
-
Page 1: Table Of Contents
Flat head screw (M5 8)...4 Sems hexagonal bolt (M5 5 Bag for accessories of the main unit (No. 2) Hook plate...2 VRX630 Installation and Wire connection manual Contents 1. BEFORE STARTING ... 43 2. PACKAGE CONTENTS ... 43 3. GENERAL CAUTIONS ... 44 4. -
Page 2: General Cautions
1. Do not open the case. There are no user ser- viceable parts inside. If you drop anything into the unit during installation, consult your dealer or an authorized CLARION service centre. CAUTIONS ON INSTALLATION 1. Prepare all articles necessary for installing the main unit before starting. -
Page 3: Installing The Main Unit
Screwdriver Main unit Outer escutcheon Notes: 1) Some car models require special mounting kits for proper installation. Consult your Clarion dealer for details. 2) Fasten the front stopper securely to prevent the main unit from coming loose. Instrument panel Hole... - Page 4 Note 1: In some cases, the centre panel may re- quire some modification (trimming, filling, etc.). VRX630 same for the other side to remove the springs from the both sides. (Figure 7) 2. Secure the mounting brackets to the chassis as shown in Figure 8.
-
Page 5: Removing The Main Unit
5. When connecting the ground lead, fasten the ground lead (black) securely to a clean metal plate on the car. (Figure 11) If the set is insufficiently grounded, it may not operate or there may be noise. Figure 11 of the hook plate, then VRX630... -
Page 6: Wire Connection
6:Connect the terminal to the lead wire on the lamp side of the parking brake lamp switch. After connection, apply the parking brake, then check that the TV displays an image. • If the PKB lead is not connected to the side brake, some units may not operate. VRX630 VISUAL/CCD/DVD changer terminal AUDIO 4CH. OUTPUT... - Page 7 • When the parking brake lead is not connected, the monitor will stay off. Parking brake lamp + lead to battery Connect these three leads. - cord parking brake signal Parking brake lead lead (bright green) Parking brake VRX630...
-
Page 8: Sample Systems
When two CD changers or MD changers are connected, CCA-519-601 is required. VRX630 To enable the correct input, it is necessary to configure the VRX630 as described on page 30. VISUAL/CCD/DVD changer terminal AV Adapter cable (CCA-389, sold separately) RCA video cable... - Page 9 TV tuner) TV Tuner (TTX7501z) AV Adapter cable (CCA-389, sold separately) CeNET Cable (included the Changer) To enable the correct input, it is necessary to configure the VRX630 as described on page CeNET Y-adapter (CCA-519-601, sold separately) CD Changer (CDC655z/655Tz/1255z/ DCZ625)
- Page 10 Mini DIN(8P) Cable (included the TV tuner) (included the CCD camera) CCD camera To enable the correct input, it is necessary to configure the VRX630 as described on page 30. CeNET Cable (included the DPH910) Digital Sound Processor CeNET Cable...
