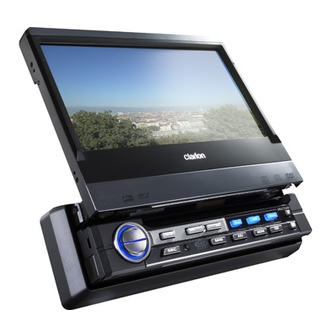

Clarion VRX775VD Service Manual
Hide thumbs
Also See for VRX775VD:
- Owner's manual & installation manual (82 pages) ,
- Owner's manual & installation manual (77 pages)
Table of Contents
Advertisement
Quick Links
This product is a lead free model.
Lead free solder is used in PWB stamped LF mark.
Please keep the following conditions when you repair.
1. Use lead free solder.
* Koki's lead free solder S3X-55M 0.6mm
(CLARION Parts No.642-0231-01)
* Koki's lead free solder S3X-55M 1.0mm
(CLARION Parts No.642-0231-02)
2. Use a nitrogen solder system.
3. Do not use "General solder" and "Lead free solder"
together.
Clarion Co., Ltd.
50 Kamitoda, Toda-shi, Saitama 335-8511 Japan
Service Dept.: 5-66 Azuma , Kitamoto-shi, Saitama 364-0007 Japan
Tel: +81-48-541-2335 / 2432 FAX: +81-48-541-2703
Service Manual
- 1 -
DVD Multmedia Station with
CeNET & 7-inch Touch Panel Con-
troller
Model
(QC-6824B-A)
(NTSC/ Region No. "1")
Model
(QC-6824K-A)
(PAL/ Region No. "3")
Model
(QC-6824K-B)
(NTSC/ Region No. "3")
Model
(QC-6824K-C)
(PAL/ Region No. "4")
SPECIFICATIONS
FM tuner section
Frequency range:
87.9MHz to 107.9MHz(B-A)
87.0MHz to 108.0MHz(K-A,B,C)
Usable sensitivity:
9dBf
50dB quieting sensitivity:
15dBf
Alternate channel selectivity:
70dB
Stereo separation:
35dB(1kHz)
Frequency response:
30Hz to 15kHz(+3/-3dB)
AM tuner section
Frequency range:
530kHz to 1710kHz(B-A)
531kHz to 1629kHz(K-A,B,C)
Usable sensitivity:
28dBu
Published by Service Dept.
298-6429-00 Mar.2007
Printed in Japan
VRX775VD
VRX776VD
