Clarion VRX630 Service Manual

6.5" monitor & fm/am radio with cd/md/dvd changer control

Advertisement

SPECIFICATIONS

FM tuner section
Frequency range:
87.9MHz to 107.9MHz
Usable sensitivity:
11dBf
50dB quieting sensitivity:
17dBf
Alternate channel selectivity:
75dB
Stereo separation:
35dB(1kHz)
Frequency response:
30Hz to 15kHz(+3/-3dB)
AM tuner section
Frequency range:
530kHz to 1710kHz
Usable sensitivity:
25dBu
Audio amplifier section
Rated power output:
17Wx4(20Hz to 20kHz,1%,4 ohm)
Maximum power output:
46Wx4
Speaker impedance:
4 ohm(4 to 8 ohm)
Input/Output section
Video input:
1.0 +0.2/-0.2Vp-p
(Input impedance 75 ohm)
Audio output:
min.200mVrms
LCD monitor section
Screen size:
6.5-inch wide type
(142mm Width x 78mm Height)
Display method:
Transmission type TN Liquid
Crystal Display
Drive method:
TFT(thin-film transistor) active
matrix driving
Pixels:
280,800(1200 x 234)
Clarion Co., Ltd.
50 Kamitoda, Toda-shi, Saitama 335-8511 Japan
Service Dept.: 5-66 Azuma , Kitamoto-shi, Saitama 364-0007 Japan
Tel: +81-48-541-2335 / 2432 FAX: +81-48-541-2703
Service Manual
- 1 -

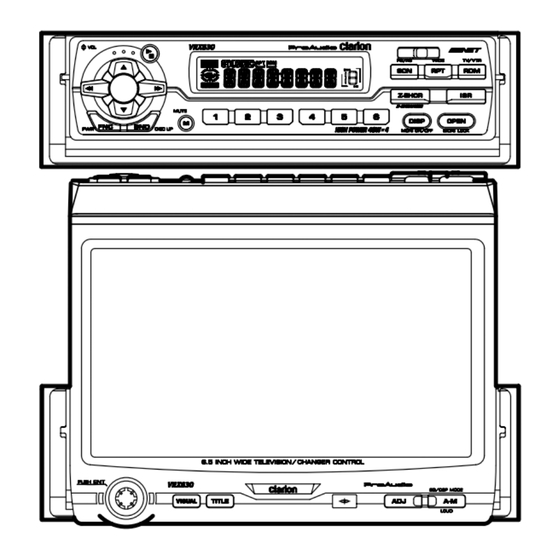

6.5" Monitor & FM/AM Radio
with CD/MD/DVD Changer Control
Model
(QC-6710B)
General
Power supply voltage: 14.4V DC
(10.8 to 15.6V allowable)
Ground:
Negative
Current consumption: 4.0A(1W)
Auto antenna rated current:
500mA less
Dimensions(mm):
Main unit
178(W)x50(H)x157(D)
Remote control unit
44(W)x110(H)x27(D)
Weight:
Main unit 1.7kg
Remote control unit 30g
(including battery)
NOTES
*
Use a CeNET extension cable that is less than 20m in
length.(including the Y-adapter CCA-519)
*
We cannot supply PWB with component parts in prin-
ciple. When a circuit on PWB has failure , please repair
it by component parts base. Parts which are not men-
tioned in service manual are not supplied.
*
CD-ROM discs cannot be played in the CD changer.
*
This unit can display title data for CD-text CDs and user
titles input with this unit.
*
Specifications and design are subject to change without
notice for further improvement.
Published by Service Dept.
298-6058-00 Feb.2003 P
Printed in Japan
VRX630

Advertisement

Table of Contents
loading

Summary of Contents for Clarion VRX630

  • Page 1: Specifications

    Clarion Co., Ltd. Published by Service Dept. 50 Kamitoda, Toda-shi, Saitama 335-8511 Japan 298-6058-00 Feb.2003 P Service Dept.: 5-66 Azuma , Kitamoto-shi, Saitama 364-0007 Japan Printed in Japan Tel: +81-48-541-2335 / 2432 FAX: +81-48-541-2703 Service Manual 6.5" Monitor & FM/AM Radio...
  • Page 2: Error Displays

    1. For the DVD changer,refer to the service manual provided with the DVD changer. 2. If an error display other than the ones described above appears, press the reset button. 3. When the reset button is pressed,frequencies of TV/radio stations,titles,etc. stored in the memory are cleared. - 2 - VRX630...
  • Page 3: Troubleshooting

    : O : LCD panel brightness control signal output. 2. RGB-AMP/CONT-G adjustment(NTSC mode) pin 25: NU : IN : Not in use. pin 26: IR OUT : O : Signal output to Remote controller. Adjust VR707(RBG AMP) so that VBB voltage of TP710 - 3 - VRX630...
  • Page 4 : No connection. pin 91: NU : IN : Not in use. pin 92: NU : IN : Not in use. pin 93: SD SPEED : O : Station detect speed control. "H"= Normal, "L"= Speed up. - 4 - VRX630...
  • Page 5: Block Diagram

    BLOCK DIAGRAM - 5 - VRX630...
  • Page 6: Exploded View Parts List

    EXPLODED VIEW / PARTS LIST DCP section LCD module section Main section Note: Please refer to page 8 when you release the LCD module from the main unit. - 6 - VRX630...
  • Page 7: Main Section

    PART NO. DESCRIPTION Q'TY PART NO. DESCRIPTION Q'TY 335-5147-00 EJECTOR 039-1521-00 FLEXIBLE PWB 750-6697-20 SPRING 378-0515-00 BADGE(Clarion) 347-5187-21 GUIDE LABEL 816-2439-50 FLAT WIRE 335-6078-00 DCP COVER 347-6110-00 INSULATOR 948-0539-00 HOOK-P-ASSY 331-2789-00 SHIELD CASE 373-0909-02 DIAL COVER 702-2605-80 TAP SCREW(2.6x5) 382-5456-02 BUTTON(ADJ/A-M)
  • Page 8 8V as the power voltage. 612-0402-00 SHAFT If the current is over 50mA,loosen the screws, and adjust the 780-2606-03 IT SCREW position of the motor assembly. 634-0017-00 MOTOR ASSY Then tighten the screws,and check the current again. 743-1500-01 E-RING - 8 - VRX630...
  • Page 9: Electrical Parts List

    010-2199-66 2.2UH J C135 042-0595-79 50V1uF C223 163-1073-35 16V100uF 010-2199-66 2.2UH J C137 168-1032-55 0.01uF C224 042-0635-50 10V47uF 074-0977-14 14P C138 042-0595-62 16V10uF C225 178-2232-78 0.022uF P101 074-0977-19 SOCKET-19P C139 042-0595-62 16V10uF C226 168-1045-56 0.1uF P102 076-0349-02 2P - 9 - VRX630...
  • Page 10 119-3331-15 1/16W 33k ohm R200 119-4731-15 1/16W 47k ohm 061-1066-00 7.2MHz R108 119-2231-15 1/16W 22k ohm R201 119-4731-15 1/16W 47k ohm R109 119-2221-15 1/16W 2.2k ohm R202 119-2231-15 1/16W 22k ohm R110 119-2721-15 1/16W 2.7k ohm - 10 - VRX630...
  • Page 11 163-1073-35 16V100uF C705 163-4753-55 35V4.7uF C702 168-1045-56 0.1uF C710 042-0528-50 35V15uF C706 166-1021-50 1000pF CH C703 166-1011-50 100pF CH C707 166-1011-50 100pF CH C711 163-3373-15 6.3V330uF C704 176-2221-50 2200pF CH C712 042-0528-50 35V15uF C708 168-1022-55 1000pF - 11 - VRX630...
  • Page 12 119-5611-15 1/16W 560 ohm C787 168-1045-56 0.1uF Q721 125-2004-93 RN1403 R770 119-1021-15 1/16W 1k ohm C788 168-1045-56 0.1uF Q722 125-2004-93 RN1403 R771 119-3351-15 1/16W 3.3M ohm C789 168-1045-56 0.1uF Q723 125-0002-92 RN2402 R772 119-1011-15 1/16W 100 ohm - 12 - VRX630...
  • Page 13 S919 013-6511-50 LS9J2M-1SR R924 119-1041-15 1/16W 100k ohm J901 076-0531-00 15P S920 013-6511-50 LS9J2M-1SR R925 119-1511-15 1/16W 150 ohm L901 010-2323-71 33uH S921 013-6511-50 LS9J2M-1SR R926 119-1511-15 1/16W 150 ohm Q901 125-0002-92 RN2402 S922 013-6511-50 LS9J2M-1SR - 13 - VRX630...
  • Page 14: Circuit Diagram

    CIRCUIT DIAGRAM DCP PWB(B4) section VRX630 - 14 -...
  • Page 15 LCD PWB(B3) section - 15 - VRX630...
  • Page 16 PRINTED WIRING BOARD COMPONENT SIDE LCD PWB(B3) / DCP PWB(B4) section to PAGE 17 J901 of LCD PWB-B to PAGE 17 P701 of LCD PWB-A Caution: COMPONENT SIDE: Parts on the component side seen from the component side are indicated. SOLDER SIDE: Parts on the solder side seen from the solder side are indicated.
  • Page 17 PAGE 16 J703 of LCD PWB-A Caution: COMPONENT SIDE: Parts on the component side seen from the component side are indicated. SOLDER SIDE: Parts on the solder side seen from the solder side are indicated. - 17 - VRX630...
  • Page 18 CIRCUIT DIAGRAM Main PWB(B1) section 1/2 VRX630 - 18 -...
  • Page 19 REAR RIGHT SP(-) C127 3300p SEL3 SEL2 REMOTE CONTROL VIDEO IN AUDIO R-IN AUDIO L-IN S-GND 8 BUS R-ch(-) BACK UP 9 SYS ACC BUS L-ch(+) 10 BUS(-) 11 BUS L-ch(-) 12 ILLUMINATION BUS(+) 13 NC BUS R-ch(+) - 19 - VRX630...
  • Page 20 COMPONENT SIDE: Parts on the component side seen from the component side are indicated. to PAGE 24 to PAGE 24 SOLDER SIDE: Parts on the solder side seen P1 of DIGITAL PWB P101 of DIGITAL PWB from the solder side are indicated. - 20 - VRX630...
  • Page 21 Caution: Main PWB(B1) section SOLDER SIDE COMPONENT SIDE: Parts on the component side seen from the component side are indicated. SOLDER SIDE: Parts on the solder side seen from the solder side are indicated. - 21 - VRX630...
  • Page 22 CIRCUIT DIAGRAM Digital PWB(B2) section 1/2 VRX630 - 22 -...
  • Page 23 Digital PWB(B2) section 2/2 - 23 - VRX630...
  • Page 24 COMPONENT SIDE SOLDER SIDE VIDEO INPUT VIDEO Caution: COMPONENT SIDE: Parts on the component side seen from the component side are indicated. SOLDER SIDE: Parts on the solder side seen from the solder side are indicated. - 24 - VRX630...
