How to Use the Top Burners
Gas Burners (Triple-ring and Semi-
rapid)

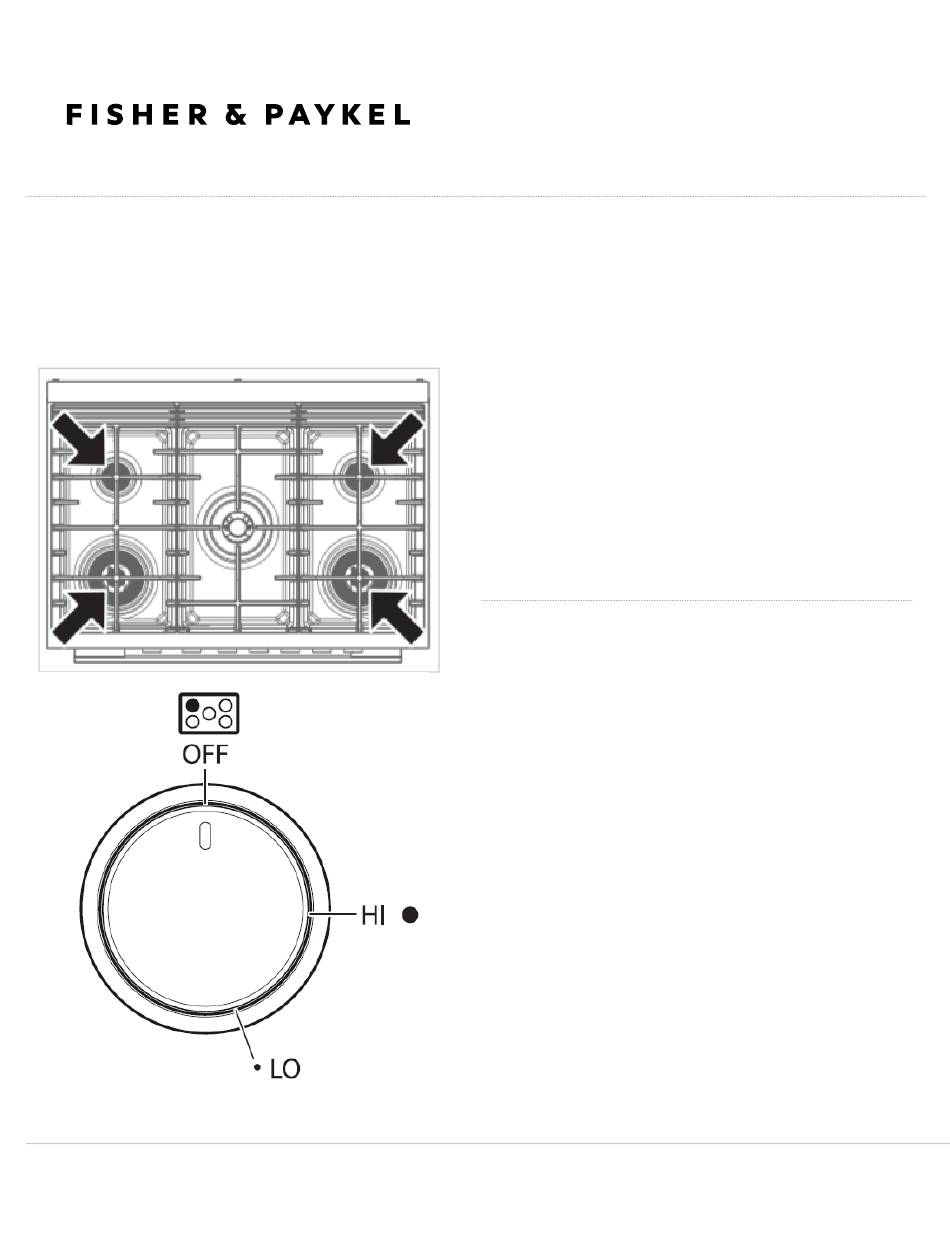

Gas flow to the burners is adjusted by turning the dials
(illustrated in fig. 2.1) which control the valves.
Turning the dial so that the symbols printed on the dial
point to the mark on the bezel achieves the following
functions:
