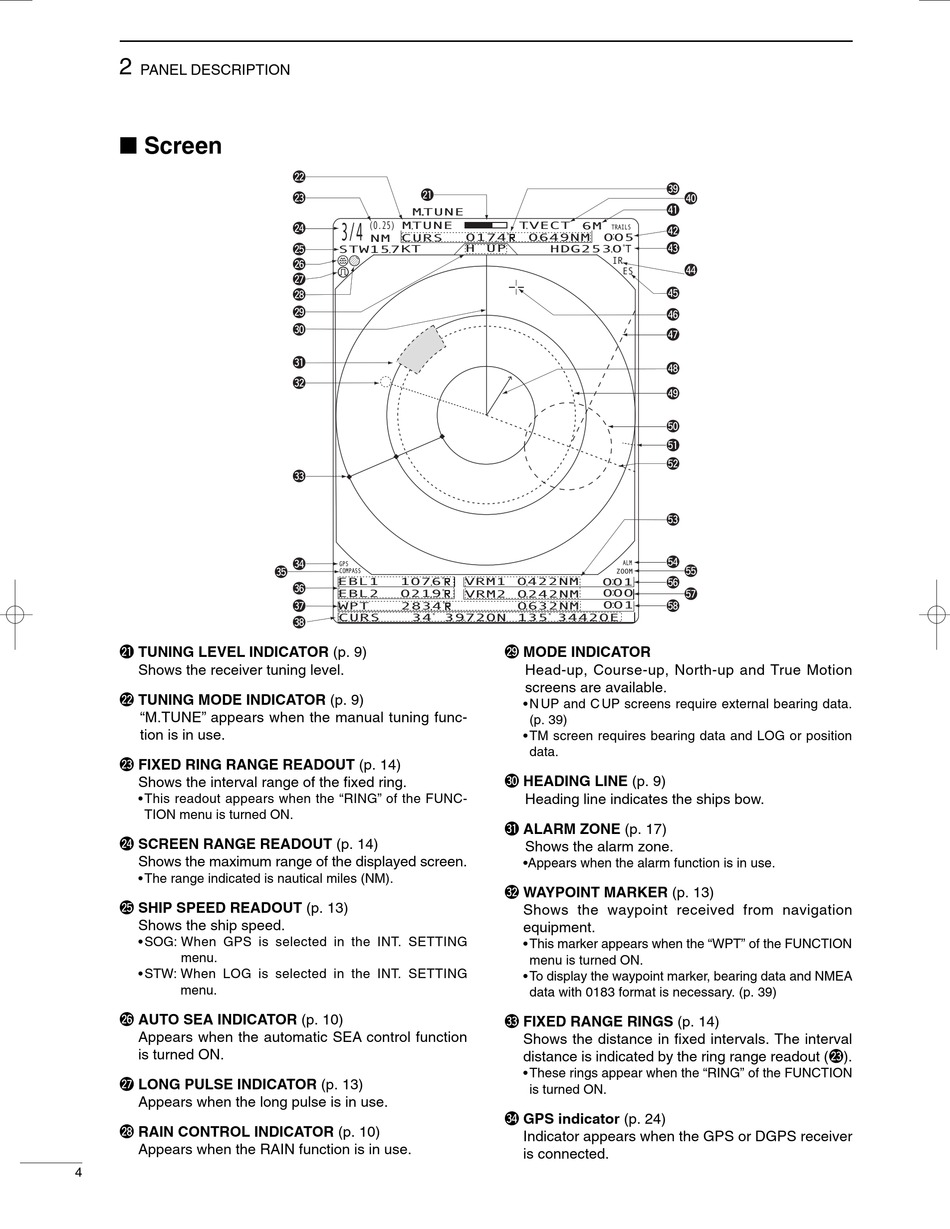

PANEL DESCRIPTION

I Screen

@1 TUNING LEVEL INDICATOR (p. 9)
Shows the receiver tuning level.
@2 TUNING MODE INDICATOR (p. 9)
"M.TUNE" appears when the manual tuning func-
tion is in use.
@3 FIXED RING RANGE READOUT (p. 14)
Shows the interval range of the fixed ring.
• This readout appears when the "RING" of the FUNC-
TION menu is turned ON.
@4 SCREEN RANGE READOUT (p. 14)
Shows the maximum range of the displayed screen.
• The range indicated is nautical miles (NM).
@5 SHIP SPEED READOUT (p. 13)
Shows the ship speed.
• SOG: When GPS is selected in the INT. SETTING
menu.
• STW: When LOG is selected in the INT. SETTING
menu.
@6 AUTO SEA INDICATOR (p. 10)
Appears when the automatic SEA control function
is turned ON.
@7 LONG PULSE INDICATOR (p. 13)
Appears when the long pulse is in use.
@8 RAIN CONTROL INDICATOR (p. 10)
Appears when the RAIN function is in use.
4
@2
@1
@3
M . TUNE
@4
(0.25) MTUNE
3/4
NM CURS
@5
STW157KT
@6
@7
@8
@9
#0
#1
#2
#3
#4
GPS
#5
COMPASS
EBL1 1076˚R
#6
EBL2 0219˚R
#7
WPT 2834˚R
#8 CURS 34˚ 39720N 135˚ 34420E
TVECT 6M
TRAILS
:
0174˚R 0649NM 005
H UP
HDG2530˚T
IR
ES
ALM
ZOOM
:
VRM1 0422NM 001
:
000
VRM2 0242NM
:
001
0632NM
@9 MODE INDICATOR
Head-up, Course-up, North-up and True Motion
screens are available.
• N UP and C UP screens require external bearing data.
(p. 39)
• TM screen requires bearing data and LOG or position
data.
#0 HEADING LINE (p. 9)
Heading line indicates the ships bow.
#1 ALARM ZONE (p. 17)
Shows the alarm zone.
•Appears when the alarm function is in use.
#2 WAYPOINT MARKER (p. 13)
Shows the waypoint received from navigation
equipment.
• This marker appears when the "WPT" of the FUNCTION
menu is turned ON.
• To display the waypoint marker, bearing data and NMEA
data with 0183 format is necessary. (p. 39)
#3 FIXED RANGE RINGS (p. 14)
Shows the distance in fixed intervals. The interval
distance is indicated by the ring range readout (@3 ) .
• These rings appear when the "RING" of the FUNCTION
is turned ON.
#4 GPS indicator (p. 24)
Indicator appears when the GPS or DGPS receiver
is connected.
