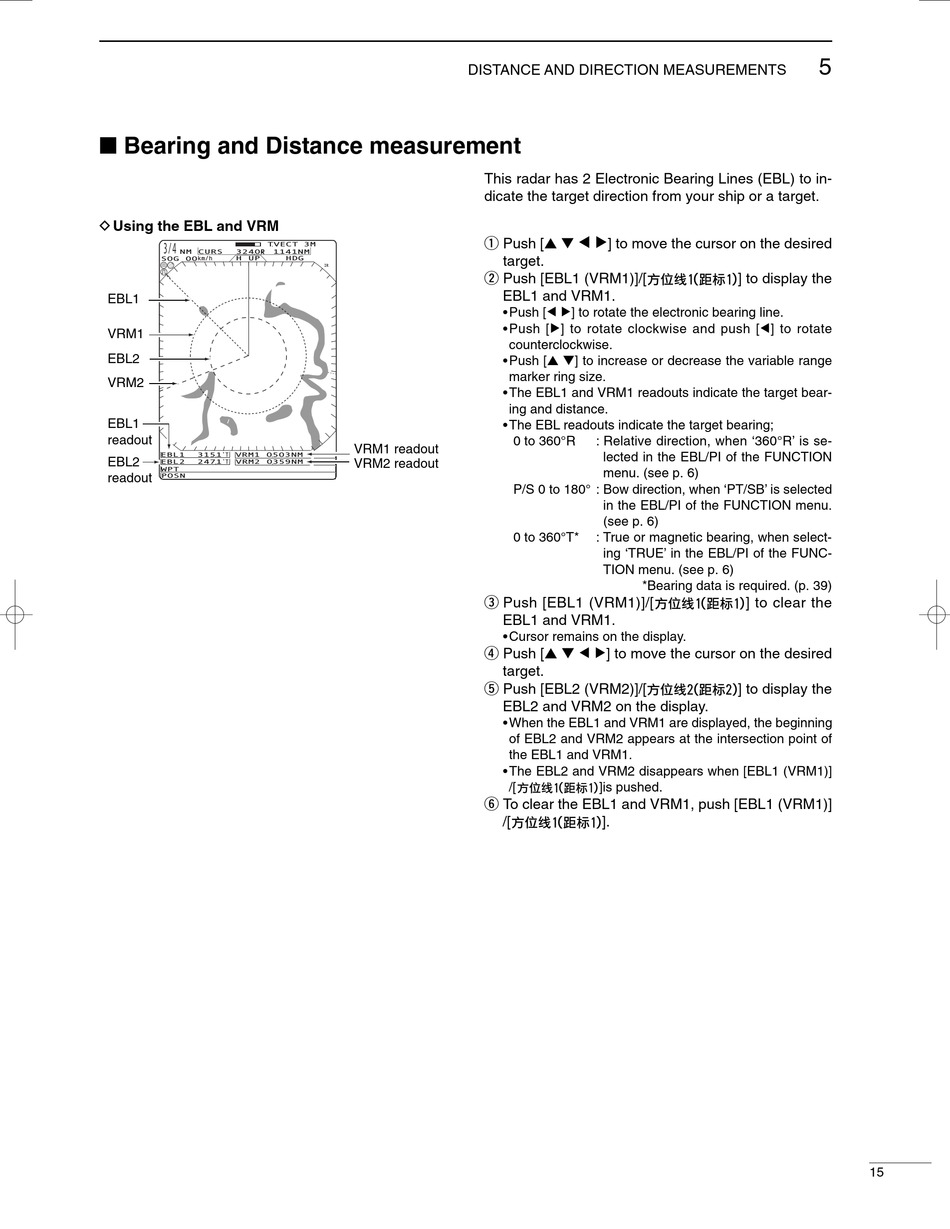

I Bearing and Distance measurement

D Using the EBL and VRM
3/4
3240R
NM CURS
SOG 00km/h H UP
EBL1
VRM1
EBL2
VRM2
EBL1
readout
EBL1 3151˚T VRM1 0503NM
EBL2
EBL2 2471˚T VRM2 0359NM
WPT 34
readout
POSN
TVECT 3M
1141NM
HDG
IR
VRM1 readout
VRM2 readout
DISTANCE AND DIRECTION MEASUREMENTS
This radar has 2 Electronic Bearing Lines (EBL) to in-
dicate the target direction from your ship or a target.
q Push [
to move the cursor on the desired
target.
w Push [EBL1 (VRM1)]/[
EBL1 and VRM1.
• Push [ ] to rotate the electronic bearing line.
• Push [ ] to rotate clockwise and push [ ] to rotate
counterclockwise.
• Push [ ] to increase or decrease the variable range
marker ring size.
• The EBL1 and VRM1 readouts indicate the target bear-
ing and distance.
• The EBL readouts indicate the target bearing;
0 to 360°R : Relative direction, when '360°R' is se-
lected in the EBL/PI of the FUNCTION
menu. (see p. 6)
P/S 0 to 180° : Bow direction, when 'PT/SB' is selected
in the EBL/PI of the FUNCTION menu.
(see p. 6)
0 to 360°T* : True or magnetic bearing, when select-
ing 'TRUE' in the EBL/PI of the FUNC-
TION menu. (see p. 6)
e Push [EBL1 (VRM1)]/[
EBL1 and VRM1.
• Cursor remains on the display.
r Push [
to move the cursor on the desired
target.
t Push [EBL2 (VRM2)]/[
EBL2 and VRM2 on the display.
• When the EBL1 and VRM1 are displayed, the beginning
of EBL2 and VRM2 appears at the intersection point of
the EBL1 and VRM1.
• The EBL2 and VRM2 disappears when [EBL1 (VRM1)]
/[ ]is pushed.
y To clear the EBL1 and VRM1, push [EBL1 (VRM1)]
/[ ].
] to display the
*Bearing data is required. (p. 39)
] to clear the
] to display the
