4

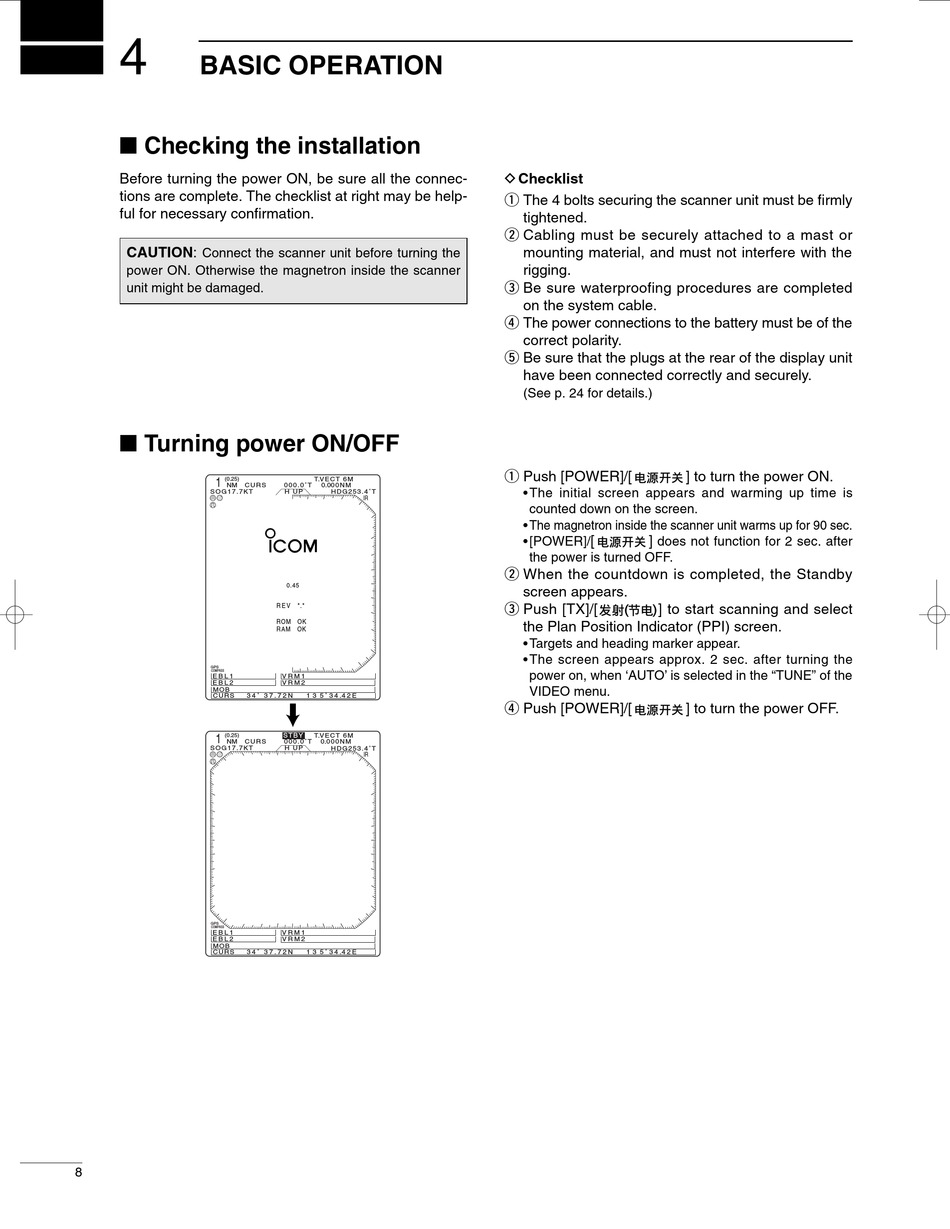

BASIC OPERATION

I Checking the installation

Before turning the power ON, be sure all the connec-
tions are complete. The checklist at right may be help-
ful for necessary confirmation.
CAUTION:
Connect the scanner unit before turning the
power ON. Otherwise the magnetron inside the scanner
unit might be damaged.

I Turning power ON/OFF

1 (0.25)
NM
S O G 1 7 . 7 K T
GPS
COMPASS
E B L 1
E B L 2
MOB
C U R S
1 (0.25)
NM
S O G 1 7 . 7 K T
GPS
COMPASS
E B L 1
E B L 2
MOB
C U R S
8
T.V E C T 6 M
C U R S
0 0 0 . 0 ˚ T 0.00 0 N M
H U P H D G 2 5 3 . 4 ˚ T
IR
0.45
R E V *.*
ROM OK
RAM OK
V R M 1
V R M 2
3 4 ˚ 3 7 . 7 2 N
1 3 5 ˚ 3 4 .4 2 E
STBY T.V E C T 6 M
C U R S 0 0 0 . 0 ˚ T 0.0 0 0 N M
H U P H D G 2 5 3 . 4 ˚ T
IR
V R M 1
V R M 2
3 4 ˚ 3 7 . 7 2 N 1 3 5 ˚ 3 4 .4 2 E
D Checklist
q The 4 bolts securing the scanner unit must be firmly
tightened.
w Cabling must be securely attached to a mast or
mounting material, and must not interfere with the
rigging.
e Be sure waterproofing procedures are completed
on the system cable.
r The power connections to the battery must be of the
correct polarity.
t Be sure that the plugs at the rear of the display unit
have been connected correctly and securely.
(See p. 24 for details.)
q Push [POWER]/[
• The initial screen appears and warming up time is
counted down on the screen.
• The magnetron inside the scanner unit warms up for 90 sec.
[ ]
• [POWER]/ does not function for 2 sec. after
the power is turned OFF.
w When the countdown is completed, the Standby
screen appears.
e Push [TX]/[
] to start scanning and select
the Plan Position Indicator (PPI) screen.
• Targets and heading marker appear.
• The screen appears approx. 2 sec. after turning the
power on, when 'AUTO' is selected in the "TUNE" of the
VIDEO menu.
r Push [POWER]/[
] to turn the power ON.
] to turn the power OFF.
