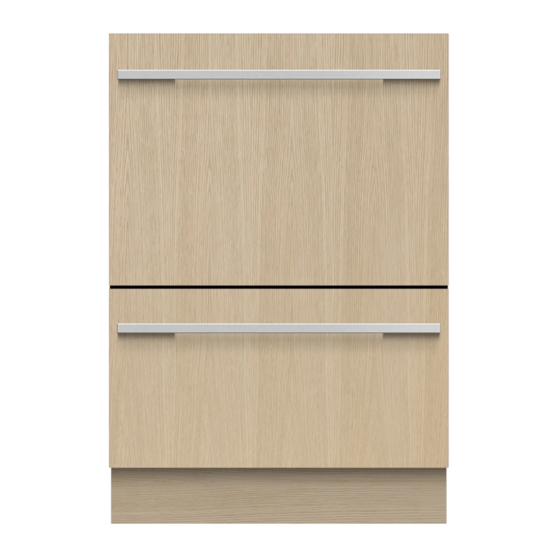

- Page 1 DOUBLE DISHDRAWER™ DISHWASHER INTEGRATED DD24DTX6I, DD24DTX6HI INSTALLATION GUIDE US CA...
-
Page 3: Safety And Warnings
SAFETY AND WARNINGS WARNING! WARNING! Electric Shock Hazard Electric Shock Hazard Failure to follow this advice may result in Failure to follow this advice may result in electrical shock or death. electrical shock or death. • Fitting an integrated panel requires access to •... - Page 4 SAFETY AND WARNINGS WARNING! To reduce the risk of fire, injury to persons or damage when using the appliance, follow the important safety instructions listed below. Read all the guidance before using the appliance. Servicing Do not repair or replace any part of the appliance unless specifically recommended in this guide.
-
Page 5: Tools And Components
TOOLS AND COMPONENTS PARTS SUPPLIED TOOLS REQUIRED Keep all packing materials until the unit has been inspected. Not supplied Inspect the product to ensure there is no shipping damage. If any damage is detected contact the dealer or retailer you bought the product from to report the damage. Fisher &... -
Page 6: Product Dimensions
PRODUCT DIMENSIONS PRODUCT DIMENSIONS INCHES A Overall height* 34 – 36 3/8 864 – 924 B Overall width** 23 9/16 C Overall depth*** 22 1/2 D Height of chassis 33 11/16 E Depth of chassis 21 3/4 F Ventilation gap between door panels 5/16 G Depth of toe kick recess** PLAN ISOMETRIC... -
Page 7: Custom Panel Dimensions
CUSTOM PANEL DIMENSIONS Material specifications Maximum weight of door panels must not exceed 20lb (9kg) (including handle) The panel should be adequately sealed to withstand moisture (122°F/50°C @ 80% RH). The back and sides of the panel should be completely sealed with a waterproof vapour barrier, such as polyurethane, to prevent damage. - Page 8 CABINETRY DIMENSIONS CLEARANCES Connections can be located in an adjacent cabinet on either side of the DishDrawer™ Dishwasher*** PLAN ISOMETRIC CABINETRY DIMENSIONS INCHES CABINETRY CLEARANCES INCHES A Minimum inside height* A Minimum clearance to adjacent cupboard door 1/16 B Inside width 23 5/8 B Minimum clearance to corner cupboard *Access to both sides of the product will be required during installation.
- Page 9 PLUMBING & ELECTRICAL CONSIDERATIONS Hose and cord lengths Your services can be installed to either the left-hand or right-hand side of the product in an adjacent cabinet. Refer to 'Preparation' for service access requirements. If the drain hoses supplied are not long enough to reach your services, you may purchase a Fisher &...
- Page 10 HARD-WIRING (OPTIONAL) You have the option to hard-wire your DishDrawer™ Dishwasher. To do this, we recommend to remove the supplied power cord and do the hardwiring installation as close to the cavity as possible. Lift the cover upwards until you are able to pull out towards you to remove.
- Page 11 HARD WIRING (OPTIONAL) Fix the Live and Neutral wires to the terminal block and the Earth wire to Ensure the hoses are not twisted before the chassis. refitting the drawer to the runners and clipping into place via both locking tabs. rear L rib hook...
-
Page 12: Service Access
PREPARATION SERVICE ACCESS MOISTURE PROTECTION We recommend locating the service holes on either side of the DishDrawer™ Dishwasher as shown below. If the holes are created through wood, ensure the edges are smooth and rounded If the holes are created through metal, ensure the supplied edge protector is fitted. Align the supplied moisture protection Ensure power cord is routed through a separate service hole to the hoses. - Page 13 PUSH THE PRODUCT INTO THE CAVITY FIT CUSTOM DOOR PANELS Remove both side pins from each drawer If securing to cabinetry via method A by twisting a quarter-turn towards the product front. Pull outwards to Secure all four side brackets to the remove pin.
- Page 14 FIT CUSTOM DOOR PANELS Re-insert both side pins to each drawer Snap the bracket tab to remove. by pushing in and twisting a quarter-turn towards the rear of the product to secure panels into place. Attach the Knock-to-Pause module to the panels as shown.
- Page 15 SECURE TO CABINETRY VIA BRACKETS (METHOD A) SECURE TO CABINETRY VIA DRAWER REMOVAL (METHOD B) Open the lower drawer and press both locking tabs back to release. Partially open one of the drawers and remove the first screw cover from the trim moulding.
- Page 16 SECURE TO CABINETRY VIA DRAWER REMOVAL (METHOD B) INSTALL PRE-FINISHED TOE KICK Before refitting the drawer, ensure the Measure toe kick height against the hoses are not twisted. base of the lower tub. Carefully score toe kick at desired height. Refit the drawer to the runners and clip into place via both locking tabs.
- Page 17 INSTALL CUSTOM TOE KICK Align the custom panel to the recessed Re-align the custom panel to the pre-finished panel, referring to 'Custom recessed panel and secure using the panel dimensions' for guidance. provided screws. Mark a section of the recessed panel to Pre-drilling the screw bosses is be removed, ensuring it is shorter than recommended for optimal results.
- Page 18 PLUMBING & ELECTRICAL CONNECTION Ø38MM STANDPIPE INSTALLATION SINK TRAP/WASTE TEE INSTALLATION Install the drain hose support to the back wall, as close to the underside of Install the drain hose support to the the countertop as possible. Refer to back wall, as close to the underside of 'Plumbing &...
- Page 19 PLUMBING & ELECTRICAL CONNECTION DUAL AIR GAP INSTALLATION SINGLE AIR GAP INSTALLATION We recommend installing a Dual Air Gap Kit to your benchtop like Install your single Air Gap Kit to the shown. This is the preferred Air Gap benchtop like shown. installation method.
-
Page 20: Installer Checklist
INSTALLER CHECKLIST TO BE COMPLETED BY THE INSTALLER Electrical … Ensure all electrical tests have been conducted in accordance with local regulations. Installation … Check all parts are installed correctly and are secure. Test operation … Ensure all clearance gaps have been maintained. …... -
Page 21: Troubleshooting
TROUBLESHOOTING No program indicator lights up when the drawer is opened DISPLAY POSSIBLE CAUSE WHAT TO DO Ensure power is connected and is switched on. Water 1 Ensure the water supply is turned on. may need to be activated. Refer to your user guide for details. AUTO POWER-ON Supply fault. - Page 22 FISHERPAYKEL.COM © Fisher & Paykel Appliances 2021. All rights reserved. The models shown in this guide may not be available in all markets and are subject to change at any time. The product specifications in this guide apply to the specific products and models described at the date of issue.
