1

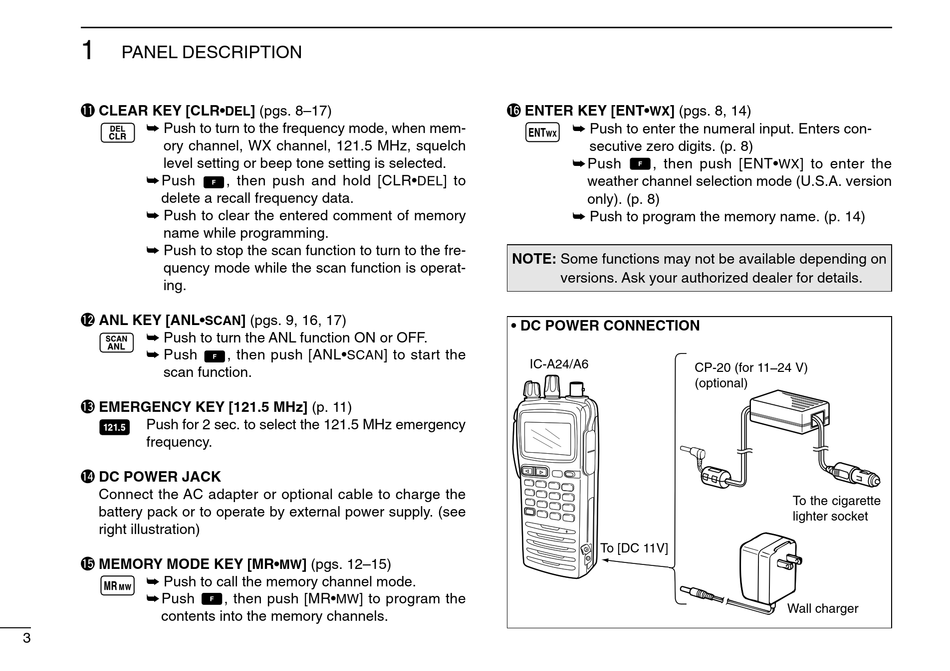

PANEL DESCRIPTION
!1 CLEAR KEY [CLR•
➥ Push to turn to the frequency mode, when mem-
ory channel, WX channel, 121.5 MHz, squelch
level setting or beep tone setting is selected.
➥ Push
delete a recall frequency data.
➥ Push to clear the entered comment of memory
name while programming.
➥ Push to stop the scan function to turn to the fre-
quency mode while the scan function is operat-
ing.
!2 ANL KEY [ANL•
➥ Push to turn the ANL function ON or OFF.
➥ Push
scan function.
!3 EMERGENCY KEY [121.5 MHz] (p. 11)
Push for 2 sec. to select the 121.5 MHz emergency
frequency.
!4 DC POWER JACK
Connect the AC adapter or optional cable to charge the
battery pack or to operate by external power supply. (see
right illustration)
!5 MEMORY MODE KEY [MR•
➥ Push to call the memory channel mode.
➥ Push
contents into the memory channels.
3
] (pgs. 8–17)
DEL
, then push and hold [CLR•
] (pgs. 9, 16, 17)
SCAN
, then push [ANL• ] to start the
SCAN
] (pgs. 12–15)
MW
, then push [MR• ] to program the
MW
!6 ENTER KEY [ENT•
➥ Push to enter the numeral input. Enters con-
secutive zero digits. (p. 8)
➥ Push
] to
weather channel selection mode (U.S.A. version
DEL
only). (p. 8)
➥ Push to program the memory name. (p. 14)
NOTE: Some functions may not be available depending on
versions. Ask your authorized dealer for details.
• DC POWER CONNECTION
IC-A24/A6
] (pgs. 8, 14)
WX
, then push [ENT•
WX
CP-20 (for 11 24 V)
(optional)
To [DC 11V]
] to enter the
To the cigarette
lighter socket
Wall charger
