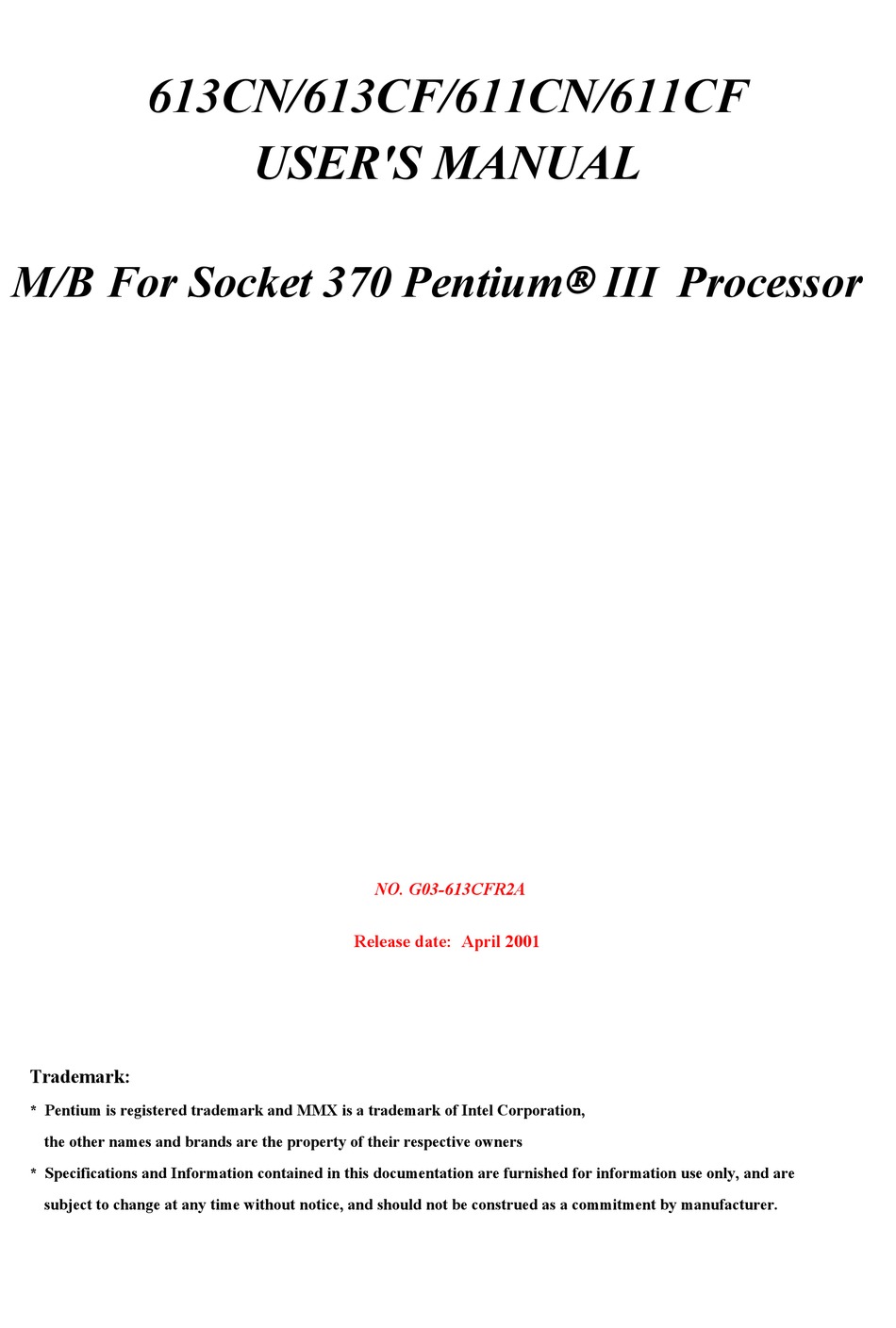

613CN/613CF/611CN/611CF
M/B For Socket 370 Pentium
Trademark:
* Pentium is registered trademark and MMX is a trademark of Intel Corporation,
the other names and brands are the property of their respective owners
* Specifications and Information contained in this documentation are furnished for information use only, and are
subject to change at any time without notice, and should not be construed as a commitment by manufacturer.
USER'S MANUAL
NO. G03-613CFR2A
Release date: April 2001
III
Processor
Advertisement
Table of Contents
Related Manuals for JETWAY 613CN
Summary of Contents for JETWAY 613CN
- Page 1 613CN/613CF/611CN/611CF USER'S MANUAL M/B For Socket 370 Pentium Processor NO. G03-613CFR2A Release date: April 2001 Trademark: * Pentium is registered trademark and MMX is a trademark of Intel Corporation, the other names and brands are the property of their respective owners * Specifications and Information contained in this documentation are furnished for information use only, and are subject to change at any time without notice, and should not be construed as a commitment by manufacturer.
-
Page 2: Table Of Contents
TABLE OF CONTENT USER’S NOTICE................ii MANUAL REVISION INFORMATION..........1 THERMAL SOLUTIONS..................1 CHAPTER 1 INTRODUCTION OF 613CN/613CF/611CN/611CF MOTHERBOARD 1-1 FEATURE OF MOTHERBOARD...............2 1-2 SPECIFICATION...................3 1-3 PERFORMANCE LIST.................4 1-4 LAYOUT DIAGRAM & JUMPER SETTING..........5 CHAPTER 2 HARDWARE INSTALLATION 2-1 HARDWARE INSTALLATION STEPS............7 2-2 CHECKING MOTHERBAORD'S JUMPER SETTING......7 2-3 INSTALL CPU....................9... -
Page 3: User's Notice
ANY FORM OR BY ANY MEANS WITHOUT WRITTEN PERMISSION OF THE MANUFACTURER. THIS MANUAL CONTAINS ALL INFORMATION REQUIRED TO USE 613CN/613CF/ 611CN/611CF MOTHER-BOARD AND WE DO ASSURE THIS MANUAL MEETS USER’S REQUIREMENT BUT WILL CHANGE, CORRECT ANY TIME WITHOUT NOTICE. -
Page 4: Manual Revision Information
Cable for IDE/Floppy CD for motherboard utilities Cable for COM2 613CN/613CF/611CN/611CF User’s Manual Intel Processor Family Thermal Solutions As processor technology pushes to faster speeds and higher performance, thermal management becomes increasingly crucial when building computer systems. -
Page 5: Chapter 1 Introduction Of 613Cn/613Cf/611Cn/611Cf Motherboard
810E chipset also includes integrated 3D Graphic Acceleration to provide a lower cost video display solution. With USB control as well as capability of expanding to 2 USB connectors, the 613CN/ 613CF/611CN/611CF meet future USB demand. Moreover, it has built-in hardware monitor function to monitor and protect your computer. -
Page 6: Specification
Spec Description Micro ATX form factor 4 layers PCB size: 24.5 x 22.0 cm Design INTEL 810E Chipset for 613CN/613CF to support up to Chipset 133MHz F.S.B. INTEL 810 Chipset for 611CN/611CF to support up to 100MHz F.S.B. -
Page 7: Performance List
1-3 Performance List The following performance data list is the testing result of some popular benchmark testing programs. These data are just referred by users, and there is no responsibility for different testing data values gotten by users (the different Hardware & Software configuration will result in different benchmark testing results.) ... -
Page 8: Layout Diagram & Jumper Setting
1-4 Layout Diagram & Jumper Setting Only for 613CF/611CF Jumpers... -
Page 9: Chapter 2 Hardware Installation
Jumper Name Description Page JP6, JP7, CPU & SDRAM Frequency Setting 3-pin Block JP17, JP18 2-pin Block Keyboard Power ON Function Setting 3-pin Block Clear Keyboard Power On Password Setting 3-pin Block JP13 CMOS RAM Clear 3-pin Block JP10 BIOS boot block lock 2-pin Block Connectors Connector... -
Page 10: Hardware Installation Steps
66/100 100/100 133/100 Only for 613CN/613CF Keyboard Power On Function setting (3-pin): JP3 This allows you to disable the keyboard power on function. Set the jumper to enabled or disabled if you wish to use your keyboard (by pressing < >) to power on your computer, this feature requires an ATX power supply that can supply at least 300mA on the +5VSB lead. -
Page 11: Install Cpu
You can set keyboard power on function password to assure computer security to setting password through BIOS SETUP, and you can clear keyboard power on password by JP2. CMOS RAM Clear (3-pin): JP13 A battery must be used to retain the motherboard configuration in CMOS RAM short 1-2 pins of JP13 to store the CMOS data. -
Page 12: About Pentium & Celeron™ 370-Pin Cpu
2-3-1 About Pentium III & Celeron™ 370-pin CPU This motherboard supports both Pentium III & Celeron 370 pins CPU. The way to recognize the specification of CPU from the packing Pentium III 370 pins FC-PGA On the surface of the CPU as shown on the right picture, under the word of “PENTIUM III”... -
Page 13: Install Cpu
JP17, JP18 all off (open). Will form CPU BUS CLOCK be 133MHz and SDRAM CLOCK be 100MHz. For experience user looking for over clocking, please refer to sec 2-3-4 2-3-3 Install CPU This motherboard provides a ZIF socket 370. The CPU that comes with the motherboard should have a cooling FAN attached to prevent overheating. - Page 14 WARNING! This section is for experienced motherboard installer only. Over clocking can result in system instability or even shortening life of the processor. After setting the Jumper JP17, JP18 and JP6, JP7 you can choose over clock running by BIOS CMOS SETUP UTILITY. When you entered CMOS SETUP UTILITY, choose “Miscellaneous Control”...
-
Page 15: Install Memory
Spread Spectrum Disabled CPU/SDRAM Clock Default Menu Level > CPU Clock Ratio Cyrix III Clock Ratio Default :Move Enter:Select +/-/PU/PD:Value F10:Save ESC:Exit F1:General Help F5:Previous Values F6:Optimized Defaults F7:Standard Defaults JP17 JP18 CPU Bus Clock SDRAM Clock CMOS Setup Utility - Copyright (C) 1984-2000 Award Software Miscellaneous Control Auto Detect DIMM/PCI Clk Enabled... -
Page 16: Expansion Card
This motherboard provides 168-pin DUAL INLINE MEMORY MODULES (DIMM) sites for memory expansion available from minimum memory size over 32MB to maximum memory size of 512MB SDRAM. Valid Memory Configurations Total Memory DIMM1 DIMM2 System Accept or Not Min. Max. DS/SS Accept 32MB256MB... -
Page 17: Procedure For Expansion Card Installation
WARNING! Turn off your power when adding or removing expansion cards or other system components. Failure to do so may cause severe damage to both your motherboard and expansion cards. 2-5-1 Procedure For Expansion Card Installation Read the documentation for your expansion card and make any necessary hardware or software setting for your expansion card such as jumpers. -
Page 18: Connectors, Headers
PCI slot2 Shared PCI slot3 Not Shared Onboard LAN Shared Onboard VGA AC97/MC97 Shared Onboard USB Shared IMPORTANT! If using PCI cards on shared slots, make sure that the drivers support “Shared IRQ”... - Page 19 USB Port connector: USB The connectors are 4-pins connector that connect USB devices to the system board. (4) LAN Connector: LAN (Only for 613CF/611CF) This connector is standard RJ45 connector for Network connector. Parallel Port Connector (25-pin female): PRINT Parallel Port connector is a 25-pin D-Subminiature Receptacle connector. The On-board Parallel Port can be disabled through the BIOS SETUP.
- Page 20 Chapter 3 “INTEGRATED PERIPHERALS SETUP” section for more detail information. VGA Connector (15-pin female): VGA Audio and Game Connector : AGC This Connector are 3 phone Jack for LINE-OUT, LINE-IN, MIC and a 15-pin D-Subminiature Receptacle Connector for joystick/MIDI Device. Line-out : Audio output to speaker Line-in :...
- Page 21 COM1 is the 9-pin D-Subminiature mail connector. The On-board serial port can be disabled through BIOS SETUP. Please refer to Chapter 3 “INTEGRATED PERIPHERALS SETUP” section for more detail information. Floppy Drive Connector (34-pin block): FDD This connector supports the provided floppy drive ribbon cable. After connecting the single plug end to motherboard, connect the two plugs at other end to the floppy drives.
-
Page 22: Headers
This connector connects to the next set of Master and Slave hard disks. Follow the same procedure described for the primary IDE connector. You may also configure two hard disks to be both Masters using one ribbon cable on the primary IDE connector and another ribbon cable on the secondary IDE connector. - Page 23 Turbo LED switch: TBLED Since the motherboard’s turbo function is always on. The turbo LED will remain constantly on while the system power is on. You may wish to connect the Power LED from the system case to this lead. See the figure below. Reset switch lead: RST This 2-pin connector connects to the case-mounted reset switch for rebooting your computer without having to turn off your power switch.
- Page 24 (11) IR infrared module Headers (10-pin) : IR This connector supports the optional wireless transmitting and receiving infrared module. You must configure the setting through the BIOS setup to use the IR function. (12) CD Audio-In Headers (4-pin) : CDIN-1, CDIN-2 CDIN-1 and CDIN-2 are the connectors for CD-Audio Input signal.
-
Page 25: Starting Up Your Computer
2-7 Starting Up Your Computer 1. After all connections are made, close your computer case cover. 2. Be sure all the switch are off, and check that the power supply input voltage is set to proper position, usually in-put voltage is 220V240V or 110V120V depending on your country’s voltage used. -
Page 26: Chapter 3 Introducing Bios
If you do not see any thing within 30 seconds from the time you turn on the power. The system may have failed on power-on test. Recheck your jumper settings and connections or call your retailer for assistance. Beep Meaning One short beep when displaying logo No error during POST Long beeps in an endless loop... -
Page 27: Entering Setup
Press (up, down, left, right) to choose, in the main menu, the option you want to confirm or to modify. Press <F10> when you have completed the setup of BIOS parameters to save these parameters and to exit the BIOS Setup menu. ... - Page 28 Advanced BIOS Features Advanced Chipset Features Load optimized Defaults Integrated Peripherals Load Standard Defaults Power Management Setup Set Supervisor Password PnP/PCI Configurations Set User Password PC Health Status Save & Exit Setup Exit Without Saving Esc : Quit : Select Item ↑↓→...
-
Page 29: Standard Cmos Features
Use this menu to load the BIOS default values that are factory settings for optimal performances system operations. Load Standard Defaults Use this menu to load the BIOS default values for the minimal/stable performance system operation. Set Supervisor/User Password Use this menu to set User and Supervisor Passwords. Save &... -
Page 30: Advanced Bios Features
↑↓→← Move Enter:Select Item +/-/PU/PD:Value F10:Save ESC:Exit F1:General Help F5:Previous Values F6:Optimized Defaults F7:Standard Defaults Date The date format is <day><month><date><year>. Day of the week, from Sun to Sat, determined by BIOS. Read-only. Month The month from Jan. through Dec. Date The date from 1 to 31 can be keyed by numeric function keys. - Page 31 Menu Level > Processor Number Feature Enabled Quick Power On Self Test Enabled Allows you to choose First Boot Device Floppy the VIRUS warning Second Boot Device HDD-0 feature for IDE Hard Third Boot Device LS120 disk boot sector Fourth Boot Device Enabled protection.
- Page 32 This option is for Pentium III processor. During Enabled, this will check the CPU Serial number. Disabled this option if you don’t want the system to know the Serial number. Quick Power On Self-Test This category speeds up Power On Self Test (POST) after you power on the computer. If this is set to Enabled.
-
Page 33: Advanced Chipset Features
Sets the number of times a second to repeat a keystroke when you hold the key down. The settings are: 6, 8, 10, 12, 15, 20, 24, and 30. Typematic Delay (Msec) Sets the delay time after the key is held down before is begins to repeat the keystroke. The settings are 250, 500, 750, and 1000. - Page 34 SDRAM CAS Latency Time When synchronous DRAM is installed, the number of clock cycles of CAS latency depends on the DRAM timing. The settings are: 2 and 3. SDRAM Cycle Time Tras/Trc Select the number of SCLKs for an access cycle. The settings are: 5/7 and 6/8. SDRAM RAS-to-CAS Delay This field let’s you insert a timing delay between the CAS and RAS strobe signals, used when DRAM is written to, read from, or refreshed.
-
Page 35: Integrated Peripherals
3-7 Integrated Peripherals CMOS Setup Utility – Copyright(C) 1984-2000 Award Software Integrated Peripherals > OnBoard IDE Function Press Enter Item Help > OnBoard PCI DEVICE Press Enter > Winbond SuperIO Device Press Enter Init Display First PCI Slot Menu Level > ... -
Page 36: Onboard Pci Device
F5:Previous Values F6:Optimized Defaults F7:Standard Defaults On-Chip IDE Primary/Secondary PCI IDE The integrated peripheral controller contains an IDE interface with support for two IDE channels. Select Enabled to activate each channel separately. The settings are: Enabled and Disabled. IDE Primary/Secondary Master/Slave PIO The four IDE PIO (Programmed Input/Output) fields let you set a PIO mode (0-4) for each of the four IDE devices that the onboard IDE interface supports. -
Page 37: Winbond Superio Device
USB Controller Select Enabled if your system contains a Universal Serial Bus (USB) controller and you have USB peripherals. The settings are: Enabled, Disabled. USB Keyboard Support Select Enabled if your system contains a Universal Serial Bus (USB) controller and you have a USB keyboard. -
Page 38: Power Management Setup
Onboard Serial Port 1/Port 2 Select an address and corresponding interrupt for the first and the second serial ports. The settings are: 3F8/IRQ4, 2E8/IRQ3, 3E8/IRQ4, 2F8/IRQ3, Disabled, Auto. UART Mode Select This item allows you to determine which InfraRed(IR) function of the onboard I/O chip, this functions uses. - Page 39 ACPI Function Enabled Item Help Power Management User Define Video off Method V/H SYNC+Blank Video Off In Suspend Menu Level > Suspend Type Stop Grant MODEM Use IRQ Suspend Mode Disabled HDD Power Down Disabled Soft-off by PWR-BTTN Instant-Off Wake-Up by PCI Card Disabled Power On by Ring Disabled...
-
Page 40: Reload Timer Events
DPMS (default) Initial display power management signaling. Blank Screen This option only writes blanks to the video buffer. V/H SYNC+Blank This selection will cause the system to turn off the vertical and horizontal synchronization ports and write blanks to the video buffer. -
Page 41: Pnp/Pci Configuration Setup
Secondary IDE 0 Disabled Menu Level >> Secondary IDE 1 Disabled FDD,COM,LPT Port Disabled PCI PIRQ[A-D]# Disabled ↑↓→← Move Enter:Select Item +/-/PU/PD:Value F10:Save ESC:Exit F1:General Help F5:Previous Values F6:Optimized Defaults F7:Standard Defaults Reload Timer Events Reload Global Timer events are I/O events whose occurrence can prevent the system from entering a power saving mode or can awaken the system from such a mode. -
Page 42: Pc Health Status
Resource Controlled By The Award Plug and Play BIOS has the capacity to automatically configure all of the boot and Plug and Play compatible devices. However, this capability means absolutely nothing unless you are using a Plug and Play operating system such as Windows ... -
Page 43: Miscellaneous Control
Disabled Current CPU Temperature/Current System Temp/Current FAN1,FAN2,FAN3 Speed/Vcore/Vtt/Vcc3.3/+5V/+12V/-12V/-5V (V) This will show the CPU/FAN/System voltage chart and FAN Speed. Shutdown Temperature This option is for setting the Shutdown temperature level for the processor. When the processor reaches the temperature you set, this will shutdown the system. 3-11 Miscellaneous Control This section is for setting CPU Frequency Control. -
Page 44: Load Standard/Optimized Defaults
3-12 Load Standard/Optimized Defaults Load Standard Defaults When you press <Enter> on this item, you get confirmation dialog box with a message similar to: Load Standard Defaults (Y/N)? N Pressing <Y> loads the BIOS default values for the most stable, minimal-performance system operations. -
Page 45: Chapter 4 Driver & Free Program Installation
You determine when the password is required within the BIOS Features Setup Menu and its Security option. If the Security option is set to “System”, the password will be required both at boot and at entry to Setup. If set to “Setup”, prompting only occurs when trying to enter Setup. -
Page 46: Inf
From MAGIC INSTALL MENU you may make 9 selections: 1. INF install INTEL 810E/810 chipset system driver 2. IDE install ULTRA ATA33 or ULTRA ATA 66 driver 3. VGA install on-board VGA driver 4. PC-HEALTH install PC-Health Monitor IIII software for hardware monitoring device 5. -
Page 47: Ide Install Ultra Ata33 Or Ultra Ata 66 Driver
supported by the driver click NEXT click Finish NOTE: MAGIC INSTALL will auto detect file path X:\INTEL810\INF\INFINST.EXE This driver supports WINDOWS 95/98/98SE/2000 (NT4.0 do not require) 4-2 IDE install Ultra ATA 33 or Ultra ATA 66 driver Click IDE when MAGIC INSTALL Click NEXT when INTEL Ultra ATA MENU appears Storage Wizard appears... -
Page 48: For Windows 95/98/98Se/Nt4.0
Select if you want to re-start your You may choose to remove the driver or computer and click Finish you may remove it at ADD/REMOVE PROGRAMS NOTE: MAGIC INSTALL will auto detect file path X:\INTEL810\Ide\SETUP.EXE This driver supports WINDOWS 95/98/98SE/NT4.0/2000 4-3 VGA install on-board VGA driver A. -
Page 49: For Windows 2000
Click NEXT, this is to announce Copy Select if you want to re-start computer Right and click Finish NOTE: The path of the file for WIN95 is X:\INTEL810\VGA\WIN95\SETUP.EXE for WIN98 and WIN98SE is X:\INTEL810\VGA\WIN9X\SETUP.EXE for NT4.0 is X:\INTEL810\VGA\NT40\SETUP.EXE B. For WINDOWS 2000 Auto detects function for Windows 2000 is not provided, please load the VGA driver as follow: When WINDOWS 2000 appears, Double... -
Page 50: Pc-Health Installs Pc Health Monitor Iiii Software For Hardware Monitoring Device
Click DRIVER/UPDATE DRIVER Click Next when update driver wizard appears. Then choose DISPLAY A LIST OF THE KNOWN DRIVERS FOR THIS DEVICE SO THAT I CAN CHOOSE A SPECIFIC DRIVER. Then click NEXT Choose DISPLAY ADAPTERS from Choose HAVE DISK from DEVICE HARDWARE TYPE then click NEXT DRIVER Choose INTEL ®... -
Page 51: Ac97 Sound Driver And The Program Install For Editing/Playback
Click PC-HEALTH when MAGIC Click OK when PC HEALTH MONITOR INSTALL MENU appears IIII Setup appears Click the Button to start installation Click OK after setup complete NOTE: MAGIC INSTALL will auto detect file path X:\INTEL810\HEALTH\SETUP.EXE This driver supports WINDOWS 95/98/98SE AC97 sound driver and the program Install for editing/playback Click SOUND when MAGIC INSTALL... -
Page 52: Install 10/100M Pci Fast Ethernet Driver
3. When ask Remove old device driver, Click 4. Click Finish and Restart Windows OK, Click GO 5. Restart Windows will auto detect Avance AC97 Driver for 82801AA Controller Intel® 82801AA controller NOTE: MAGIC INSTALL will auto detect file path: X:\CODEC\ALC200\WIN95\SETUP.EXE (for WINDOWS 95) X:\CODEC\ALC200\WIN98\SETUP.EXE (for WINDOWS 98/98SE) X:\CODEC\ALC200\WINNT\SETUP.EXE (for WINDOWS NT4.0) -
Page 53: Pc-Cillin
1. Click LAN when Magic Install Menu appears 2. LAN Driver start Copy file Driver install Finish, Click YES, restart the After restart computer, Window can find computer Realtek RTL8139C PCI Fast Ethernet NIC Select the best driver for your device, Select After restart computer you can check in NEXT, Add New Hardware Wizard Find control Panel\System Device Manager\... - Page 54 Click PC-CILLIN when MAGIC INSTALL Click NEXT when PC-CILIN 2000 SETUP MENU Appears APPEARS. Then click YES when the announcement of copywrite appears. Software is starting to detect HD for virus Click NEXT and Enter User Information, Click NEXT and Choose all Internet Click NEXT or choose BROWSE to change Protection the path For the file to be stored...
-
Page 55: How To Utilize Alsrack Editing & Playback Utility
If you want to make a rescue disc, insert a Setup Complete and click Finish 1.44 MB disc Enter Your name and E-mail address 10. After install PC-cillin 2000 complete we Register PC-cillin 2000 or Click Cancel recommend select update item to download Register Later newest virus code and setting Auto refresh virus code... -
Page 56: How To Utilize Pc-Health
ALSRACK appears *.WAN, *.MID format file This is a sound environment simulator offering massive simulation including environment of opera pub stadium KARAOK playing having high low KEY tuning. Also BASS high low eight tune tuning and TREBLE high low eight tune tuning. PS: After altering the options, there will be changes on the sound effect, user has to reset all the option in order to have the original sound effects. -
Page 57: How To Disable On-Board Sound
OK) STEP 2. Copy utility program to your boot disc. You may copy from DRIVER CD X:\ FLASH\AWDFLASH.EXE or download from our web site. 613CN/613CF/611CN/611CF STEP 3. Copy latest BIOS for from our web site to your boot disc.
