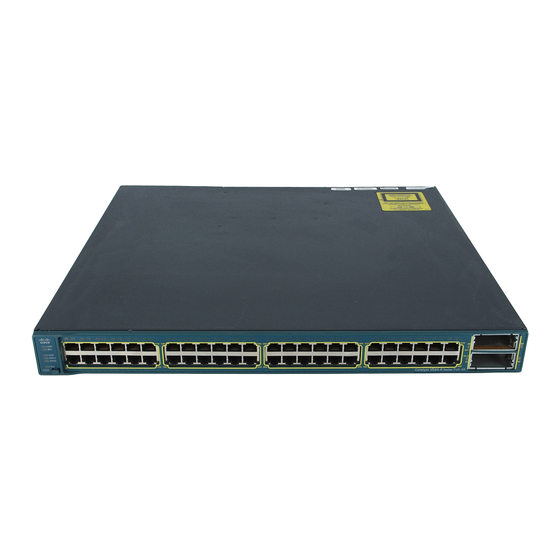

Cisco Catalyst 3560-E Getting Started Manual

Cisco Catalyst 3560-E Getting Started Manual

Cisco systems switch getting started guide
Hide thumbs Also See for Catalyst 3560-E:
Table of Contents

Advertisement

Quick Links

See also: Manual
G
S
ETTING
TARTED
Catalyst 3560-E Switch Getting Started Guide
1
About this Guide
2
Taking Out What You Need
3
Running Express Setup
4
Managing the Switch
5
Rack-Mounting
6
Connecting to the Switch Ports
7
In Case of Difficulty
8
Obtaining Documentation and Submitting a Service Request
9
Cisco Warranty Terms
G
UIDE

Advertisement

Table of Contents
loading

Related Manuals for Cisco Catalyst 3560-E

Summary of Contents for Cisco Catalyst 3560-E

  • Page 1 ETTING TARTED Catalyst 3560-E Switch Getting Started Guide About this Guide Taking Out What You Need Running Express Setup Managing the Switch Rack-Mounting Connecting to the Switch Ports In Case of Difficulty Obtaining Documentation and Submitting a Service Request Cisco Warranty Terms...

  • Page 2: About This Guide

    The software version is on the Cisco IOS label on the switch rear panel. For translations of the warnings that appear in this publication, see the Regulatory Compliance and Safety Information for the Catalyst 3750-E and Catalyst 3560-E Switch that accompanies this guide. Taking Out What You Need Follow these steps: 1.

  • Page 3: Shipping Box Contents

    Documentation AC power cord Console cable (optional) Two 19-inch mounting brackets Cable guide 1. Catalyst 3560E-48 Power over Ethernet (PoE) switch shown for example. Your switch model might look different. X2-1 X2-2 SERIE S PoE -48 Four rubber mounting feet...

  • Page 4: Running Express Setup

    Running Express Setup When you first set up the switch, you should use Express Setup to enter the initial IP information. Doing this enables the switch to connect to local routers and the Internet. You can then access the switch through the IP address for further configuration.
  • Page 5 LEDs mean that the switch is already configured and cannot go into Express Setup mode. For more information, see the “Resetting the Switch” section on page 21. Verify that the switch is in Express Setup mode. Make sure that all LEDs above the Mode Step 7 button are green.
  • Page 6 The VLAN ID range is 1 to 4094. • In the IP Address field, enter the IP address of the switch. In the Subnet Mask field, click the drop-down arrow, and select a Subnet Mask.
  • Page 7 Step 15 the device manager interface: • In the Host Name field, enter a name for the switch. The host name is limited to 31 characters; embedded spaces are not allowed. • Enter the date, time, and time zone information in the System Date, System Time, and Time Zone fields.
  • Page 8 When you click Submit, the switch is configured and exits Express Setup mode. The PC displays a warning message and then tries to connect with the new switch IP address. If you configured the switch with an IP address that is in a different subnet from the PC, connectivity between the PC and the switch is lost.

  • Page 9: Managing The Switch

    Using the Device Manager The simplest way to manage the switch is by using the device manager that is in the switch memory. This is a web interface that offers quick configuration and monitoring. You can access the device manager from anywhere in your network through a web browser.

  • Page 10: Command Line Interface

    3. Configure the PC terminal emulation software for 9600 baud, 8 data bits, no parity, 1 stop bit, and no flow control. 4. Use the CLI to enter commands to configure the switch. See the software configuration guide and the command reference for more information.

  • Page 11: Other Management Options

    This section covers basic 19-inch rack-mounting and switch port connections. As an example, all the illustrations show the Catalyst 3560E-48 PoE switch. You can install and connect other Catalyst 3560-E switches as shown in these illustrations. For additional installation and cabling information, see the hardware installation guide on Cisco.com.

  • Page 12: Installation Warning Statements

    • Airflow around the switch and through the vents is unrestricted. • Temperature around the unit does not exceed 113°F (45°C). If the switch is installed in a closed or multirack assembly, the temperature around it might be greater than normal room temperature.
  • Page 13 Warning To prevent bodily injury when mounting or servicing this unit in a rack, you must take special precautions to ensure that the system remains stable. The following guidelines are provided to ensure your safety: • This unit should be mounted at the bottom of the rack if it is the only unit in the rack. •...

  • Page 14: Before Attaching The Brackets

    Before Attaching the Brackets To install the switch in a rack, you must first remove the screws from the switch chassis so that the mounting brackets can be attached. For attachment at the front-mounting position remove two Phillips truss-head screws from the switch side panels. For some switch models, remove only one screw from the side panels.

  • Page 15: Attaching The Brackets

    Attaching the Brackets Use four number-8 Phillips flat-head screws to attach the long side of each bracket to the switch in one of three mounting positions. 47 X X2 -1 X2 -2 C at al ys t 3 5 6 0 -E...

  • Page 16: Rack-Mount The Switch

    Rack-Mount the Switch Use the four number-12 Phillips machine screws to attach the brackets to the rack. Use the black Phillips machine screw to attach the cable guide to the left or right bracket. SYS T STA T DUP LX...

  • Page 17: Connecting To The Switch Ports

    15.4 W of PoE on any 24 of the 48 ports, or any combination of the ports can deliver an average of 7.7 W of PoE at the same time, up to a maximum switch power output of 370 W.

  • Page 18: Install And Connect To Devices In The 10-Gigabit Ethernet Slots

    SE RIE S Po E- 48 When you install or remove the Cisco TwinGig converter module, the mode on the switch changes from 10-Gigabit Ethernet to Gigabit Ethernet or the reverse. During this mode change, data traffic on the other switch uplink ports (X2 transceiver or SFP module ports) might temporarily stop. When you install or remove an X2 transceiver or SFP modules, traffic delay does not occur.

  • Page 19: Verify Port Connectivity

    The switch Gigabit Ethernet SFP modules are used for connections to other devices. These transceiver modules are field-replaceable, providing the uplink interfaces when inserted in an SFP module slot. You can use any combination of SFP modules. See the switch release notes for the list of SFP modules that the switch supports.

  • Page 20: In Case Of Difficulty

    In Case of Difficulty If you experience difficulty, help is available in this section and also on Cisco.com. This section includes Express Setup troubleshooting, how to reset the switch, how to access help online, and where to find more information.

  • Page 21: Resetting The Switch

    • You want to clear all configuration from the switch and assign a new IP address. • You are trying to enter Express Setup mode, and the switch LEDs start blinking when you press the Mode button (which means that the switch is already configured with IP information).

  • Page 22: Obtaining Documentation And Submitting A Service Request

    • Catalyst 3750-E and Catalyst 3560-E Switch System Message Guide • Documentation Updates for the Catalyst 3560E-12D Switch • Installation Notes for the Catalyst 3750-E, Catalyst 3560-E, and RPS 2300 Power Supply Modules • Installation Notes for the Catalyst 3750-E and Catalyst 3560-E Switch Fan Modules •...

  • Page 23: Cisco Warranty Terms

    Acts of Green are service marks; and Access Registrar, Aironet, AllTouch, AsyncOS, Bringing the Meeting To You, Catalyst, CCDA, CCDP, CCIE, CCIP, CCNA, CCNP, CCSP, CCVP, Cisco, the Cisco Certified Internetwork Expert logo, Cisco IOS, Cisco Lumin, Cisco Nexus, Cisco Press, Cisco Systems, Cisco Systems...
  • Page 24 Cisco has more than 200 offices worldwide. Addresses, phone numbers, and fax numbers are listed on the Printed in the USA on recycled paper containing 10% postconsumer waste. OL-14460-04 Asia Pacific Headquarters Cisco Systems (USA) Pte. Ltd. Singapore Cisco Website at www.cisco.com/go/offices. Europe Headquarters...
