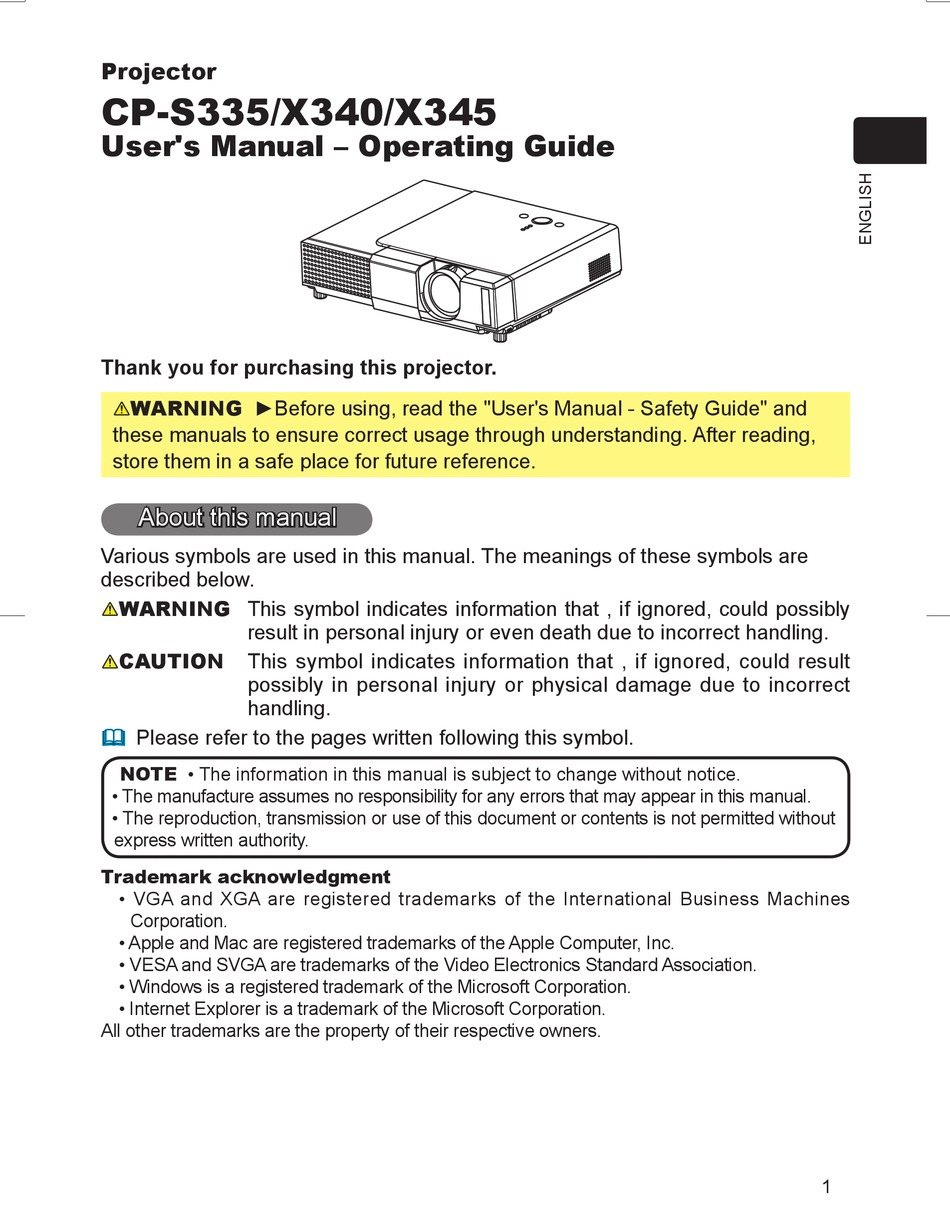

Projector
CP-S335/X340/X345
User's Manual – Operating Guide
Thank you for purchasing this projector.
WARNING ►Before using, read the "User's Manual - Safety Guide" and
these manuals to ensure correct usage through understanding. After reading,
store them in a safe place for future reference.
About this manual
Various symbols are used in this manual. The meanings of these symbols are
described below.
WARNING This symbol indicates information that , if ignored, could possibly
result in personal injury or even death due to incorrect handling.
CAUTION
This symbol indicates information that , if ignored, could result
possibly in personal injury or physical damage due to incorrect
handling.
 Please refer to the pages written following this symbol.
NOTE • The information in this manual is subject to change without notice.
• The manufacture assumes no responsibility for any errors that may appear in this manual.
• The reproduction, transmission or use of this document or contents is not permitted without
express written authority.
Trademark acknowledgment
• VGA and XGA are registered trademarks of the International Business Machines
Corporation.
• Apple and Mac are registered trademarks of the Apple Computer, Inc.
• VESA and SVGA are trademarks of the Video Electronics Standard Association.
• Windows is a registered trademark of the Microsoft Corporation.
• Internet Explorer is a trademark of the Microsoft Corporation.
All other trademarks are the property of their respective owners.
Technical Section

Quick Guide

1

Advertisement

Table of Contents
loading

Related Manuals for Hitachi CP-S335

Summary of Contents for Hitachi CP-S335

  • Page 1: Quick Guide

    Projector CP-S335/X340/X345 User's Manual – Operating Guide Thank you for purchasing this projector. WARNING ►Before using, read the "User's Manual - Safety Guide" and these manuals to ensure correct usage through understanding. After reading, store them in a safe place for future reference.

  • Page 2: Table Of Contents

    Part names ....4 Projector ..... 4 Controls .

  • Page 3: Projector Features

    Projector features This projector is used to project various computer signals as well as NTSC / PAL / SECAM video signals onto a screen. It requires just a little space for installation and gets a large image from short distance.

  • Page 4: Part Names

    In such a case, please push the Restart switch by using a cocktail stick or similar and before turning on again, make the projector cool down at least 10 minutes without operating. Only push the Restart switch in these exceptional instances.

  • Page 5: Controls

    Control buttons LAMP indicator (44) TEMP indicator (44) POWER indicator (16) STANDBY/ON button (16) Remote control RGB button (17) VIDEO button (17) ASPECT button (18) HOME button (21) MAGNIFY (20) ON button OFF button END button (21) FREEZE button (20) POSITION button (19) Cursor buttons ▲,▼,◄,►(22)

  • Page 6: Setting Up

    • Don’t place the projector on a carpet, cushion or bedding. • Don’t place the projector in direct sunlight or near a hot object such as heater. • Put nothing about lens and vents of the projector. Put nothing on the projector.

  • Page 7: Arrangement

    The values shown in the table are calculated for a full size screen: 1280 x 720 (a) The screen size (diagonal) (b) Distance from the projector to the screen (±10%) (c) The height of the screen (±10%) At 4:3 screen...

  • Page 8: Adjusting The Projector's Elevator

    You can use the elevator feet to make adjustments if the surface on which you need to set the projector is uneven or if you otherwise need to adjust the angle of projection. The adjustment range of the elevator feet is 0 to 9 degrees.

  • Page 9: About The Filter Cover For Bottom-Up Use

    About the filter cover for bottom-up use WARNING ►Do not replace the filter cover during use or immediately after use. While the projector connects with a power supply, or the projector is in a high temperature state, handling could cause an electric shock, a fire, a burn and/or malfunction to the projector.Before handling, make sure the power...

  • Page 10: Connecting Your Devices

    Some cables have to be used with core set. A too long cable may cause a certain picture degradation. Please consult with your dealer for details. For cables that have a core only at one end, connect the core to the projector. ►Make sure that you connect devices to the correct port. Incorrect connection may result in malfunction and/or damage to the device and/or projector.
  • Page 11 Examples of connection with a computer RGB out RS-232C RGB out Connecting to a monitor (output) RGB in Connecting to a speaker with amplifier (output) RGB cable Stereo mini audio cable Audio out USB(A) VIDEO S-VIDEO COMPONENT VIDEO cable RS-232C cable Audio out VIDEO...
  • Page 12 Setting up Examples of connection with a VCR/DVD player Audio out Audio out Component video out Audio out Component video out Audio out Video out Video cable Stereo mini audio cable S-Video out S-Video cable Stereo mini audio cable Component video cable Stereo mini audio cable Component video cable Stereo mini audio cable...

  • Page 13: Connecting Power Supply

    WARNING ►Please use extra caution when connecting the power cord as incorrect or faulty connections may result in fire and/or electrical shock. • Only use the power cord that came with the projector. If it is damaged, contact your dealer to newly get correct one.

  • Page 14: Remote Control

    Remote control Remote control Putting batteries WARNING ►Always handle the batteries with care and use them only as directed. Improper use may result in battery explosion, cracking or leakage, which could result in fire, injury and/or pollution of the surrounding environment. •...

  • Page 15: Using The Remote Control

    • Since the remote control uses infrared light to send signals to the projector (Class1 LED), be sure to use the remote control in an area free from obstacles that could block the remote control’s output signal to the projector.

  • Page 16: Power On/Off

    WARNING ►When the power is on, a strong light is emitted. Do not look into the lens or vents of the projector. NOTE • Turn the power on/off in right order. Please power on the projector before the connected devices. Power off the projector after the connected devices.

  • Page 17: Operating

    ● When the TURN ON is selected to the item SEARCH of OPTION menu the projector selects the RGB IN1 port at first. If no input is detects at the RGB IN1 port, projector will check the RGB IN2 port.

  • Page 18: Searching An Input Signal

    find any input signals. Then when an input is found, the projector will stop searching and display the image. If no signal is found, the projector will return to the state selected before the operation. RGB IN1  RGB IN2  COMPONENT VIDEO  S-VIDEO  VIDEO Selecting an aspect ratio Press the ASPECT button on the remote control.

  • Page 19: Using The Automatic Adjustment Feature

    Using the automatic adjustment feature Press the AUTO button on the remote control.  At a RGB signal The vertical position, the horizontal position, the clock phase and horizontal size will be automatically adjusted. Make sure that the application window is set to its maximum size prior to attempting to use this feature.

  • Page 20: Using The Magnify Feature

    STANDBY/ON, SEARCH, RGB, VIDEO, BLANK, AUTO, ASPECT, VOLUME, MUTE, KEYSTONE, POSITION and MENU is pressed. ● If the projector continues projecting a still image for long time, the LCD panel might possibly be printed. Do not leave the projector in FREEZE mode for too long.

  • Page 21: Operating The Computer Screen

    BLANK function, or displaying the menu screen. USB mouse and keyboard control Connect the projector’s USB port to the computer via the mouse cable. Available function Move pointer Left click with mouse Right click with mouse Press keyboard’s HOME key...

  • Page 22: Multifunctional Settings

    The display of the selected menu will be active. Use the cursor buttons ▲/▼ to select an item to operate. Then press the cursor button ► on the projector or remote control, or the ENTER button on the remote control to progress.

  • Page 23: Easy Menu

    With the EASY MENU, items shown in the table below can be performed. Select an item using the cursor buttons ▲/▼ on the projector or remote control. Then perform it referring to the following table. Item Using the buttons ◄/► switches the mode for aspect ratio.

  • Page 24: Language, Go To Advanced Menu

    Multifunctional settings EASY Menu (continued) Item Using the buttons ◄/► adjusts the sharpness. SHARPNESS See the item SHARPNESS of section PICTURE menu (26). Using the buttons ◄/► turns off/on the whisper mode. WHISPER See the item WHISPER of section SETUP menu (32). Using the buttons ◄/►...

  • Page 25: Picture Menu

    Select an item using the cursor buttons ▲/▼ on the projector or remote control, and press the cursor button ► on the projector or remote control, or the ENTER button on the remote control to progress. Then perform it referring to the following table.
  • Page 26 Multifunctional settings PICTURE Menu (continued) Item Using the buttons ▲/▼ switches the mode of color temperature. HIGH  MIDDLE  LOW  CUSTOM To adjust CUSTOM Selecting the CUSTOM and then pressing the button ► or the ENTER button displays a dialog to aid you in adjusting the OFFSET and/or GAIN of CUSTOM mode.

  • Page 27: My Memory

    Selecting a mode of MY MEMORY using the buttons ▲/▼ and then pressing the button ► or the ENTER button performs each function. This projector has 4 numbered memories for adjustment data. MY MEMORY Performing the LOAD1, LOAD2, LOAD3 or LOAD4 loads the data on the memory whose number corresponds with the command’...

  • Page 28: Image Menu

    Select an item using the cursor buttons ▲/▼ on the projector or remote control, and press the cursor button ► on the projector or remote control, or the ENTER button on the remote control to progress. Then perform it referring to the following table.
  • Page 29 Multifunctional settings IMAGE Menu (continued) Item Description Using the buttons ▲/▼ adjusts the horizontal size. Large  Small • This item can be selected only at a RGB signal. H SIZE • When this adjustment is excessive, the picture may not be displayed correctly.

  • Page 30: Input Menu

    When the SCART RGB is selected, the COMPONENT VIDEO port function as a port for a SCART RGB signal input. A SCART adapter and SCART cable realize a SCART RGB input to the projector. For details, ask your dealer. Using the buttons ▲/▼ switches the mode for video format.
  • Page 31 Multifunctional settings INPUT Menu (continued) Item Description Selecting this item displays a dialog titled “INPUT INFORMATION”. It shows the information about the current input. INPUT-INFORMATION INPUT-INFORMATION INPUT-INFORMATION S-VIDEO COMPONENT 1024x768 @60.0 SECAM 576i @50 FRAME LOCK AUTO SCART RGB • The “FRAME LOCK” message on the dialog means the frame lock INFORMATION function is working (30).

  • Page 32: Setup Menu

    • When the V:INVERT or the H&V:INVERT is selected under the KEYSTONE item MIRROR, if the projector screen is inclined or if the projector is angled downward, this function may not work correctly. • When the zoom adjustment is set to the TELE side, this correction may be excessive.

  • Page 33: Screen Menu

    Select an item using the cursor buttons ▲/▼ on the projector or remote control, and press the cursor button ► on the projector or remote control, or the ENTER button on the remote control to progress. Then perform it referring to the following table.
  • Page 34 Multifunctional settings SCREEN Menu (continued) Item Using the buttons ▲/▼ switches the mode the start up screen. The start up screen is the screen displayed when no signal or an unsuitable signal is detected. MyScreen  ORIGINAL  TURN OFF MyScreen is the screen you can register a desired screen.
  • Page 35 SCREEN Menu (continued) Item Using the buttons ▲/▼ turns on/off the message function. TURN ON  TURN OFF When the TURN ON is selected, the following message function works. “AUTO IN PROGRESS” while automatically adjusting MESSAGE ”NO INPUT IS DETECTED” ”SYNC IS OUT OF RANGE”...

  • Page 36: Option Menu

    Then when an input SEARCH is found, the projector will stop searching and display the image. If no signal is found, the projector will return to the state before the operation. RGB IN1  RGB IN2  COMPONENT VIDEO  S-VIDEO  VIDEO Using the buttons ▲/▼...

  • Page 37: Service

    FAN SPEED Using the buttons ▲/▼ switches the rotation speed of the cooling fans. The HIGH is the mode for use at highlands etc. Note that the projector is noisier when the HIGH is selected. HIGH  NORMAL GHOST SERVICE 1.

  • Page 38: Maintenance

    Note that shards of glass could damage the projector’s internals, or cause injury during handling, so please do not try to clean the projector or replace the lamp yourself. • If the lamp should break (it will make a loud bang when it does),...
  • Page 39 When the indicators or a message prompts you to replace the lamp, replace the lamp as soon as possible. Turn the projector off, and unplug the power cord. Allow the lamp to cool for at least 45 minutes. To prepare a new lamp, contact your dealer and tell the lamp type number = DT00671.

  • Page 40: Air Filter

    ►Use only the air filter of the specified type. Do not use the projector with the air filter and filter cover removed.

  • Page 41: Other Care

    ►Before caring, make sure the power switch is off and the power cable is not plugged in, and then allow the projector to cool sufficiently. The care in a high temperature state of the projector could cause a burn and/or malfunction to the projector.

  • Page 42: Troubleshooting

    Troubleshooting Troubleshooting Related messages When the unit's power is on, messages such as those shown below may be displayed. When any such message is displayed on the screen, please respond as described below. If the same message is displayed after the treatment, or if a message other than the following appears, please contact your dealer or service company.
  • Page 43 This projector is equipped with an automatic shut-down function, such that the power will automatically be turned off when lamp usage time has reached 2000 hours.

  • Page 44: Regarding The Indicator Lamps

    Please turn the power off, and allow the unit to cool down at least 20 minutes. After the projector has sufficiently cooled down, please make confirmation of Turned the following items, and then turn the power on again.
  • Page 45 In such a case, press the “” (OFF) side of the power switch, and wait at least 45 minutes. After the projector has sufficiently cooled down, please make confirmation of the attachment state of the lamp and lamp cover, and then turn the power on again.

  • Page 46: Phenomena That May Easily Be Mistaken For Machine Defects

    If the situation cannot be corrected, The projector’s microprocessor may need to be reset. Please push the Restart switch by using a cocktail stick or similar and the projector will restart. Some setting may be wrong. Please use the FACTORY RESET function of SERVICE menu in the OPTION menu default.
  • Page 47 Adjust the BRIGHT to a higher level using the menu function displayed. or the remote control. The computer cannot detect the projector as a plug and play monitor. Make sure that the computer’s can detect a plug and play monitor using other plug and play monitor.

  • Page 48: Warranty And After-Service

    Specification Liquid crystal projector 1.8 cm (0.7 type) TFT active matrix CP-S335: 480,000 pixels (800 horizontal x 600 vertical) CP-X340/X345: 786,432 pixels (1024 horizontal x 768 vertical) Zoom lens F=1.7 ~ 1.9 f=21.8 ~ 26.2 mm 165W UHB AC100-120V/2.7A, AC220-240V/1.5A 240W 5 ~ 35°C (Operating)
  • Page 49 Specifications Specifications (continued) 84.5 297.0 [unit: mm]...

  • Page 51: Example Of Computer Signal

    • Depending on the input signal, full-size display may not be possible in some cases. Refer to the number of display pixels above. • Although the projector can display signals with resolution up to UXGA (1600x1200), the signal will be converted to the projector’s panel resolution before being displayed.
  • Page 52 Example of computer signal Initial set signals Initial set signals The following signals are used for the initial settings. The signal timing of some computer models may be different. In such case, adjust the items V POSITION and H POSITION in the IMAGE menu. Back porch (B) Display interval (C) Data...
  • Page 53 Connection to the ports Connection to the ports COMPONENT VIDEO RGB IN 1, RGB IN 2, D-sub 15pin mini shrink jack 11 12 13 14 15 • Video signal: RGB separate, Analog, 0.7Vp-p, 75Ω terminated (positive) • H/V. sync. Signal: TTL level (positive/negative) •...
  • Page 54 Connection to the ports Connection to the ports Connection to the ports COMPONENT VIDEO COMPONENT VIDEO RCA jack x3 • System: 525i(480i), 525p(480p), 625i(576i), 750p(720p), 1125i(1080i) Port Component video Y, 1.0±0.1Vp-p, 75Ω terminator with composite Component video C Component video C S-VIDEO Mini DIN 4pin jack Color signal 0.286Vp-p (NTSC, burst), 75Ω...
  • Page 55 COMPONENT VIDEO USB B type jack Signal 1 +5V 2 - Data 3 + Data 4 Ground CONTROL D-sub 9pin plug • About the details of RS-232C communication, please refer to the following page. Signal 1 (No connection) 2 RD 3 TD AUDIO IN1 AUDIO OUT...

  • Page 56: Communications Setting

    Connecting the cable Turn off the projector and the computer. Connect the CONTROL port of the projector with a RS-232C port of the computer by a RS-232C cable. Use the cable that fulfills the specification shown in the previous page.
  • Page 57 • Provide an interval of at least 40ms between the response code and any other code. • The projector outputs test data when the power supply is switched ON, and when the lamp is lit. Ignore this data.
  • Page 58 RS-232C Communication (continued) Names Operation Type Power Turn off Turn on Input Source RGB IN1 RGB IN2 VIDEO S-VIDEO COMPONENT Error Status BRIGHT Increment Decrement BRIGHT Reset Execute CONTRAST Increment Decrement CONTRAST Reset Execute MODE NORMAL CINEMA DYNAMIC GAMMA #1 DEFAULT #1 CUSTOM #2 DEFAULT #2 CUSTOM...

  • Page 59: Header

    Names Operation Type User Gamma Pattern 9 step gray scale 15 steps gray scale Ramp User Gamma Point 1 Increment Decrement User Gamma Point 2 Increment Decrement User Gamma Point 3 Increment Decrement User Gamma Point 4 Increment Decrement User Gamma Point 5 Increment Decrement User Gamma Point 6...
  • Page 60 RS-232C Communication (continued) Names Operation Type COLOR TEMP GAIN G Increment Decrement COLOR TEMP GAIN B Increment Decrement COLOR TEMP OFFSET R Increment Decrement COLOR TEMP OFFSET G Increment Decrement COLOR TEMP OFFSET B Increment Decrement COLOR Increment Decrement COLOR Reset Execute TINT Increment...
  • Page 61 Names Operation Type OVER SCAN Increment Decrement OVER SCAN Reset Execute V POSITION Increment Decrement V POSITION Reset Execute H POSITION Increment Decrement H POSITION Reset Execute H PHASE Increment Decrement H SIZE Increment Decrement H SIZE Reset Execute AUTO ADJUST Execute COLOR SPACE AUTO...
  • Page 62 RS-232C Communication (continued) Names Operation Type FRAME LOCK TURN OFF TURN ON KEYSTONE V Increment Decrement KEYSTONE V Reset Execute WHISPER NORMAL WHISPER MIRROR NORMAL H:INVERT V:INVERT H&V:INVERT VOLUME Increment Decrement MUTE TURN OFF TURN ON LANGUAGE ENGLISH FRANÇAIS DEUTSCH ESPAÑOL ITALIANO NORSK...

  • Page 63: Execute

    Names Operation Type MENU POSITION H Increment Decrement MENU POSITION H Execute Reset MENU POSITION V Increment Decrement MENU POSITION V Execute Reset OSD BRIGHT Increment Decrement BLANK My Screen ORIGINAL BLUE WHITE BLACK BLANK On/Off TURN OFF TURN ON START UP My Screen ORIGINAL...
  • Page 64 RS-232C Communication (continued) Names Operation Type LAMP TIME LAMP TIME Reset Execute FILTER TIME FILER TIME Reset Execute MAGNIFY Increment Decrement FREEZE NORMAL FREEZE Header BE EF 06 00 C2 FF BE EF 06 00 58 DC BE EF 06 00 C2 F0 BE EF 06 00...

  • Page 65: Contents Of Package

    (5) Filter cover for bottom-up use (6) User’s manuals (7) Soft case NOTE • Keep the original packing materials for future reshipment. For moving the projector, be sure to use the original packing material. Use special caution for the lens part. STANDBY/ON SEARCH...
  • Page 66 "User's Manual - Safety Guide". CAUTION ►This projector has some intake vents also on the bottom. Avoid blocking vents. Put nothing that is sucked or sticks to the bottom of projector. (calculated for a full size screen, ±10%)
  • Page 67 Adjusting the projector's elevator / About the fi lter cover for bottom - up use Adjusting the projector's elevator Adjusting the projector's elevator WARNING ►Do not adjust the projector’s elevator during use or immediately after use. Handling while the projector is in a high temperature could cause a burn and/or malfunction to the projector.
  • Page 68 Connecting your devices Connecting your devices Connecting your devices Examples of connection with a computer RGB out RS-232C RGB out Connecting to a monitor (output) RGB in Connecting to a speaker with amplifi er (output) RGB cable Stereo mini audio cable Audio out USB(A) COMPONENT VIDEO USB cable...
  • Page 69 Examples of connection with a VCR/DVD player Audio out Audio out Component video out Audio out Component video cable Component video out Audio out Component video cable Video out VIDEO S-VIDEO COMPONENT VIDEO Video cable Stereo mini audio cable S-Video out VIDEO S-VIDEO COMPONENT VIDEO...

  • Page 70: Connecting The Power Supply

    WARNING ►Please use extra caution when connecting the power cord as incorrect or faulty connections may result in fi re and/or electrical shock. • Only use the power cord that came with the projector. If it is damaged, contact your dealer to newly get correct one.
  • Page 71 Press the STANDBY/ON (projector or remote control) button. Displaying To select an input signal, use the button of INPUT (projector), or the buttons of RGB, VIDEO or SEARCH (remote control). To change the aspect ratio, use the button ASPECT (remote control).
  • Page 72 Note that shards of glass could damage the projector’s internals, or cause injury during handling, so please do not try to clean the projector or replace the lamp yourself. • If the lamp should break (it will make a loud bang when it does),...
  • Page 73 When the indicators or a message prompts you to replace the lamp, replace the lamp as soon as possible. Turn the projector off, and unplug the power cord. Allow the lamp to cool for at least 45 minutes. To prepare a new lamp, contact your dealer and tell the lamp type number = DT00671.
  • Page 74 ►Use only the air fi lter of the specifi ed type. Do not use the projector with the air fi lter and fi lter cover removed.
