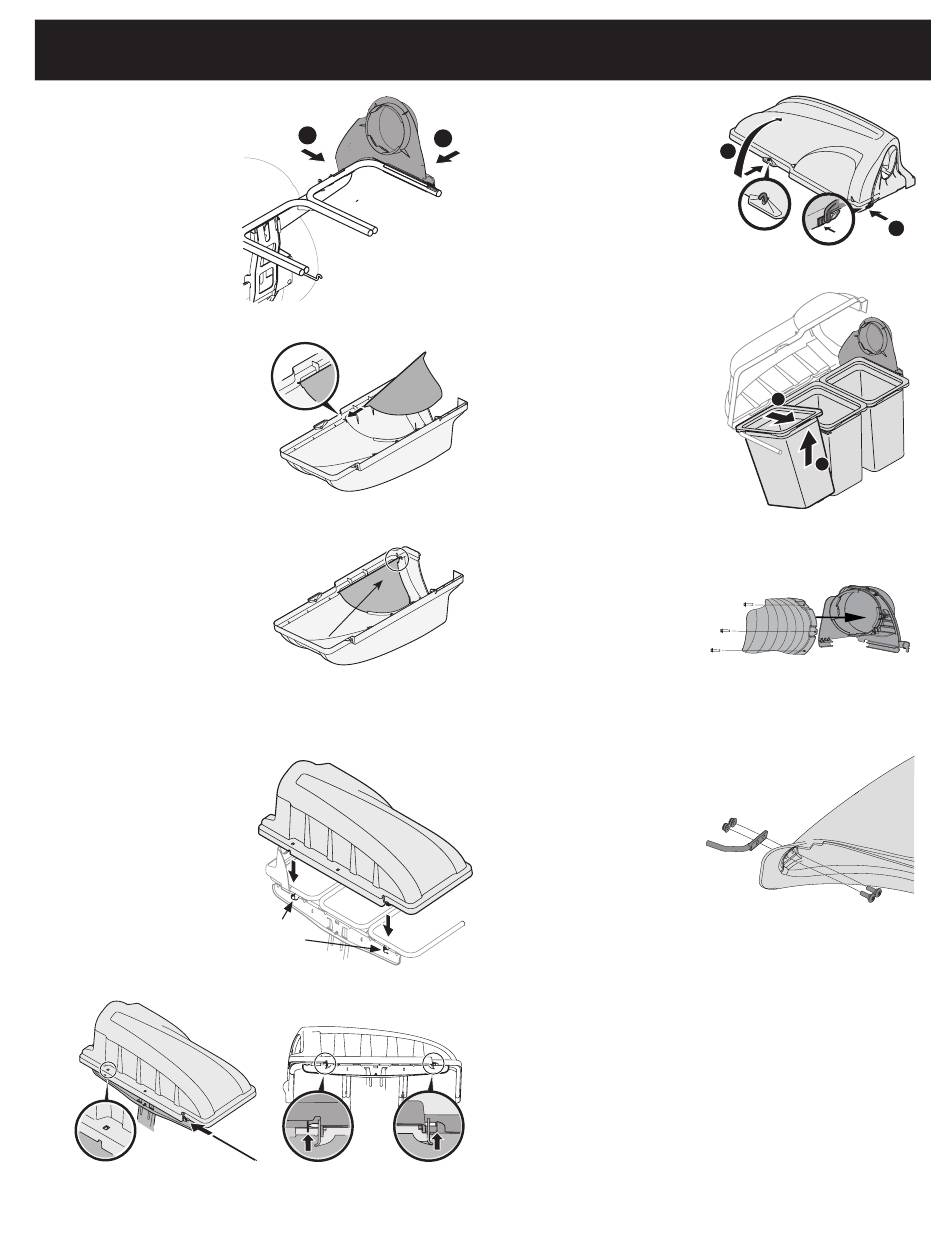

Assembling Remaining
Bagger Components
1.
Snap the upper chute
support (731-17091A) in
place by first clipping the
side portion onto the
hanger assembly rail (1).
See Figure 7.
2.
Snap the front side of the
upper chute support to the
rail (2), as shown in Figure 7.
3.
If not previously installed
by the factory, install the
screen (731-06504) into the
bagger cover (631-04298) by first
inserting the end closest to the
center into the cutout mounting
hole, as in Figure 8.
NOTE: Make sure to feed the screen
under the lip, as in Figure 9.
4.
Clip in the other side by flexing
the screen and pushing it down
into the provided cutout hole. See
Figure 9.
5.
Install the bagger cover onto the
hanger assembly, as seen in
Figure 10. The plastic cover goes
inside of the two mounting tabs.
6.
Slide the hinge pin (711-05079)
into the hole located on the
mounting tab, as in Figure 11. Use
the cut-out window (see inset in
Figure 11) to line up the hinge pin
on the other side and push pin all
the way in until it reaches the
end-stop. At this point the
pin clips into place and is
secured by a tab in the
bagger cover. See Figure 12.
Figure 11
ASSEMBLY & INSTALLATION
2
Figure 7
Figure 8
Make sure screen sits under the
cover's lip
Figure 9
Cover mounts
in between
these two tabs
Figure 10
Figure 12
7.
Open hood by pushing in on
the rear, right-side tab with
your right hand, as seen in (1)
1
of Figure 13, and lifting the
cover with your left hand in
the center rear of the bagger
cover (2).
8.
Install the grass bag
assemblies (664-05104), with
the tight mesh panel facing
the tractor, onto the bag
support brackets by
inserting the front edge in
first, as shown in (1) of
Figure 14, and setting the
back edge down (2) until it
fits into the assembly.
Attaching the Upper
Chute Support
1.
Attach the upper chute
support to the chute
deflector using the three
screws supplied in the
hardware pack 689-02299.
See Figure 15.
Assembling and
Configuring the
Discharge Chute & Boot
Before installing the discharge
chute and boot onto your tractor,
components must first be
assembled onto the upper chute
tube (631-04291A) and boot
(631-09698).
1.
From the inside, put the
two hex head screws (738-
1225), from hardware pack
689-02199, through the
holes at the bottom front
of the boot. See Figure 16.
2.
Put the mounting rod
(747-06309) in place over
the hex head screws. Make
sure the tip of the rod is
facing out from the boot.
See Figure 16.
3.
Begin threading the flange lock nuts (712-04064) onto the hex head screws.
See Figure 16.
4.
Using a 1/2" wrench or socket on the screw and a 7/16" box wrench on the
nylock nuts, secure the assembly.
7
2
1
Figure 13
2
1
Figure 14
Figure 15
Figure 16
