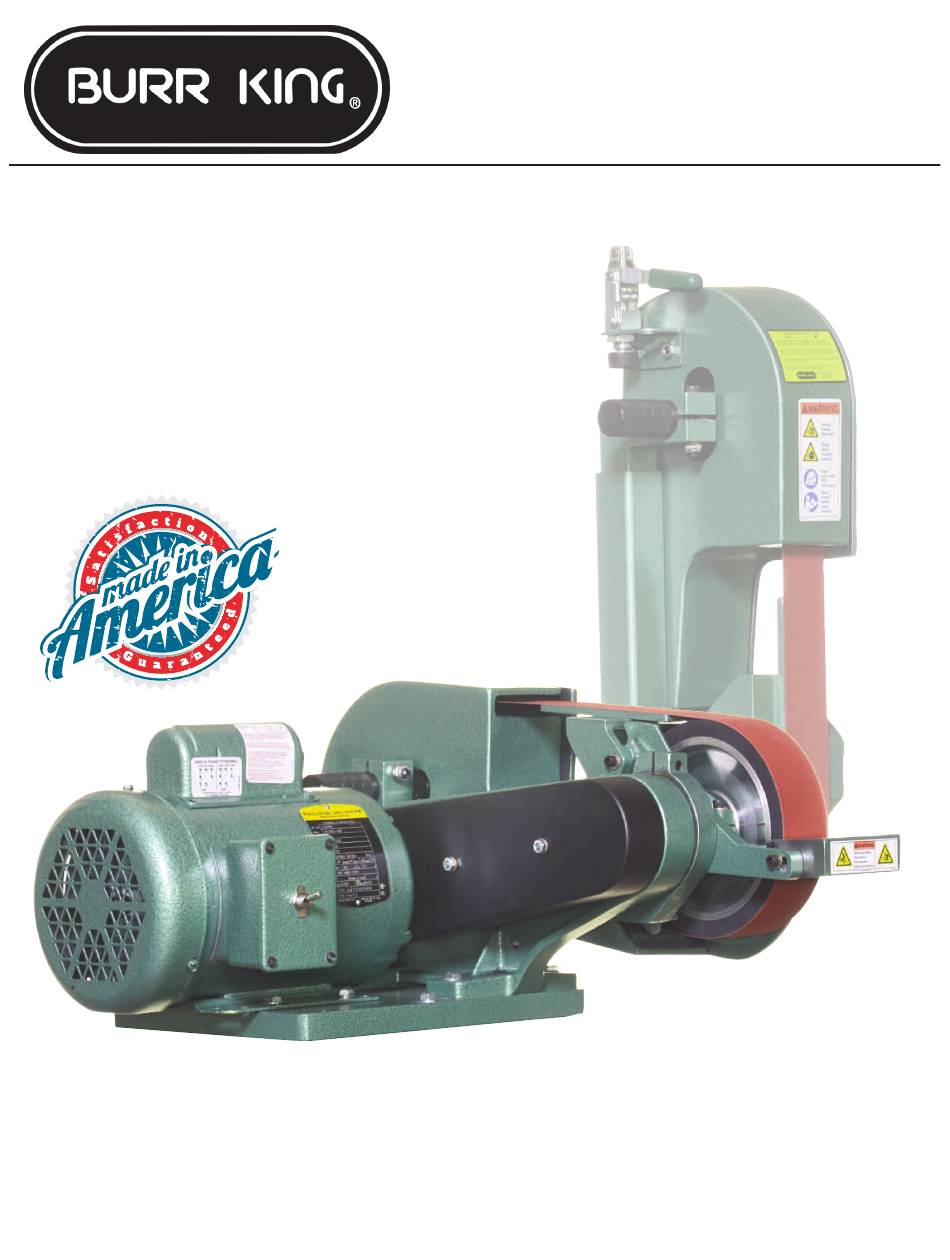

- Page 1 BURR KING MFG. CO., INC 1220 Tamara Lane Warsaw, MO 65355 www.burrking.com (660)438-8998 • 800-621-2748 Fax (660)438-8991 X400 ODEL NSTRUCTION ANUAL X400 ODEL HEEL RINDER...
- Page 2 *Motors, speed controllers, and certain other accessories are warranted by their respective manufacture. To receive warranty service on these items you must contact a brand label service center that supports the product in need of service. Burr King Manufacturing Company; Inc. will assist you in locating a service center.
- Page 3 June 25, 2015 LETTER OF AUTHENTICITY This letter is to certify that all Burr King Belt grinders, Disc grinders, Polishing machines Vibra King Chambers and Bowls are manufactured and assembled in the United States of America. Tariff number 847990 criterion A)
- Page 4 Burr King Model X400 Congratulations on your purchase of a Burr King grinder. Please take a moment to complete and mail your product warranty registration card. Doing so will validate your machine’s warranty period and ensure prompt service if needed.
- Page 5 X400 Important Safety Instructions OPERATOR, and OPERATING AREA SAFTEY WARNING! WHEN USING ELECTRIC TOOLS, BASIC SAFTEY PRECAUSTIONS SHOULD ALWAYS BE FOLLOWED TO REDUCE RISK OF FIRE, ELECTRIC SHOCK AND PERSONAL INJURY. READ AND SAVE ALL INSTRUCTIONS FOR FUTURE REFERENCE Subject equipment includes Grinders, buffers, polishers, and other rotating equipment. Serious injury or death may occur if minimum safety precautions are not understood, and obeyed by operators and those other persons who may be in the immediate vicinity of the subject equipment.
- Page 6 7. USE SAFETY GLASSES • Everyday eyewear does not feature impact resistance lenses, and they are NOT safety glasses 8. WEAR DUST MASK • Some dust created by grinding activities may contain chemicals known to cause cancer, birth defects or other harm. Provide adequate ventilation.
- Page 7 22. DO NOT USE STONE WHEELS • The use of stone or vitreous wheels on any Burr King grinder is prohibited. The machine guarding is not suitable for these types of wheels. To do so will create an operator safety hazard.
- Page 8 AUTHORIZED BURR KING DISTRIBUTOR, OR BURR KING MANUFACTURING AT 1-800-621-2748. YOUR SAFETY IS OUR FOREMOST CONCERN! Burr King Manufacturing disclaims any and all responsibility for injuries, damage, loss of income, or other adverse consequence as might be incurred by purchasers, managers, and operators of this equipment.

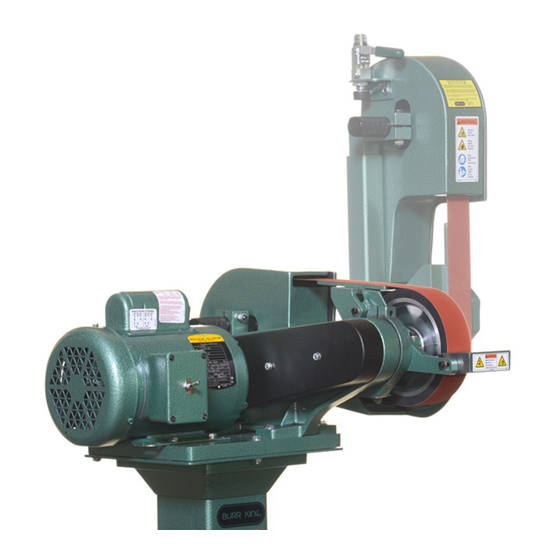

- Page 9 Operating instructions for the Model X400 belt grinder Over view: The model X400 belt grinder is a two-wheel belt grinder that uses a 2 x 48-inch continuous loop abrasive belt. For maximum efficiency and your safety we recommend you read and understand all operating instructions, manuals, labels, and other information provided with the equipment.
- Page 10 Close guard door. See the tracking section on the next page to learn how to track the belt. When selecting where to grind on your machine remember that the X400 has 3 designated grinding areas. The contact wheel, slack belt area and the platen area. You may wish to create a larger slack belt area by removing the backup platen.
- Page 11 We also offer an adapter to allow the user to run wheels in place of the contact wheel. For more information on these accessories contact your local dealer or the Burr King factory directly.
- Page 12 MODEL X400 EXPLODED VIEW 40 64 43 44 38 40 7 6 54 34 30 32 46 48 JULY 2022 - Drawing based off of SKU 24820...
- Page 13 MODEL X400 PARTS LIST ITEM NO. PART NUMBER DESCRIPTION QTY. ITEM NO. PART NUMBER DESCRIPTION QTY. SET SCREW 5/16-18 X 3/8 CP BASE-MACHINE GUARD, V-BELT FRAME-MAIN WASHER 1/4 AN960-416 NUT 1/4-20 JAM HHCS 5/16-18 X 1 GR 5 728A STUD-V-BELT GUARD...
- Page 14 MODEL X400 FOOTPRINT 11.25 5.08 8.75 21.08 .36 THRU 19.80 26.04 6.10 9.75 12.24 JULY 2022 - Drawing based off of SKU 24820...
