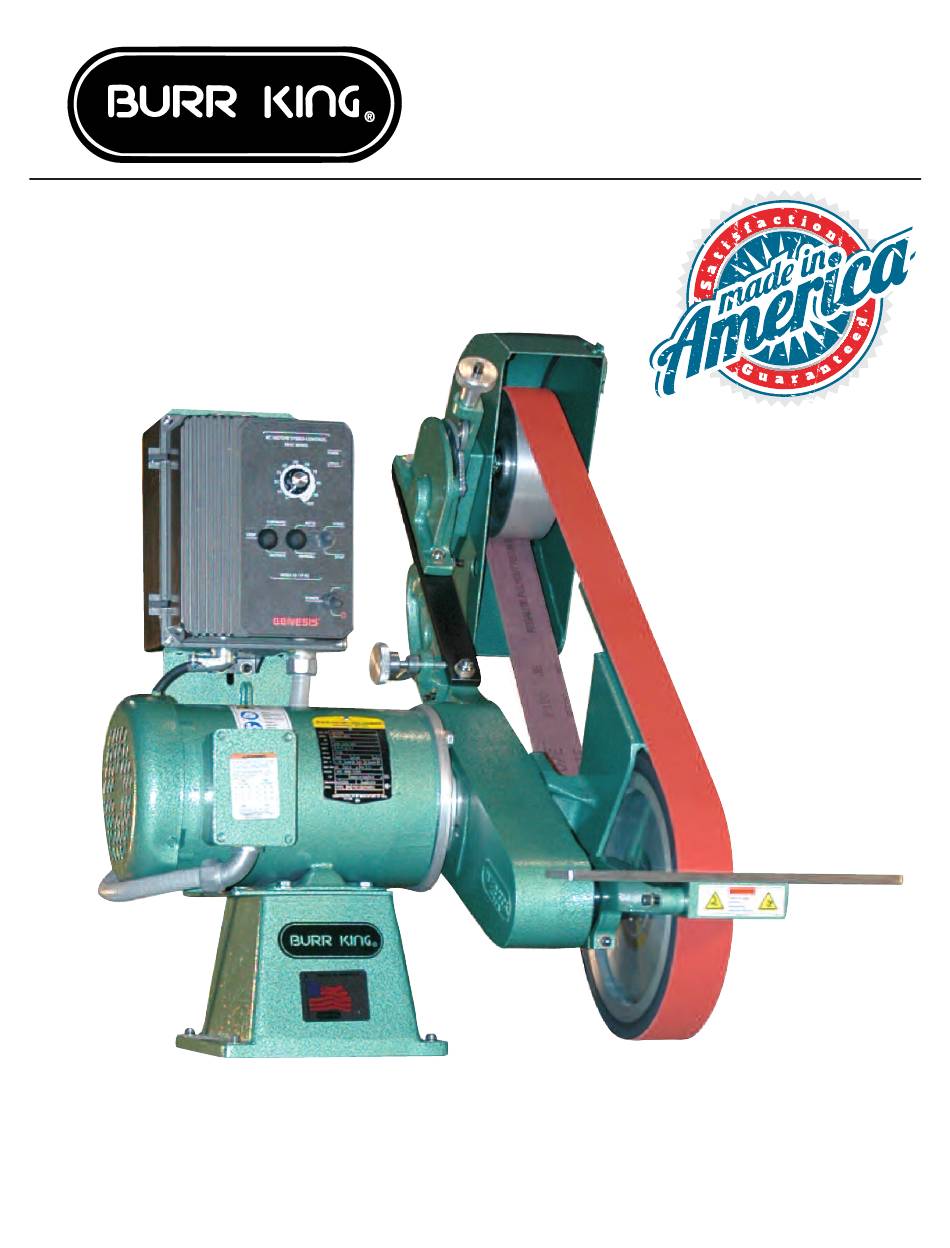

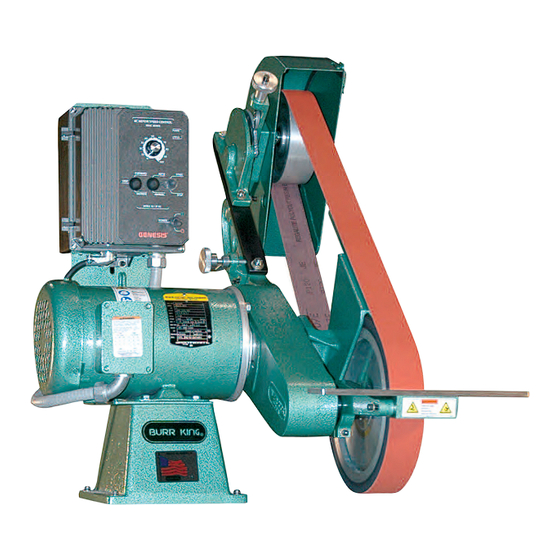

- Page 1 BURR KING MFG. CO., INC 1220 Tamara Lane Warsaw, MO 65355 www.burrking.com (660)438-8998 • 800-621-2748 Fax (660)438-8991 960-272 ODEL NSTRUCTION ANUAL Model 99730 Shown 960-272 ODEL HEEL RINDER March 2020...
- Page 2 *Motors, speed controllers, and certain other accessories are warranted by their respective manufacture. To receive warranty service on these items you must contact a brand label service center that supports the product in need of service. Burr King Manufacturing Company; Inc. will assist you in locating a service center.
- Page 3 FAX (660) 438-8991 April 2, 2009 LETTER OF AUTHENTICITY This letter is to certify that all Burr King Belt grinders, Disc grinders, Polishing machines Vibra King Chambers and Bowls are manufactured and assembled in the United States of America. Tariff number 847990 criterion A)
- Page 4 BURR KING MFG. CO., INC. 1220 TAMARA LANE WARSAW MO 65355 WWW.BURRKING.COM (660) 438-8998 (800) 621-2748 FAX (660) 438-8991 960-272 Important Safety Instructions OPERATOR, and OPERATING AREA SAFTEY WARNING! WHEN USING ELECTRIC TOOLS, BASIC SAFTEY PRECAUSTIONS SHOULD ALWAYS BE FOLLOWED TO REDUCE RISK OF FIRE, ELECTRIC SHOCK AND PERSONAL INJURY.
- Page 5 7. USE SAFETY GLASSES • Everyday eyewear does not feature impact resistance lenses, and they are NOT safety glasses 8. WEAR DUST MASK • Some dust created by grinding activities may contain chemicals known to cause cancer, birth defects or other harm. Provide adequate ventilation.
- Page 6 22. DO NOT USE STONE WHEELS • The use of stone or vitreous wheels on any Burr King grinder is prohibited. The machine guarding is not suitable for these types of wheels. To do so will create an operator safety hazard.
- Page 7 AUTHORIZED BURR KING DISTRIBUTOR, OR BURR KING MANUFACTURING AT 1-800-621-2748. YOUR SAFETY IS OUR FOREMOST CONCERN! Burr King Manufacturing disclaims any and all responsibility for injuries, damage, loss of income, or other adverse consequence as might be incurred by purchasers, managers, and operators of this equipment.
- Page 8 BURR KING MFG. CO., INC. 1220 TAMARA LANE WARSAW MO 65355 WWW.BURRKING.COM (660) 438-8998 (800) 621-2748 FAX (660) 438-8991 960-272 ASSEMBLY INSTRUCTIONS Please note that your grinder has been partially disassembled to help prevent damage during shipping. We hope this will not cause you an inconvenience. If you have any questions or need assistance please contact the factory 800-621-2748.
- Page 9 Operating instructions for the Model 960-272 belt grinder Over view: The model 960-272 belt grinder is a two-wheel belt grinder that uses a 2 x 72-inch (50.8mm x 1.82m) continuous loop abrasive belt. For maximum efficiency and your safety we recommend you read and understand all operating instructions, manuals, labels, and other information provided with the equipment.
- Page 10 Functional machine operating instructions Perform the following steps before each use of your model 960-272 belt grinder: Insure that the gap (nip point) between the face of the abrasive belt and the work rest is adjusted so that your work piece will not pass through this gap. See Figure 2.1...
- Page 11 2) Reverse the motor direction of a fixed speed single phase motor by reversing leads 5 and 8 found within the metal wiring box located on the motor, or as otherwise instructed on the actual motor label. 3) To reverse variable speed models consult the documentation that was supplied with the motor controller, or call the Burr King factory for assistance.
- Page 12 There are no other maintenance actions required. All bearings are sealed for life and require no additional lubrication. Burr King Manufacturing can help you with problem solutions, and/or answers to your questions. Please call your Burr King distributor first; if you can not reach satisfactory conclusion please call the Burr King factory.
-
Page 13: Parts List
MODEL 960-272 BURR KING 8" CONTACT WHEEL PARTS LIST 1220 TAMARA LANE WARSAW, MO. 65355 66 65 945K MARCH 2020... - Page 14 960-272 945K ITEM NO. PART NUMBER DESCRIPTION QTY. ITEM NO. PART NUMBER DESCRIPTION QTY. BASE SUPPORT, REAR WHL, w/STUD BURR KING 7-0058 WASHER, 3/8 x 7/8 NUT, 10-24, KEP WASHER, 5/16 SAE ZINC PLTD SCREW, 10-24 x 3/4, SOC, HD, CAP...
- Page 15 MODEL 960-272 BURR KING 10" CONTACT WHEEL PARTS LIST 1220 TAMARA LANE WARSAW, MO. 65355 945K MARCH 2020...
- Page 16 BURR KING 960-272 960-272 1220 TAMARA LANE WARSAW, MO. 65355 ITEM NO. PART NUMBER DESCRIPTION QTY. ITEM NO. PART NUMBER DESCRIPTION QTY. BASE 5-0032 WASHER, 1/4, LOCK, SPLIT, PLTD 7-0058 WASHER, 3/8 X 7/8 GUARD, IDLER WHEEL MOTOR CALL FACTORY * IDLER WHEEL 6 X 2, w/BRGS &...
-
Page 17: Optional Attachments
OPTIONAL ATTACHMENTS BURR KING PARTS LIST 1276 1220 TAMARA LANE WARSAW, MO. 65355 1277 946K... - Page 18 BURR KING 1220 TAMARA LANE WARSAW, MO. 65355 ITEM NO. PART NUMBER DESCRIPTION QTY. 9066 ARM, MAIN ATTACHMENT SCREW, SET, 5/16-18 X 3/8, ALLEN WASHER, 1/4 AN SCREW 1/4-20x1 1/4 SHCS 904B-5 BRACKET, PLATEN 904AKM PLATEN SCREW 1/4-20x1 SHCS 1444A...
- Page 19 BURR KING PARTS LIST 1220 TAMARA LANE WARSAW, MO. 65355...
- Page 20 BURR KING 1220 TAMARA LANE WARSAW, MO. 65355 ITEM NO. PART NUMBER DESCRIPTION QTY. 1425 BRACKET, MOUNTING WASHER, 1/4 AN 2-0011 SCREW, 1/4-20 X 1.5 ALLEN 1441 SCREW, SET, 1/4-20-1/2, ALLEN 9653 GUARD, L, SMALL, WHL. 5-0032 WASHER, 1/4, LOCK, SPLIT, PLTD...
- Page 21 272 VARI SPEED BURR KING PARTS LIST 1220 TAMARA LANE WARSAW, MO. 65355 1.5 HP 1 HP...
- Page 22 BURR KING 272 VARI SPEED ITEM NO. PART NUMBER DESCRIPTION QTY. 1220 TAMARA LANE WARSAW, MO. 65355 MB-4C BRACKET, MOUNTING, STARTER 941-3 BRACE, MB4 SUPPORT 5-0032 WASHER, 1/4, LOCK, SPLIT, PLTD WASHER, 5/16 SAE ZINC PLTD SCREW, 1/4-20 X 3/4 ALLEN HEAD...
-
Page 23: Wiring Diagram
WIRING DIAGRAM BURR KING 1220 TAMARA LANE WARSAW, MO. 65355 U V W L1L2 BLUE BROWN U V W TWIST TOGETHER T4, T5, T6 TWIST TOGETHER U, T7, T1 TWIST TOGETHER V, T2, T8 TWIST TOGETHER W, T3, T9 NOTE: LEESON- ALPH.
