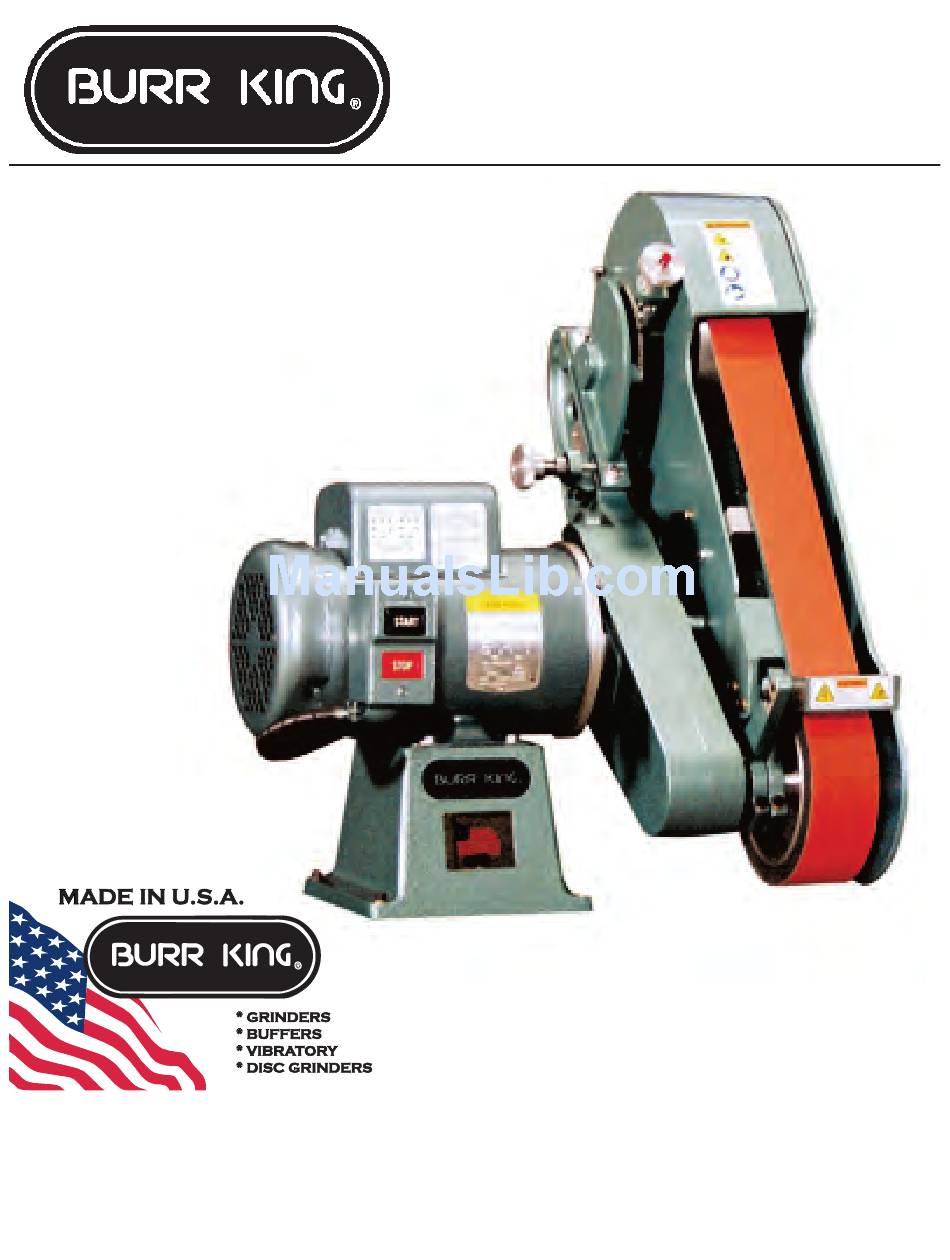

- Page 1 BURR KING MFG. CO., INC 1220 Tamara Lane Warsaw, MO 65355 www.burrking.com (660)438-8998 • 800-621-2748 Fax (660)438-8991 960-250 ODEL NSTRUCTION ANUAL 960-250 ODEL HEEL RINDER...
- Page 2 *Motors, speed controllers, and certain other accessories are warranted by their respective manufactures. To receive warranty service on these items you must contact a brand label service center that supports the product in need of service. Burr King Manufacturing Company; Inc. will assist you in locating a service center.
- Page 3 FAX (660) 438-8991 June 21, 2007 LETTER OF AUTHENTICITY This letter is to certify that all Burr King Belt grinders, Disc grinders, Polishing machines Vibra King Chambers and Bowls are manufactured and assembled in the United States of America. Tariff number 847990 criterion A)
- Page 4 BURR KING MFG. CO., INC. 1220 TAMARA LANE WARSAW MO 65355 WWW.BURRKING.CO (660) 438-8998 s (800) 621-2748 FAX (660) 438-8991 February 2005 OPERATOR, and OPERATING AREA SAFETY Subject equipment includes Grinders, buffers, polishers, and other rotating equipment. Serious injury or death may occur if minimum safety precautions are not understood, and obeyed by operators and those other persons who may be in the immediate vicinity of the subject equipment.
- Page 5 Manufacturing Companies standard warranty policy is summarized as follows for contact wheels. 1 year from date of purchase if mounted on a Burr King machine purchased on the same date or 90 days if purchased as a spare or replacement part. Our warranty does not apply to wheels that are mounted on products not manufactured by Burr King Manufacturing Company, Inc.
- Page 6 Noise levels produced by various Burr King grinders and polishers, as measured at the Burr King factory, range from 80 to 93 decibels. Product operators and persons in the immediate product vicinity should be protected from excessive noise does levels as prescribed in OSHA regulation 29, piece 1910.95 titled “Occupational Noise Exposure”.
- Page 7 BURR KING MFG. CO., INC. 1220 TAMARA LANE WARSAW, MO 65355 WWW.BURRKING.COM (660) 438-8998 s (800) 621-2748 FAX (660) 438-8991 Technical tip May 16, 2006 As you may know we improved many of our 120 and 220-volt single-phase variable speed grinders and buffers to use a three-phase AC motor with an inverter controller rather than the DC motors and a rectifier controller previously used.
- Page 8 At the application site you and our customer must assure 20-ampere service is used. Should the user defeat the 20 ampere polarized plug provided by Burr King in favor of a 15-ampere service he may experience nuisance circuit breaker trips.
- Page 9 Operating instructions for the Model 960-250 or 960-400 belt grinders The model 960-250 or 960-400 belt grinders are two wheel path belt grinders that use a 2.5 or 4.0 x 60-inch continuous loop abrasive belt. For maximum effectiveness, and operator safety use abrasive belts manufactured by well respected abrasive manufacturers.
- Page 10 “single phasing”, overheating, etc. thereby reducing the risk of damage to the equipment and/or fire hazard to your facility. 11. Insure that the model 960-250 or 960-400 AC power source is properly sized, and properly fused. You should consult a competent electrician, or you may call Burr King Manufacturing for guidance.
- Page 11 Do not mix alloys in your grinding. To do so may create an explosion hazard. Do not use stone or vitreous wheels on the model 960-250 or 960-400. To do so will create an operator safety hazard.
-
Page 12: Parts List
MODEL 960-250 BURR KING PARTS LIST 1220 TAMARA LANE WARSAW, MO. 65355... - Page 13 1/4-20x1 1/4 SHCS 742H GROMMET, SAFETY GUARD DOOR SCREW, 1/4-20 X 1, FH PHILLIPS 742L LATCH, SAFETY GUARD DOOR NUT, 3/8-24, JAM, ESNA, NTE 900A FRAME/GUARD ASSY, 960-250 WASHER, SAE, 3/8 904B BRACKET, PLATEN MOTOR MOTOR 942A GUARD, SAFETY, PAINTED 1-0003...
- Page 14 MAG STARTER BURR KING PARTS LIST 1220 TAMARA LANE WARSAW, MO. 65355...
- Page 15 BURR KING 1220 TAMARA LANE WARSAW, MO. 65355 MAG STARTER ITEM NO. PART NUMBER DESCRIPTION QTY. MB-4C BRACKET, MOUNTING, STARTER MOTOR CALL FACTORY FOR PART NUMBER WASHER, 5/16 SAE ZINC PLTD BOLT, 5/16-18x3/4 HEX HEAD WASHER, 1/4 AN SCREW, 1/4-20 X 3/4 ALLEN HEAD...
-
Page 16: Single Phase
VARI SPEED BURR KING SINGLE PHASE 1220 TAMARA LANE WARSAW, MO. 65355 3/4-1 HP 1.5-3 HP... - Page 17 VARI SPEED BURR KING ITEM NO. PART NUMBER DESCRIPTION QTY. 1220 TAMARA LANE MB-4C BRACKET, MOUNTING, STARTER WARSAW, MO. 65355 941-3 BRACE, MB4 SUPPORT 5-0032 WASHER, 1/4, LOCK, SPLIT, PLTD WASHER, 5/16 SAE ZINC PLTD SCREW, 1/4-20 X 3/4 ALLEN HEAD...
- Page 18 BURR KING 7.25 1220 TAMARA LANE WARSAW, MO. 65355 .312 M960-250 (4) PLCS BASIC DIMENSIONS 7.75 MOUNTING PATTERN NOTE: - ALL DIMENSIONS ARE IN INCHES TOP VIEW 26 REF 16 1/2 REF 9 1/8 5 3/4 FRONT VIEW SIDE VIEW...
