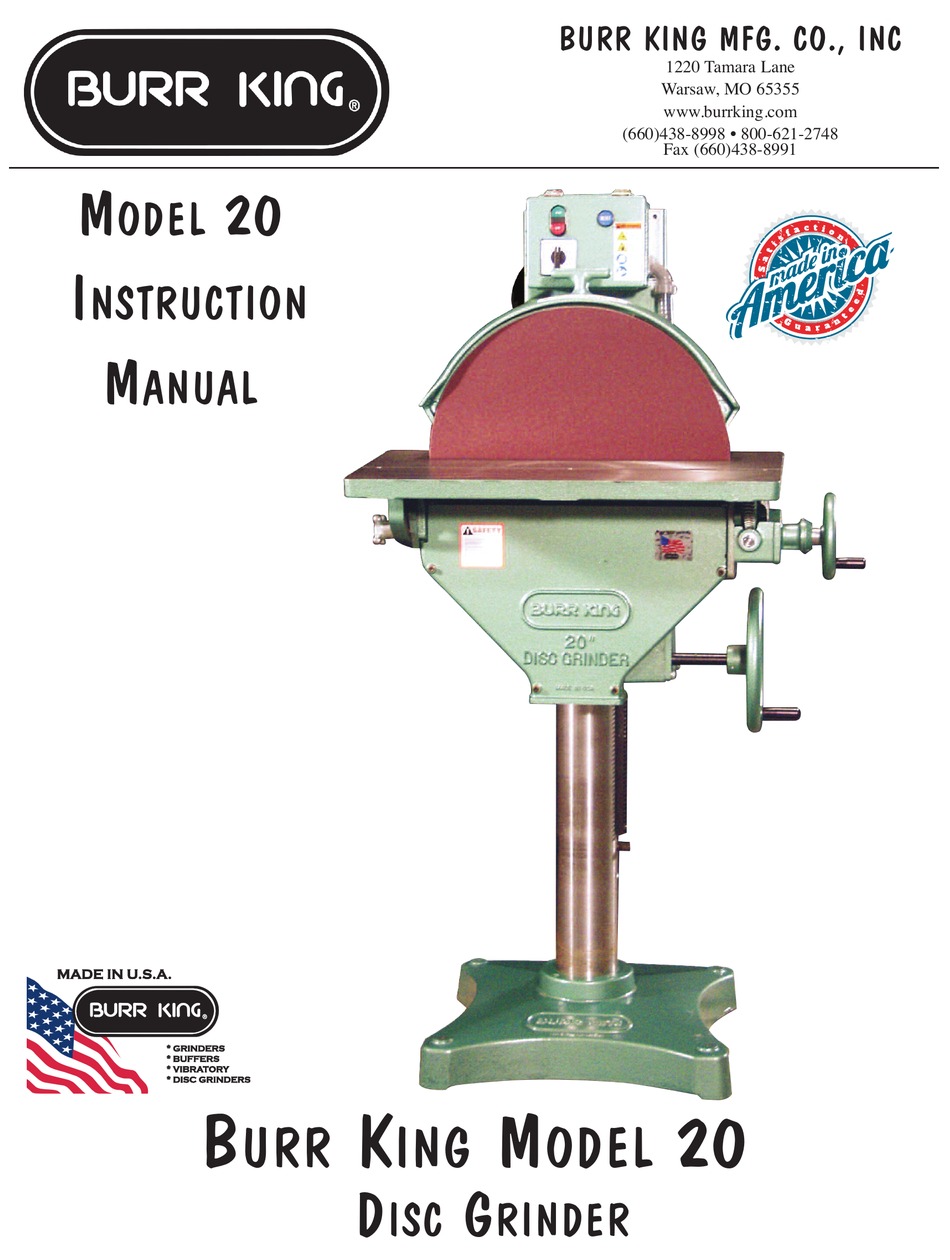

- Page 1 BURR KING MFG. CO., INC 1220 Tamara Lane Warsaw, MO 65355 www.burrking.com (660)438-8998 • 800-621-2748 Fax (660)438-8991 ODEL NSTRUCTION ANUAL ODEL RINDER...
- Page 2 Burr King Manufacturing Company. Inc. warrants the below product to be free in material and workmanship. The period of warranty is 1 year (90 days for vibratory bowls of 20 quart and lesser volume) from the date of purchase. No warranty is provided for products that have been modified, abused, handled carelessly, where repairs have been made or attempted by others, or for freight damage.
- Page 3 FAX (660) 438-8991 August 29, 2007 LETTER OF AUTHENTICITY This letter is to certify that all Burr King Belt grinders, Disc grinders, Polishing machines Vibra King Chambers and Bowls are manufactured and assembled in the United States of America. Tariff number 847990 criterion A)
- Page 4 BURR KING MFG. CO., INC. 1220 TAMARA LANE WARSAW MO 65355 WWW.BURRKING.COM (660) 438-8998 (800) 621-2748 FAX (660) 438-8991 February 2005 OPERATOR, and OPERATING AREA SAFETY Subject equipment includes Grinders, buffers, polishers, and other rotating equipment. Serious injury or death may occur if minimum safety precautions are not understood, and obeyed by operators and those other persons who may be in the immediate vicinity of the subject equipment.
- Page 5 19. Do not operate the equipment, or allow others to operate the equipment without proper training in these and other rotating machinery safety requirements. 20. Do not perform maintenance on the equipment unless you are fully qualified to do so, and understand all necessary safety and operating requirements.
- Page 6 Noise levels produced by various Burr King grinders and polishers, as measured at the Burr King factory, range from 80 to 93 decibels. Product operators and persons in the immediate product vicinity should be protected from excessive noise does levels as prescribed in OSHA regulation 29, piece 1910.95 titled “Occupational Noise Exposure”.
- Page 7 The model 20 disc grinder is a three horse power heavy duty disc grinder intended for de-burring, shaping, beveling, metals, plastics, woods, and other materials using a 20 inch PSA abrasive disc that rotates at up to 1750 RPM. Various models are available that include fixed disc speed, fixed disc speed with disc brake, and electronic variable speed with integrated disc braking.
- Page 8 Note: Do not spin or otherwise force the table mechanism to the end of travel up or down. To do so may shear keepers, shafts, or gears inside the table gear box. Always secure the table with the table locking clamp before using the model 20 grinder. 5. As before assure that the disc spins freely.
- Page 9 Do not reach inside the safety guards while the machine is running. Do not use fluids in your grinding process unless your model 20 is designed for liquid operation (NEMA 4, 4X). To do so may create an electrical safety hazard. Only specially ordered model 20 grinders are “liquid safe”.
- Page 10 20" DISC GRINDER BURR KING PARTS LIST 1220 TAMARA LANE WARSAW, MO. 65355 DETAIL DETAIL DATE DRAWN REV DATE DRAWN BY SHEET 8/3/2009 1 OF 4...
- Page 11 BURR KING 1220 TAMARA LANE WARSAW, MO. 65355 TITLE DATE DRAWN REV DATE DRAWN BY SHEET DETAIL A 8/3/2009 2 OF 4...
- Page 12 BURR KING 1220 TAMARA LANE WARSAW, MO. 65355 TITLE DATE DRAWN REV DATE DRAWN BY SHEET DETAIL B 8/3/2009 3 OF 4...
- Page 13 INDICATOR, ROUND 701B BEARING 2013 WHEEL, HAND SMALL 5-0026 SHIM (.015), ARBOR 3-0010 SCREW, SET 1/4-20 x 1/4 CUP 2044 HANDLE, SMALL WHEEL 2014 WHEEL, LARGE HAND 1445 SCREW, SET 1/4-20 x 3/8 2-0021 SCREW, 3/8 x 1-3/4, 5/16-18 x 1/2 SH...
- Page 14 20in DISC GRINDER BURR KING BASIC FOOT PRINT 1220 TAMARA LANE WARSAW, MO. 65355 17.75 RIGHT SIDE VIEW 17.75 0.50 MOUNTING PATTERN 28.00 54.00 40.47 WORKING SPACE LENGTH: 27-1/4" WIDTH: 11" 19.50 20.53 34.00 DATE DRAWN REV DATE DRAWN BY...
