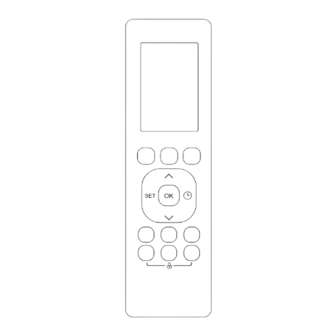

User Manual
Remote Controller
Climate 5000 Series
OK
SET

Advertisement

Table of Contents
loading

Related Manuals for Bosch Climate 5000 Series

Summary of Contents for Bosch Climate 5000 Series

  • Page 1 User Manual Remote Controller Climate 5000 Series...
  • Page 2 User Manual Bosch Climate 5000 Series Remote Control (06.2022)

  • Page 3: Table Of Contents

    5.1 Operation of Buttons 5.2 Indicators on LCD 5.3 Basic Operation 5.4 Advanced Settings Handling the Remote Controller 6.1 Location of the Remote Controller 6.2 Using the Remote Controller Holder (Optional) 6.3 Replacing Batteries Bosch Climate 5000 Series Remote Control (06.2022)

  • Page 4: Key To Symbols And Safety Instructions

    For more information go to www. Environment 23°F~140°F P65Warnings.ca.gov. Remote for 3x3 Cassette Model RG10N2(D2S) Rated Voltage 3.0 V (Alkaline AAA x2) Transmission Distance Up to 25 ft Environment 23°F~140°F Table 1 Bosch Climate 5000 Series Remote Control (06.2022)

  • Page 5: Wall Mounted Unit Remote Controller

    Each press will increase the auto-timed setting in 30 minute increments. When the setting time displays 10.0, TIMER Button each press will increase the auto-timed setting in 60 minutes increments. To cancel the auto-timed program, simply adjust the auto-on time to 0.0. Table 2 Bosch Climate 5000 Series Remote Control (06.2022)
  • Page 6 HUMIDITY Button will change in 5% increments. After setting the room humidity, it will display on the screen. NOTE: Humidity level may not be able to adjust in all confi gurations. Table 3 Bosch Climate 5000 Series Remote Control (06.2022)

  • Page 7: Indicators On Lcd

    Displayed when SLEEP function is active. the relative functional signs are shown on the display window. Displayed when TURBO function is active Displayed when INTELLIGENT EYE is active Displayed when FOLLOW ME function is active. Table 4 Bosch Climate 5000 Series Remote Control (06.2022)

  • Page 8: Basic Operation

    2. In the Auto mode, you can not switch the fan speed. The fan speed case, only step 1, 3 and 4 may be performed. will be automatically controlled. 3. If the Auto mode is not comfortable , the desired mode can be selected manually. Bosch Climate 5000 Series Remote Control (06.2022)
  • Page 9 While in Dry Mode, the unit will not shut down when it reaches the set temperature. The unit will will continue to run until it reaches 50 °F. Figure 7 Bosch Climate 5000 Series Remote Control (06.2022)
  • Page 10 The "TIMER ON" indicator remains on when this function is active. If you set both TIMER ON and TIMER OFF, the timers will activate from the time they were set. Start 2.5 hours later Figure 8 1 0 | Bosch Climate 5000 Series Remote Control (06.2022)

  • Page 11: Advanced Settings

     FOLLOW ME ( ): In this mode, the ambient temperature will be measured from the remote controller instead of the indoor unit itself, and adjust the system accordingly for maximum comfort. | 11 Bosch Climate 5000 Series Remote Control (06.2022)
  • Page 12 75%(up to 75% electrial energy consumption) --> 50%(up to 50% electrial energy consumption) -->Previous setting mode. Under GEAR operation, the display on the remote controller will alternate between electical energy consumption and set temperature. 1 2 | Bosch Climate 5000 Series Remote Control (06.2022)
  • Page 13 Press Power, Mode, Sleep, Turbo or Clean button to cancel silence function. 3.4.7 LOCK Press and hold the TURBO and HUMIDITY buttons together for 5 seconds to lock/unlock the remote. Figure 19 | 13 Bosch Climate 5000 Series Remote Control (06.2022)

  • Page 14: 2 X 2 Cassette Unit Remote Controller

    Each press will increase the auto-timed setting in 30 minute increments. When the setting time displays 10.0, TIMER Button each press will increase the auto-timed setting in 60 minutes increments. To cancel the auto-timed program, simply adjust the auto-on time to 0.0. Table 5 1 4 | Bosch Climate 5000 Series Remote Control (06.2022)
  • Page 15 Press this button to Activate/Disable the indoor unit screen display. Press this button to light the display or clear LED Button the display. CLEAN Button Press this button to activate the units auto-clean feature. Table 6 | 15 Bosch Climate 5000 Series Remote Control (06.2022)

  • Page 16: Indicators On Lcd

    Displayed when SLEEP function is active. Displayed when FOLLOW ME function is active. Displayed when SILENT function is active Not applicable for this unit Table 7 1 6 | Bosch Climate 5000 Series Remote Control (06.2022)

  • Page 17: Basic Operation

    2. In the Auto mode, you can not switch the fan speed. The fan speed case, only step 1, 3 and 4 may be performed. will be automatically controlled. 3. If the Auto mode is not comfortable , the desired mode can be selected manually. | 17 Bosch Climate 5000 Series Remote Control (06.2022)
  • Page 18 While in Dry Mode, the unit will not shut down when it reaches the set temperature. The unit will will continue to run until it reaches 50°F. Figure 26 1 8 | Bosch Climate 5000 Series Remote Control (06.2022)
  • Page 19 The "TIMER ON" indicator remains on when this function is active. If you set both TIMER ON and TIMER OFF, the timers will activate from the time they were set. Start 2.5 hours later Figure 27 | 19 Bosch Climate 5000 Series Remote Control (06.2022)

  • Page 20: Advanced Settings

    Press and hold the TURBO button for 7 seconds to activate the FOLLOW ME memory feature. Figure 31 2 0 | Bosch Climate 5000 Series Remote Control (06.2022)
  • Page 21 Figure 32 Figure 34 Press the SWING button, and the louvers in the indoor unit will oscillate up and down. CLEAN is only available in COOL and DRY mode. Figure 33 | 21 Bosch Climate 5000 Series Remote Control (06.2022)
  • Page 22 Figure 36 Turbo or Clean button to cancel silence function. 4.4.8 LOCK Press and hold the TURBO and CLEAN buttons together for 5 seconds to lock/unlock the remote. Figure 37 2 2 | Bosch Climate 5000 Series Remote Control (06.2022)

  • Page 23: 3 X 3 Cassette Unit Remote Controller

    For more information on the Set function, refer to section 5.4 NOTE: Fresh and AP mode are not available for this unit. OK Button Press this button to confi rm selection functions. Table 8 | 23 Bosch Climate 5000 Series Remote Control (06.2022)
  • Page 24 Press this button to Activate/Disable the indoor unit screen display. Press this button to light the display or clear LED Button the display. Vane VANE Button Press this button to enter the louver adjustment mode. Table 9 2 4 | Bosch Climate 5000 Series Remote Control (06.2022)

  • Page 25: Indicators On Lcd

    Displayed when SLEEP function is active. Displayed when TURBO function is active Displayed when INTELLIGENT EYE is active Displayed when FOLLOW ME function is active. Table 10 | 25 Bosch Climate 5000 Series Remote Control (06.2022)

  • Page 26: Basic Operation

    2. In the Auto mode, you can not switch the fan speed. The fan speed will be automatically controlled. 3. If the Auto mode is not comfortable , the desired mode can be selected manually. 2 6 | Bosch Climate 5000 Series Remote Control (06.2022)
  • Page 27 While in Dry Mode, the unit will not shut down when it reaches the set temperature. The unit will will continue to run until it reaches 50 °F. Vane Figure 44 | 27 Bosch Climate 5000 Series Remote Control (06.2022)
  • Page 28 The "TIMER ON" indicator remains on when this function is active. If you set both TIMER ON and TIMER OFF, the timers will activate from the time they were set. Start 2.5 hours later Figure 45 2 8 | Bosch Climate 5000 Series Remote Control (06.2022)

  • Page 29: Advanced Settings

     FOLLOW ME ( ): In this mode, the ambient temperature will be measured from the remote controller instead of the indoor unit itself, and adjust the system accordingly for maximum comfort. | 29 Bosch Climate 5000 Series Remote Control (06.2022)
  • Page 30 Figure 49 If the temperature is above75°F, the fan will be set to AUTO and the temperature will stay the same. Eco/Gear features may not be available in all confi gurations. 3 0 | Bosch Climate 5000 Series Remote Control (06.2022)
  • Page 31 Press the SWING button to make the selected louvers automatically oscillate Vane Vane Figure 51 Press the SWING button, and the louvers in the indoor unit will oscillate up and down. Figure 53 Figure 54 Figure 52 | 31 Bosch Climate 5000 Series Remote Control (06.2022)
  • Page 32 Due to low frequency operation of compressor, it may result in insuffi cient cooling and heating capacity. Press Power, Mode, Sleep, Turbo or Clean button while operating will cancel silence function. Figure 58 3 2 | Bosch Climate 5000 Series Remote Control (06.2022)

  • Page 33: Handling The Remote Controller

     Dispose of batteries properly, per local and national codes Install the remote controller holder with two screws. or requirements. For installing or removing the remote controller, move it up or down in the holder. Figure 60 | 33 Bosch Climate 5000 Series Remote Control (06.2022)
  • Page 34 User Manual Notes: 3 4 | Bosch Climate 5000 Series Remote Control (06.2022)
  • Page 35 User Manual Notes: | 35 Bosch Climate 5000 Series Remote Control (06.2022)
  • Page 36 United States and Canada Bosch Thermotechnology Corp. 65 Grove St. Watertown, MA 02472 Tel: 866-642-3198 Fax: 603-965-7581 www.bosch-thermotechnology.us BTC 769103308 B / 06.2022 Bosch Thermotechnology Corp. reserves the right to make changes without notice due to continuing engineering and technological advances.
