Preparation

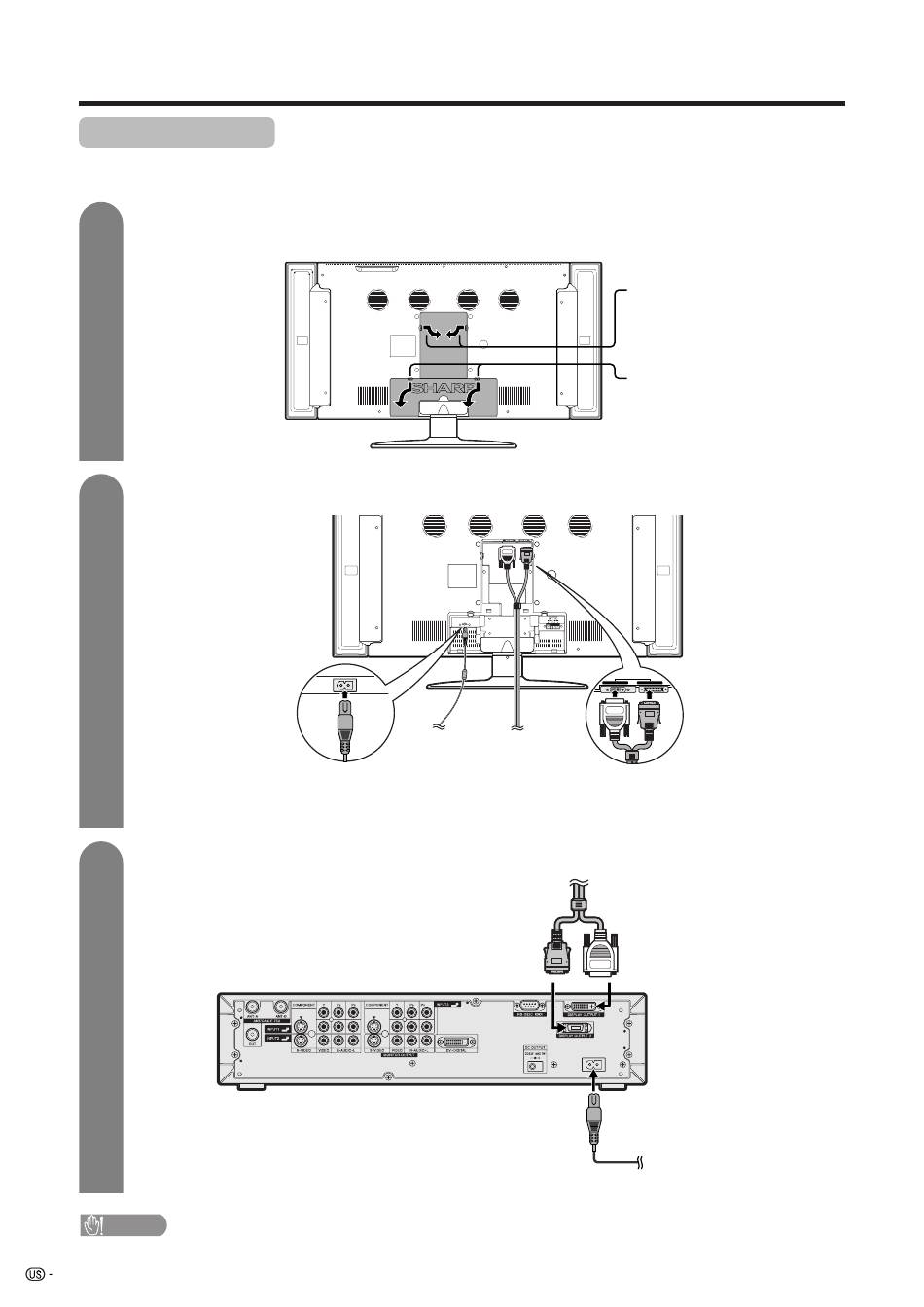

Setting the System

After putting the Display and the AVC System in place, connect the system cables and AC cords. Use the
cable clamps for bundling the cables.
1
Removing the terminal cover
2
Connecting the system cable and the AC cord to the Display
3
Connecting the system cable and the AC cord to the AVC System
CAUTION
• TO PREVENT RISK OF ELECTRIC SHOCK, DO NOT TOUCH UN-INSULATED PARTS OF ANY CABLES WITH THE
AC CORD CONNECTED.
10
Downloaded from: http://www.usersmanualguide.com/
Display (rear view)
AC cord
AVC System (rear view)
DISPLAY INPUT1
(WHITE)
Connect the plug into
the terminal and secure
System cable
it by tightening the
thumb screws.
System cable
(GRAY)
Press the two hooks
toward the center of the
Display and remove the
cover toward you.
Press down the two
upper hooks to remove
the cover toward you.
DISPLAY INPUT2
(GRAY)
Connect the plug firmly
until the hooks on both
sides click.
(WHITE)
AC cord
