ASSEMBLY INSTRUCTIONS
MODEL: PLTLEG-BEV24/PLTLEG-BEV30
Before assembly, please remove all parts from the carton, verifying that you have the correct quantities, and read all the instructions.
INSTRUCTIONS:
A. Installation with Adjustable Main Desk Beam
PLTRBB
Not Included
PLTCBBEV Not Included
PLTADJMDBxxxx
Not Included
Work surfaces are used in many applications. Pre-installed existing metal inserts in
the top are not required. For the Elements series, 20mm wood screws are provided.
Desk:

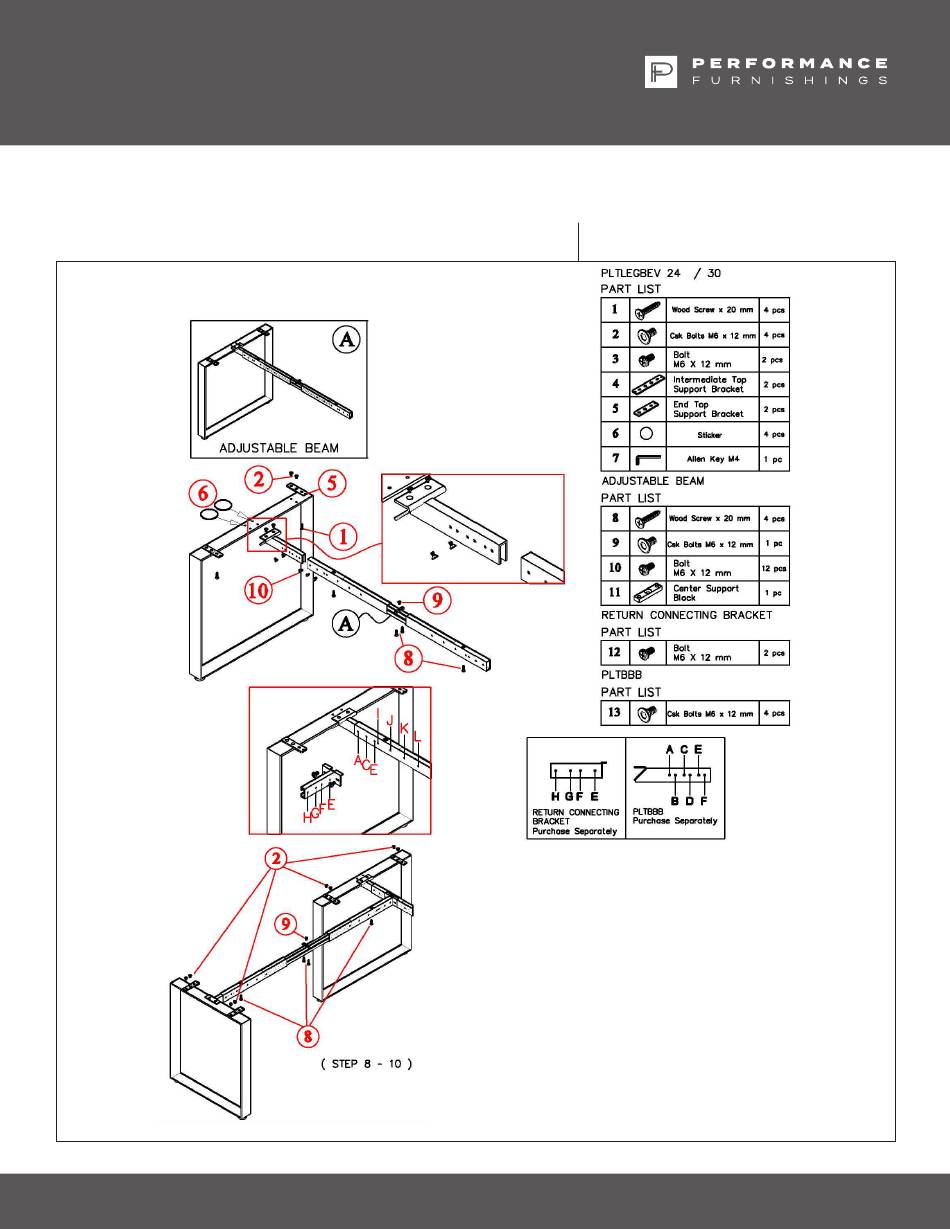

1. Place work surface upside down on a clean surface
2. Place both legs upside down on work surface with tabs PLTBBB facing each other
3. Slide cross beam over both tabs on leg
4. Attach cross beam to legs using M6 x 12mm (part 9)
5. Attach center legs on the work surface by using wood screws (part 1)
6. Flip table over to correct position
Return (if used):
7. Attach tab to desk crossbeam using M6 x 12mm bolts (part 9)
* Use holes AB for 24" deep Return
* Use holes BC for 30" deep Return
8. Attach crossbeam to return leg using M6 x 12mm bolts (part 9)
9. Slide crossbeam over tab that is attached to desk crossbeam, attach using M6 x
12mm bolts (part 9)
10. Mount the top onto return assembly using wood screws (part 7)
IN THE CARTON:
