Performance PLTVALEGMOUNT2430 Assembly Instructions

ASSEMBLY INSTRUCTIONS
MODEL: PLTVALEGMOUNT2430
Before assembly, please remove all parts from the carton, verifying that you have the correct quantities, and read all the instructions.
**Please Note: When attaching the metal legs to the laminate tops, not all of the provided holes on these metal legs will line
up with the metal inserts on the laminate tops. The provided wood screws may also need to be used**
INSTRUCTIONS:

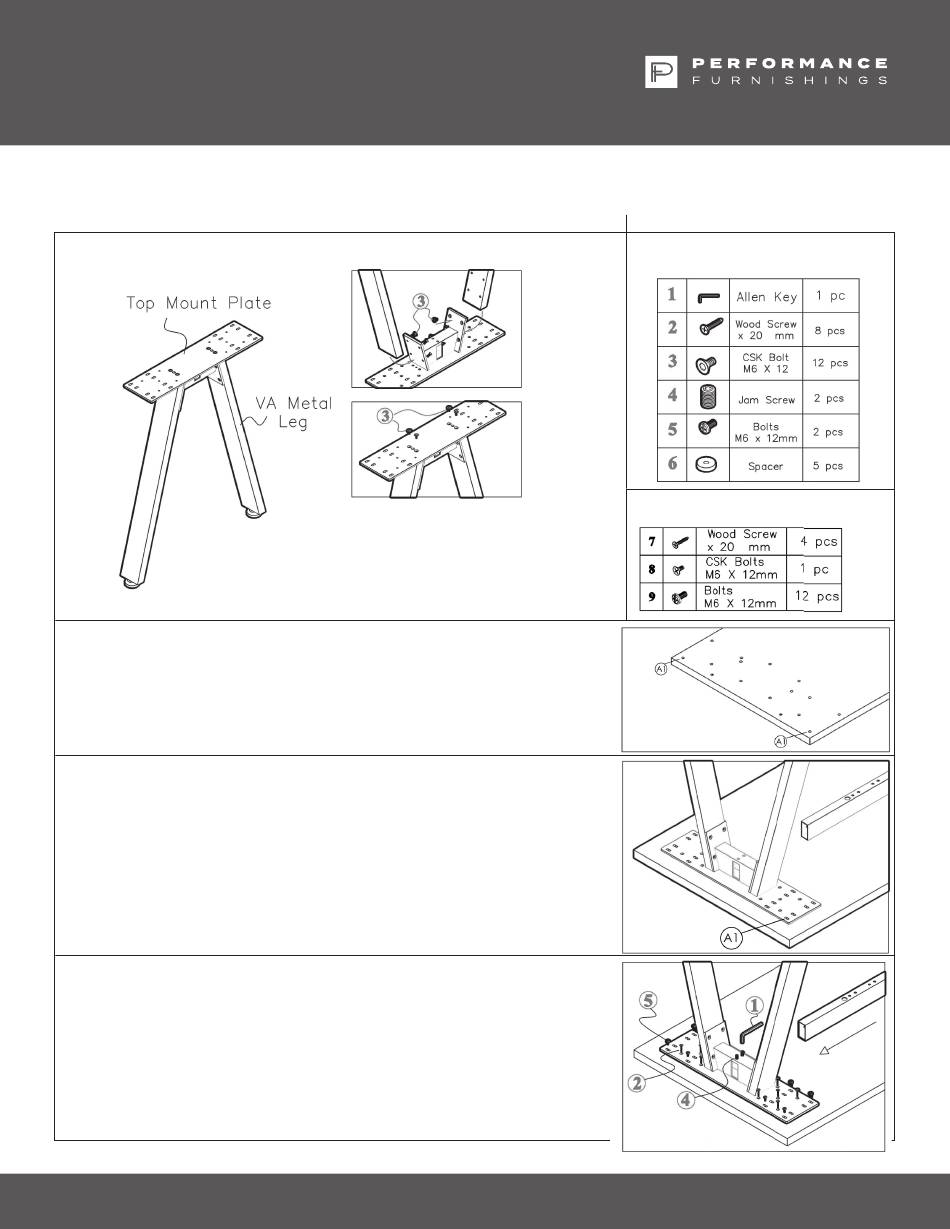

STEP 1
Place the VA metal or wood leg on the top mount plate, and use
bolts (part 3) to lightly tighten the VA leg to the top mount plate.
When everything is in position, then screw in the bolts tightly.
STEP 2
1. Place top upside down on a clean surface
2. PLBE/PLT table tops are used for several applications, and have many
metal inserts. Only two of these inserts are used for the PLTVALEG.
These inserts are the "A1" inserts, as per the PLT instructions.
STEP 3
3. Slide the metal cross beam slightly through the opening found at the top
of the leg
4. Fasten the second leg to the top following steps 2 and 3
5. Centre the cross beam so that it is placed evenly through the opening of
both legs
STEP 4
6. Tighten the cross beam to each leg by using two of the set screws with
Allen Key
7. Use wood screw (part 2) to attach the leg to the work surface.
IN THE CARTON:
Leg Part List
SOLD SEPARATELY
PLTCBBDESKBEAM
Main Desk Beam Parts List
1 of 2.
