1
2
Cam Lock
10 Pcs
A
B
Fixed Shelf
Bottom Panel
1
IMPORTANT NOTE :
Place all wooden parts on a clean, smooth surface to prevent the parts from being scratched.
Check that you have all parts and hardware.
Remove all wrapping materials, including staples & packing straps before you start to assemble.
Do not tighten any screws or bolts until the unit is completely assembled.
Keep all hardware parts out of reach of children.
REV. 1

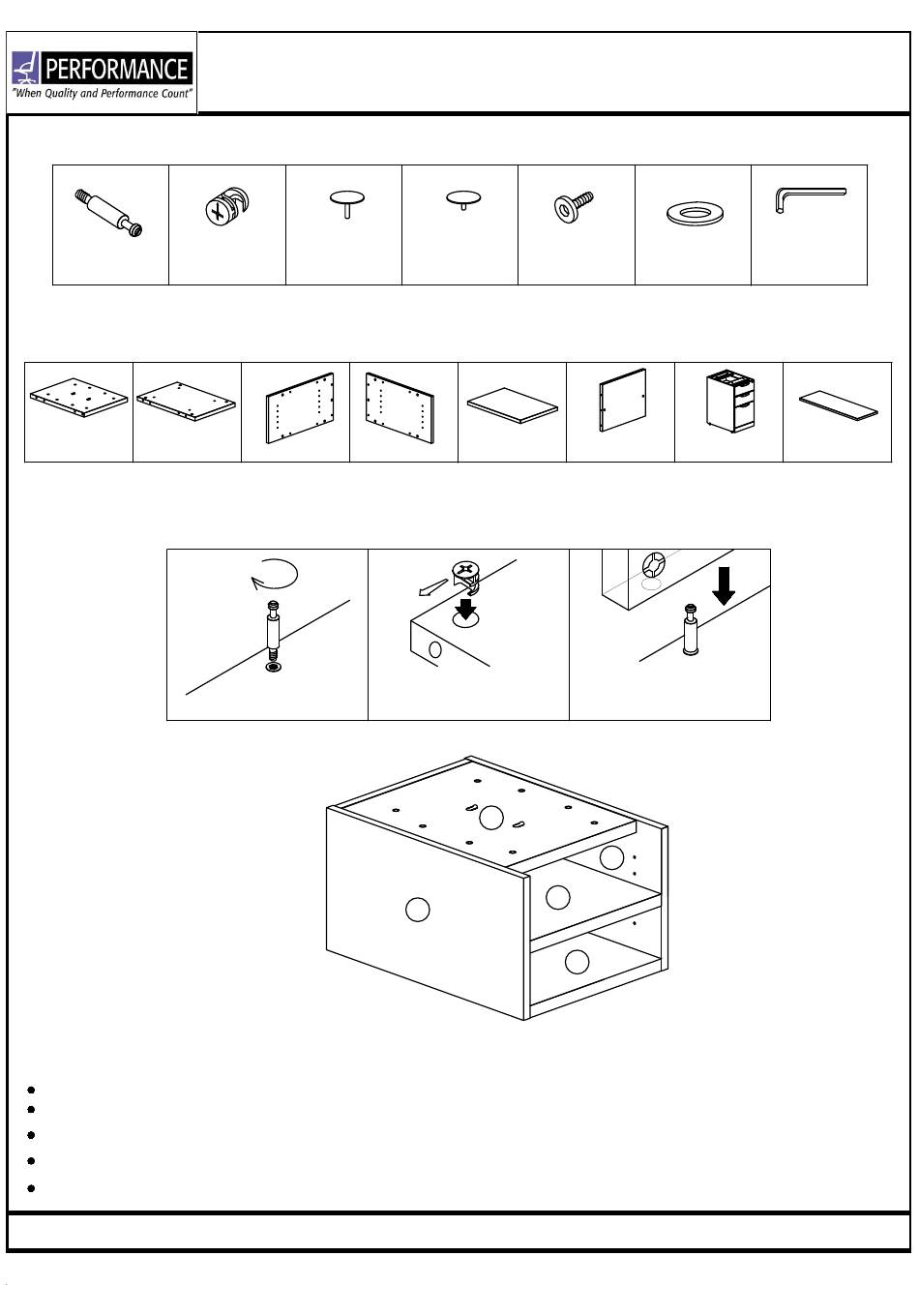

ASSEMBLY INSTRUCTION FOR PL1066
3
Housing
Klix Cam
Cap (Long)
10 Pcs
8 Pcs
C
D
Side Panel L
Side Panel R
KLIX CAM INSTRUCTIONS
2
Line up Cam Lock,
turn clockwise.
HARDWARE
4
5
Housing
Cap (Short)
M6 x 40MM
2 Pcs
COMPONENTS
E
Adjust Shelf
Insert the cam with the
arrow pointing towards the
hole in the edge.
A
E
C
6
Screw
Washer
4 Pcs
4 Pcs
F
G
PL166
Back Panel
(SOLD SEPARATELY)
3
Insert the Cam Lock into
Klix Cam. Turn Klix Cam to
lock.
D
B
7
M4 x 65
Allen-Key
1 Pc
H
PLT TOP
(SOLD SEPARATELY)
PAGE 1 OF 4
PL 1066_AI
