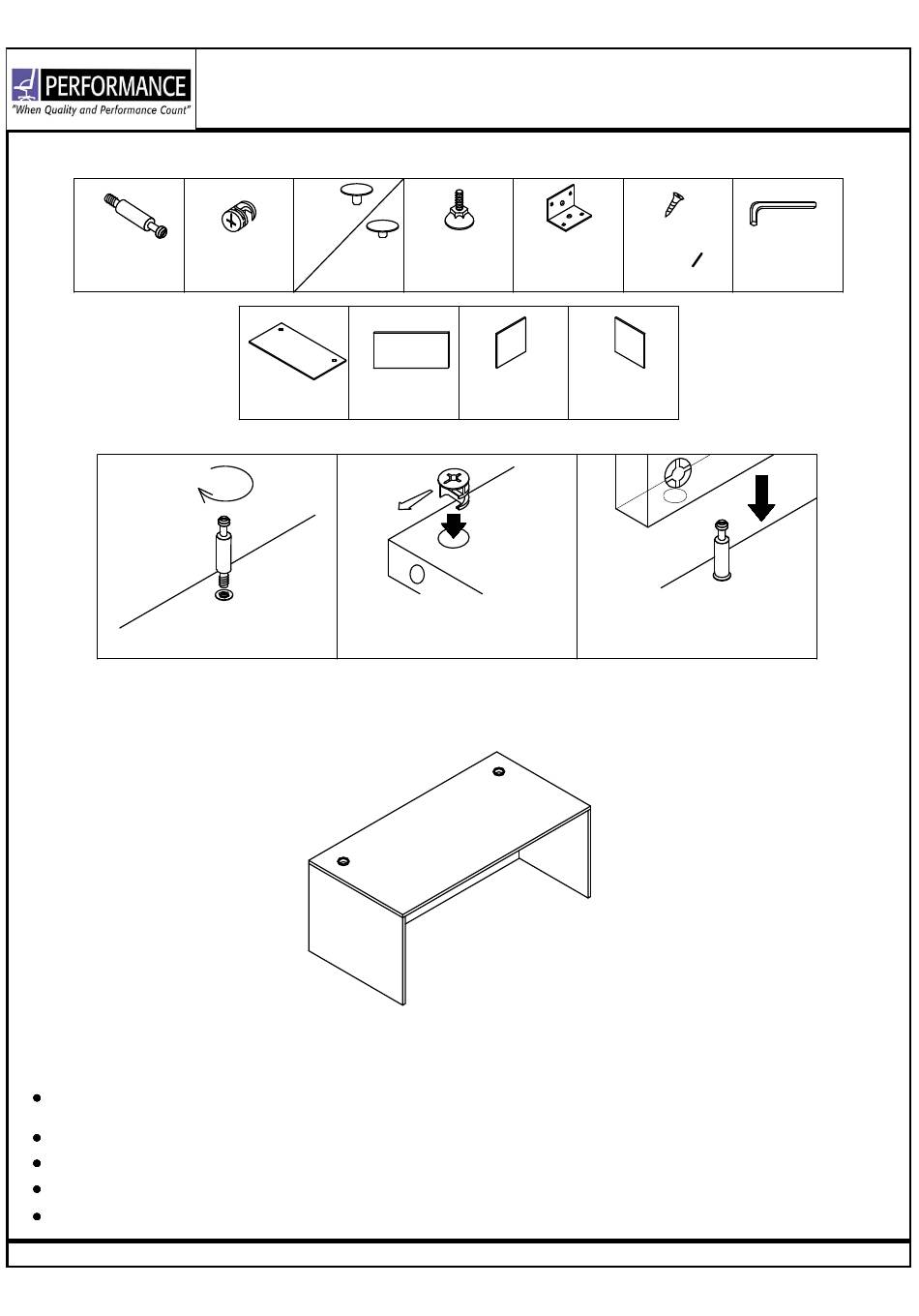

Performance PL 101GG Quick Start Manual

Thank you for purchasing the Performance Desk Shell.
1 2
Cam Lock Klix Cam
13 Pcs
1
Line up Cam Lock,
turn clockwise.
IMPORTANT :
Place all wooden parts on a clean and smooth surface such as a rug or carpet to avoid the parts from
being scratched.
Check to be sure that you have all parts and hardware.
Remove all wrapping materials, including staples & packing straps before you start to assemble.
Do not tighten screws/bolts until the unit is completely assembled.
Keep all hardware parts out of reach of children.
Please follow these instructions for easy assembly.
3
Housing
Cap (Long)
6 Pcs
Housing
Cap (Short)
13 Pcs
7 Pcs
A B
Top Panel Back Panel
KLIX CAM INSTRUCTIONS
2
Insert the cam with the arrow
pointing towards the hole in
4 5
Adjustable
6 Hole
Glide
L-Bracket
4 Pcs
5 Pcs
C D
Left Side Panel Right Side Panel
the edge.
6 7
Screw
M4 x 65
5
#6 x " Allen-Key
8
30 Pcs
3
Insert the Cam Lock into
Klix Cam. Turn Klix Cam to
lock.

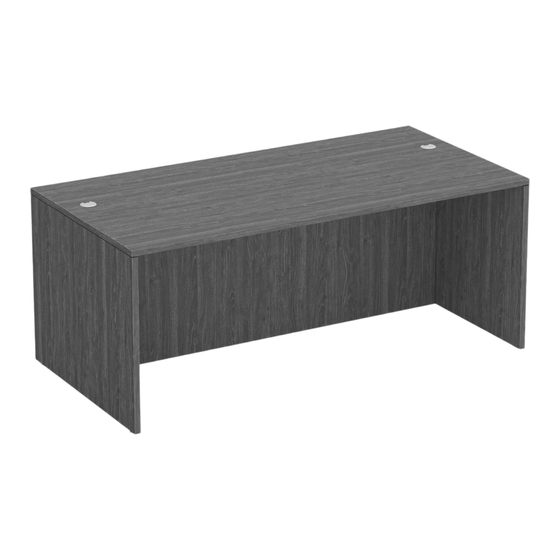

PL 101GG
DESK SHELL
1 Pc
