HP Visualize j6000 Supplementary Manual page 87

Removing the Top Cover

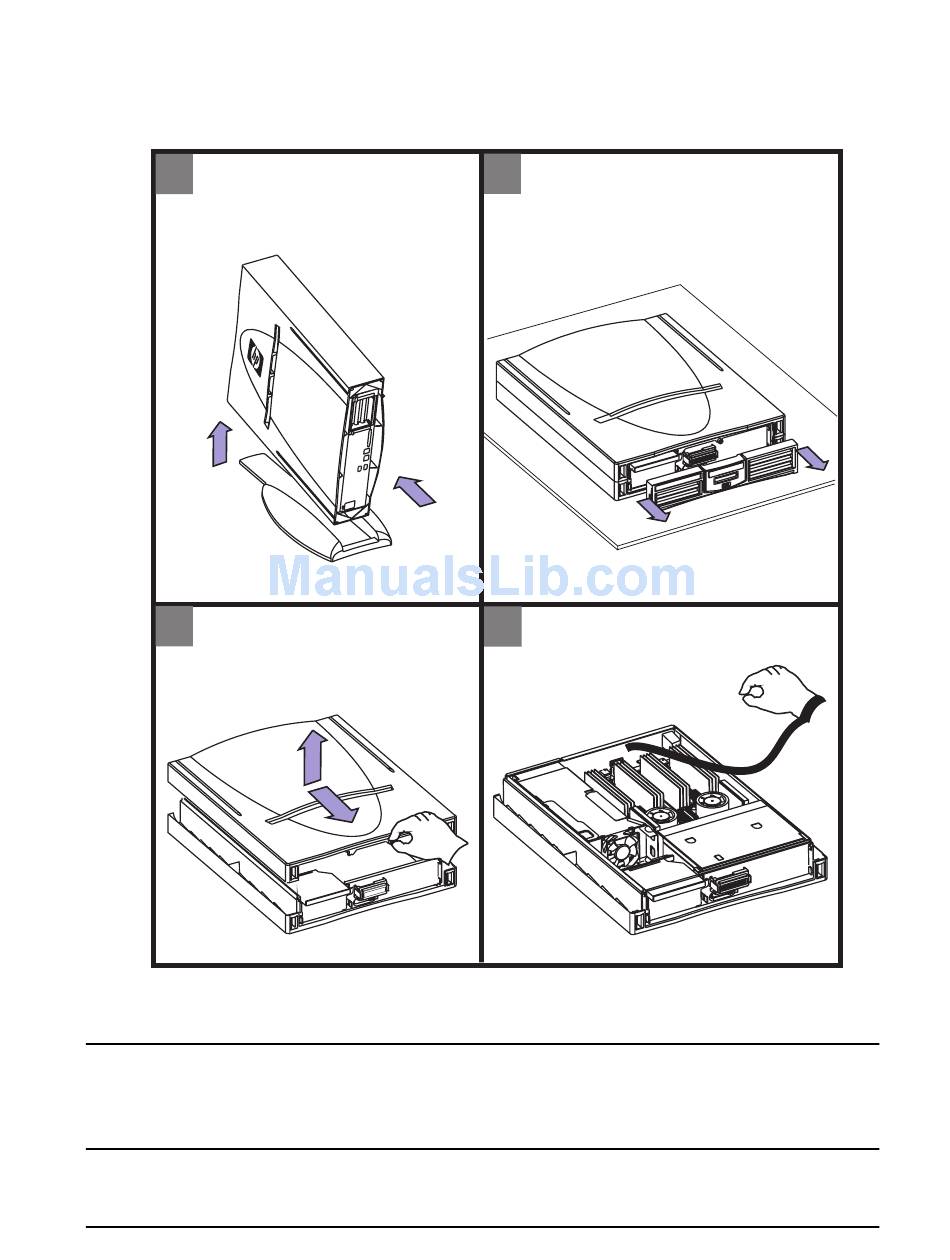

Figure 4-2. Removing the Top Cover
- Remove all connectors from
1
back of workstation
- Remove workstation from
pedestal.
1
Hold down pedestal when
removing workstation
3
- Remove top cover
1. Unscrew captive screw
2. Pull cover forward
3. Lift cover up.
To replace the top cover or front bezel, perform the above steps in reverse.
NOTE The graphics in these steps depict a desk side unit. If this is a rack mount
unit, the skins and pedestal will not be present. Rack mounted systems will
not have air louvres mounted in the front bezel. When replacing the bezel,
remove and discard the louvres from the new bezel unit.
Chapter 4
2
3
2
1
Field Replaceable Units (FRUs)
FRU Removal and Replacement
2
- Place workstation on a padded
surface
- Remove bezel
- Press in on both sides of bezel
and pull forward as shown.
4
- Attach anti-static strap
87
