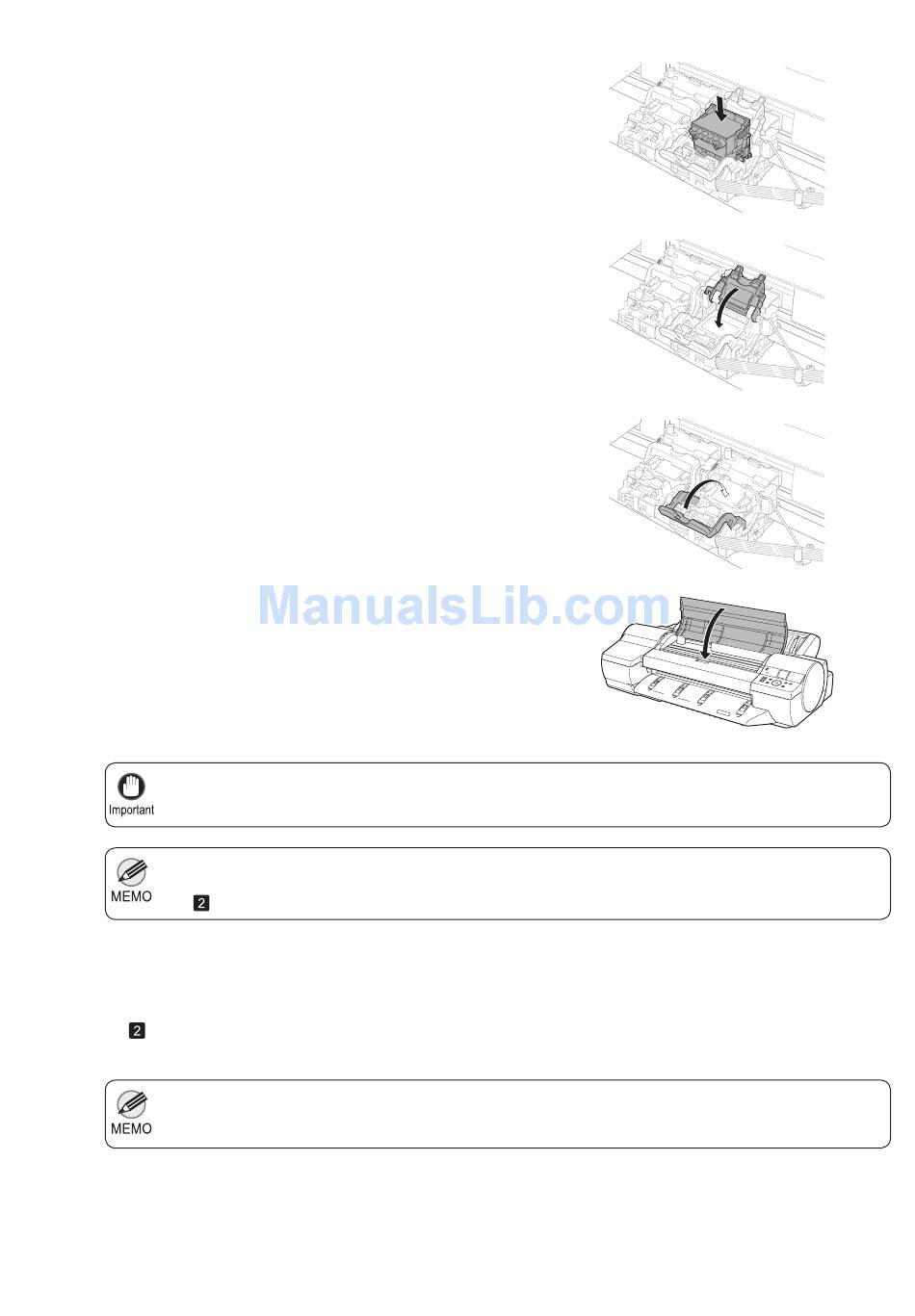

Replacing the Printhead
8
With the nozzles facing down and the metal contacts
toward the back, insert the Printhead into the Carriage .
Carefully push the printhead fi rmly into the Carriage ,
ensuring that the nozzles and metal contacts do not touch
the carriage.
9
Pull the Printhead Fixer Cover down toward the front to
lock the Printhead in place.
10
Push the Printhead Fixer Lever toward the back of the
printer until it clicks.
11
Close the Top Cover .
Ink is being fi lled. It takes about nine minutes for ink to fi ll
the system.
• While ink is being fi lled, defi nitely do not remove the Ink Tank . Ink may leak out.
• The procedure is now fi nished if you have set Rep.P.head Print to Off in the Control Panel menu.
If so, execute Head Posi. Adj. > Auto(Advanced) in the Control Panel menu.
(→
12
Follow the instructions on the Display Screen and supply
paper that you will use for printing. After the paper is
advanced, Head Posi. Adj. will be executed automatically.
(→ , If Vertical Lines are Warped or Colors are
Misaligned)
• When printing fi ne lines or text at high precision on glossy or semi-glossy photo or proofi ng paper, set
the optimal Printhead height before aligning the printhead.
(→"Enhancing Printing Quality," User's Guide)
, If Vertical Lines are Warped or Colors are Misaligned)
