TRANSLATION OF THE ORIGINAL INSTRUCTIONS
These instructions apply only for the destination countries listed on the appliance's data
plate. This is a class 3 built-in hob.
We advise you to read this manual carefully, which contains all the instructions for
maintaining the appliance's aesthetic and functional qualities. For further information on the
product: www.smeg.com
Contents
42
42
46
46
47
48
48
49
51
51
52
52
60
63
64
66
69
70
70
70
70
70
71
72
72
73
73
74
74
75
41
Advertisement
Table of Contents
Related Manuals for Smeg SI1M4844D
Summary of Contents for Smeg SI1M4844D
-
Page 1: Table Of Contents
These instructions apply only for the destination countries listed on the appliance's data plate. This is a class 3 built-in hob. We advise you to read this manual carefully, which contains all the instructions for maintaining the appliance’s aesthetic and functional qualities. For further information on the product: www.smeg.com... -
Page 2: Instructions
Instructions 1 Instructions • Cleaning and maintenance must not be carried out by 1.1 General safety instructions unsupervised children. • Be aware of how rapidly the Risk of personal injury cooking zones heat up. Do not let • During use the appliance and its pans heat up when dry, as there is accessible parts become very hot. - Page 3 Instructions • Do not use or store flammable Risk of damaging the appliance materials near the appliance or • Do not use abrasive or corrosive directly underneath the hob. detergents (e.g. scouring • DO NOT USE AEROSOLS IN powders, stain removers and THE VICINITY OF THIS metallic sponges) on glass parts.
- Page 4 Instructions • All pans must have smooth, flat Installation bottoms. • THIS APPLIANCE MUST NOT BE • If any liquid does boil over or spill, INSTALLED IN BOATS OR remove the excess from the hob. CARAVANS. • Take care not to spill acid •...
- Page 5 Instructions For this appliance • Supervise children carefully as they cannot readily see the • If cracks or fissures form, or if the residual heat indication. After use glass ceramic cooking surface the cooking zones remain hot for breaks, turn off the appliance a certain period of time even if immediately.
-
Page 6: Appliance Purpose
Instructions • This appliance complies with the 1.4 Identification plate current standards and directives The identification plate bears the regarding safety and technical data, serial number and electromagnetic compatibility. It is brand name of the appliance. Do not however recommended for remove the identification plate for pacemaker wearers to maintain a any reason. -
Page 7: How To Read The User Manual
Instructions • Deliver the appliance to the 1.7 How to read the user manual appropriate recycling centre for This user manual uses the following reading electrical and electronic conventions: equipment waste, or return it to Instructions the retailer when purchasing an General information on this user equivalent product, on a one for manual, on safety and final... -
Page 8: Description

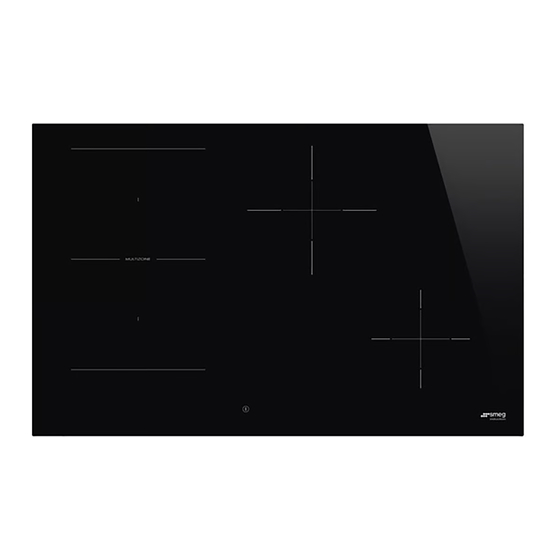

Description 2 Description 2.1 General description 80 cm (4 cooking zones) 80 cm (5 cooking zones) 90 cm... -
Page 9: Control Panel
Description Maximum absorbed power table (Watt) Dimensions Level 9 Booster Double Booster H x L (mm) Zone 1/ 2: Single 180 x 218 2100 2500 3000 Zone 1/ 2: 360 x 218 1500 1850 Multizone Zone 3 250 x 250 2300 3000 Zone 4... - Page 10 Description Advantages of induction cooking Power control The hob is fitted with a power control The appliance is equipped with an module that optimises/limits consumption. If induction generator for each the overall set power level exceeds the cooking zone. Each generator maximum limit permitted, the electronic located under the glass ceramic circuit board will automatically manage the...
-
Page 11: Use
3 Use High temperature Danger of fire or explosion 3.1 Instructions High temperature • Do not use or leave flammable materials near the appliance or directly Danger of burns underneath the hob. • Do not cook in closed tins or containers, •... -
Page 12: Preliminary Operations
3.2 Preliminary operations List of icons In order to remove any moisture that could Warming function icon. have accumulated during the manufacturing process and for the electronic circuits and Timer icon. control keypad to work properly: 1. Remove the protective films from the Pause function icon. - Page 13 Cooking zones display * When using a pan with diameters smaller than the smallest diameter shown in the “Ø minimum (cm)” column, it may not be detected. Bear in mind the following: • Do not exceed the limits of the zones printed on the hob.
- Page 14 terracotta cookware. To see whether the pan is suitable, bring a magnet close to the bottom: if it is attracted, the pan is suitable for induction cooking. If you do not have a magnet, you can put a small amount of water in the pan, place it on a cooking zone and start the hot plate.
- Page 15 Protection from overheating • If possible, always cover saucepans with a suitable lid. If the hob is used on full power for a long • Choose a pan suitable for the quantity of period, the electronics will have trouble food to be cooked. A large, half-empty cooling down if the room temperature is saucepan leads to a waste of energy.
- Page 16 Switching the hob on and off • The button corresponding to the zone on which the pan has been placed turns on Keep the On/Off button pressed in automatically and displays . The for at least 1 second to activate the hob. Press it again for at least one second to other zones cannot be activated.
- Page 17 Adjusting the cooking zone The display of the zone being used After having selected/activated a cooking indicates zone: 1. Place a finger on the left-hand side of the scroll bar of the cooking zone to be Hold the On/Off button used.
- Page 18 The display of the cooking zone used will Booster Function show . Select any other power level to Improper use Danger of burns deactivate the Booster function. The Booster function can be activated quickly. • Do not use the Booster and Double •...
- Page 19 The same power level will be set for both Multizone function cooking zones. This function can be used to It is only possible to activate the operate two Multizone function between zones cooking zones (front and 1 and 2. rear) when using pans like fish kettles or rectangular pans.
- Page 20 Cooking guidelines The table below shows the power values which can be set, together with the corresponding type of food. Settings may vary depending on the amount of food and consumer taste. Power level Suitable for: Reheating food, keeping small amounts of water on the boil, 1 - 2 and whipping up sauces with...
-
Page 21: Additional Functions
After selecting a cooking zone: Residual heat indication • Press and hold a power level (from 1 to Improper use 8) for at least 3 seconds. Danger of burns • The symbol appears on the display • Supervise children carefully as they of the cooking zone alternating with the cannot easily see the residual heat selected power level. - Page 22 7. When the time elapses, a series of beeps Independent timer will be emitted and the timer display will • This function is used to set a start to flash. Press the timer display to countdown timer that will emit a deactivate the buzzer.
-
Page 23: Special Functions
Modifying and deactivating the Recall Function independent timer This is used to restore some If you modify a timer that has functions that have already been already been started, it has to be started after the appliance has reset from the beginning. been switched off unintentionally. - Page 24 This function has an automatic and a symbol appears on the front zone manual mode: • Automatic mode (default), adjusts the display and the symbol appears on the hood extractor fan speed according to rear zone display. The scroll bar will be set the total power of the appliance (see automatically to level 9.
-
Page 25: Settings Menu
3.6 Settings menu To deactivate the Pause function: 1. Access the settings menu. The settings menu allows you to modify some of the operating characteristics of the 2. Press the segment of the scroll bar below appliance and allows you to icon. - Page 26 At least one cooking zone must be active in Button sound volume order for the Clean function to be used: Allows you to adjust the volume of 1. Access the settings menu. the sounds associated with 2. Press the segment of the scroll bar below pressing the buttons.
-
Page 27: User Menu
3.7 User menu 4. The following appear on the cooking zone displays: The user menu allows you to modify the operating characteristics of the appliance. 4 cooking zones models: The user menu contains 9 options that can be modified. Each option is indicated on the display with the letter “U”, which alternates with a progressive number. - Page 28 Press the timer display to enable changes to • After selecting an option, press the front the power settings. Then press the left half of left display to modify it. the scroll bar to decrease the power or the According to the adjustment range right half to increase it.
- Page 29 Option U4 modifies the brightness of the Option U8 allows you to activate the Auto- display. 10 levels can be selected. Vent 2.0 function in automatic mode. 8 levels can be selected. The following table • 0: maximum brightness. summarises the possible settings: •...
-
Page 30: Error Codes
Cleaning and maintenance Exiting the user menu There are two ways to exit from the user menu: 1. Press the button. Any modifications will be discarded and the hob will be switched off. 2. Press and hold the On/Off button for at least 2 seconds. -
Page 31: Instructions
Cleaning and maintenance 4 Cleaning and maintenance 4.3 Ordinary weekly cleaning Clean and maintain the hob once a week 4.1 Instructions using an ordinary glass cleaning product. Always follow the manufacturer’s Improper use instructions. The silicon in these products Risk of damage to surfaces creates a protective, water-repellent membrane which also resists dirt. -
Page 32: What To Do If
Installation Changes in colour do not affect the The cooking results are unsatisfactory: operation and stability of the glass. These • Make sure that the cooking temperature are not alterations to the material of the hob is not too high or too low. but just residues which have not been The hob smokes: removed and have then carbonised. -
Page 33: Installation
Installation 5 Installation 80 cm models with 4 cooking zones: • 220-240 V / 380-415 V 2N~ 5.1 Electrical connection Power voltage Danger of electrocution • Have the electrical connection performed by authorised technical 6 x 1.5 mm² six-core cable. personnel. -
Page 34: Instructions For The Installer
Installation 5.2 Instructions for the installer • 220-240 V 1N~ • Do not bend or trap the power cable. • The appliance must be installed according to the installation diagrams. • If the appliance does not work correctly after having carried out all the checks, contact your local Authorised Service 5 x 4 mm²... -
Page 35: Power Limitation
Installation 5.4 Power limitation Overall dimensions (mm) The appliance is factory set to use the maximum available power: 7.4 kW. The maximum power of the appliance can be regulated via the user menu. 5.5 Section cut from the countertop Semi-flush mounting dimensions (mm) The following operation requires building and/or carpentry work and must therefore be carried out... -
Page 36: Mounting
Installation Flush mounting dimensions (mm) After laying the adhesive seal (A) on the glass surface and after positioning and For this type of mounting, you have to make securing the hob, fill the edges with an additional cut at the edges of the recess insulating silicone (B) and wipe away any if you wish to install the hob flush with the excess. - Page 37 Installation opens on rear Failure to install the double-layer opens on bottom and on rear wooden base exposes the user to possible accidental contact with On top of an empty kitchen unit or sharp or hot parts. drawers If there are other pieces of furniture (lateral Ventilation walls, drawers, etc.), dishwashers or fridges The illustrations below show two examples...
- Page 38 Spring clips To ensure the hob is fixed and centred as accurately as possible, the clips provided must be positioned as described below: 1. Fit the clips by gently pressing them horizontally into the appropriate space. 2. Then turn them upwards to fix them in place.
