ASSEMBLY

Assembly requires two people. Place all parts of the elliptical exerciser in a cleared area and remove the
packing materials. Do not dispose of the packing materials until assembly is completed.
Assembly requires a phillips screwdriver
rubber mallet

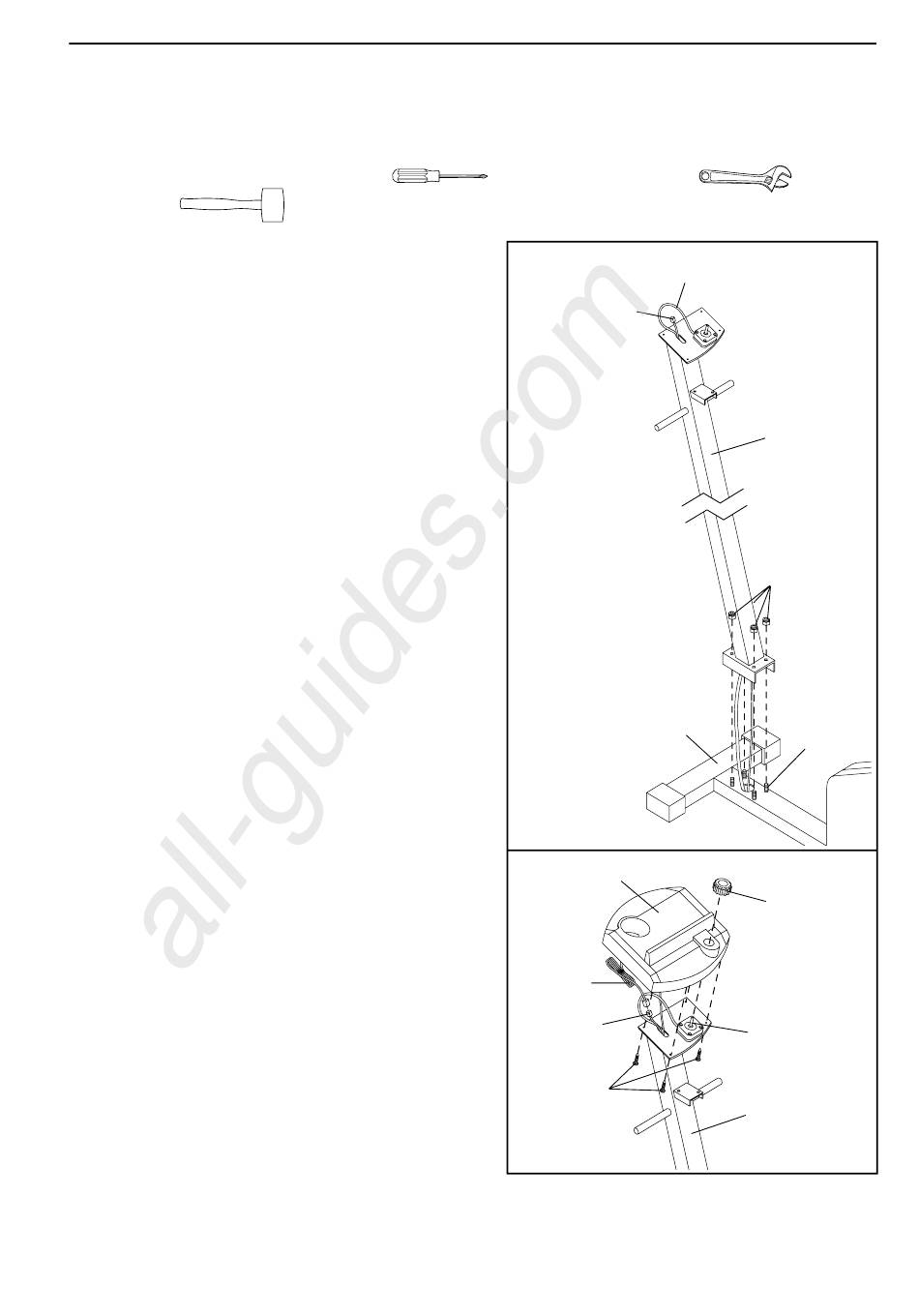

1. While another person holds the Upright (3) near the
Frame (1) as shown, gently pull the Resistance Cable
(26) and the Sensor Wire (25) out of the top of the
Upright until there is no slack between the Upright
and the Frame.
Slide the Upright (3) onto the welded bolts on the
Frame (1). Be careful to avoid pinching the
Resistance Cable (26) and the Sensor Wire (25).
Tighten an M10 Nylon Locknut (29) onto each welded
bolt.
2. While another person holds the Console (6) near the
Upright (3), connect the console wire to the Sensor
Wire (25).
Feed the slack Sensor Wire (25) back down into the
Upright (3). Attach the Console (6) to the Upright (3)
with four M4 x 16mm Round Head Screws (38). Be
careful to avoid pinching the Sensor Wire.
Press the Resistance Control Knob (50) onto the
Resistance Control (26).
All manuals and user guides at all-guides.com
.
, two adjustable wrenches
1
25
2
6
Console
Wire
25
38
6
, and a
26
3
29
Welded
1
Bolts
50
26
3
