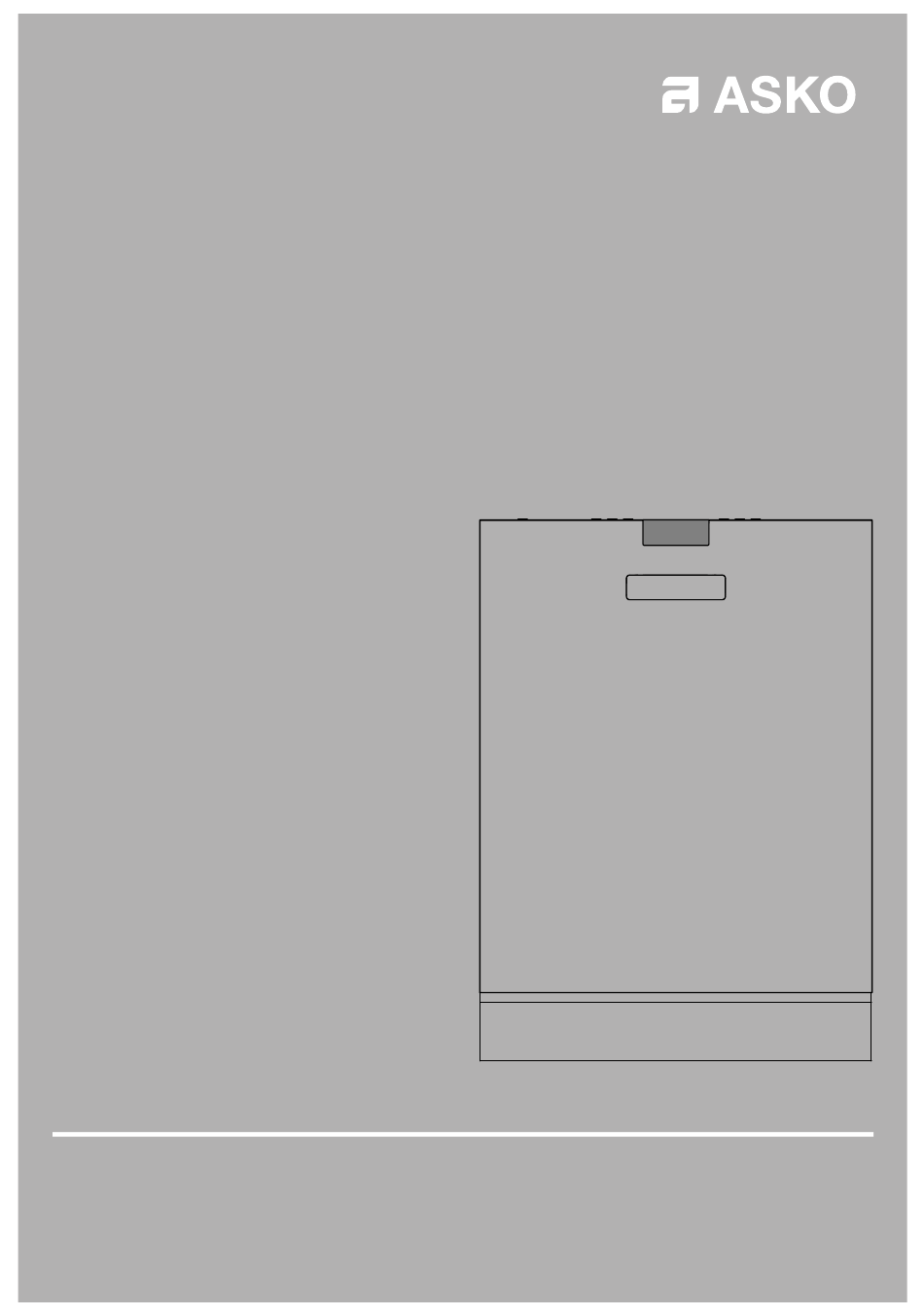

- Page 1 OPERATING INSTRUCTIONS Dishwasher DWCBI252XXL...
-
Page 2: Table Of Contents
Open the door and press the main power switch. "Welcome to your new ASKO. This is a first time set up." is shown on the display the first time the dishwasher is switched on. It is important that you choose the right settings to ensure good dishwashing results. See page 4. -
Page 3: Safety Instructions
Safety instructions Installation Read the operating instructions and keep them in a safe place! See the chapter Installation. Number of standard place settings: 15 Winter storage/Transport Never use the dishwasher for any purpose Store the dishwasher above freezing and avoid long transport distances other than that specified in these operating in very cold weather. -
Page 4: Before Washing For The First Time
Open the door and press the main power switch. soft water (water with low mineral content). Hard water leaves a white "Welcome to your new ASKO. This is a first time set up." is shown coating on dishes and the dishwasher. -
Page 5: Loading The Dishwasher
Loading the dishwasher Greener dishwashing Water hardness 0/1/2/3/4/5/6/7/8/9 Do not rinse under running water Adjusting the water softener. Select a setting depending on the Simply scrape off large food particles before loading the dishwasher. hardness of the water supply. It is important that this setting is correct! Do not forget to put salt in the salt compartment after you have set Choose a green detergent the water softener to 1 - 9. - Page 6 Fragile dishes The dishwasher's baskets Some cookware is not dishwasher safe. This can be for several reasons. The dishwasher is equipped with an upper basket, a middle basket Some materials cannot withstand strong heat, others can be damaged and a lower basket with a cutlery basket. by dishwashing detergent.
- Page 7 Middle basket The middle basket's wire basket with spray pipes is suitable for low objects. The middle basket's utensils basket has space for ladles, whisks, serving cutlery and similar items. Wire basket Foldable tines Lower the foldable tines (plate supports) when washing pots. Release the foldable tines by pressing the catch inwards before adjusting their position.
- Page 8 Fold-down section for small items The cutlery basket has a fold-down section in the middle for small items, or small shafts, such as electric whisk attachments. Accessory Buy an extra cutlery basket. The extra cutlery basket is flexible and can be dismantled and attached to the lower basket or the large cutlery basket to make an extra large cutlery basket.
-
Page 9: Using The Dishwasher
Using the dishwasher Add detergent NOTE! Use only dishwasher detergent! Washing up liquid must not be used Press to open as the foam that forms prevents the dishwasher from operating effectively. Dishwasher tablets Halve the tablet if it is difficult to close the dispenser lid. There is a risk that the detergent will not be released properly if the lid is tight and will not open correctly. - Page 10 Open the door and press the main power switch. Starting the dishwasher START STOP 2:00 2:15 58°C Speed mode Select the programme Select from more programmes The main power switch Sani B wash Choose Sani B wash if you want a quicker programme that still fulfils Open the door and press the main power switch.
- Page 11 Status indicator NOTE! The status indicator on the front display provides information by means During drying, the programme is interrupted if the power is cut or of different colours. the door is open for more than 2 minutes. Activate the Info in front display setting. See the chapter Settings. Once the programme has finished Blue - Load more The programme has started, but you can still load more dishes.
-
Page 13: Settings
Settings Open the dishwasher's Settings menu Open the door and press the main power switch until the display lights up. To open the dishwasher's Settings menu, press the Navigation buttons: x 3, To exit the dishwasher's Settings menu, select Exit and confirm your selection with Start/Stop. Navigation buttons for choosing setting Confirm current setting... - Page 14 Settings Options Decrease the rinse aid dosage: If the dishes have a sticky white/blue film. If the dishes are streaked. Build-up of foam. If you have very soft water, the rinse aid can be diluted 50:50 with water. When using an all-in-one detergent that contains rinse aid, you can activate the setting TAB.
-
Page 15: Care And Cleaning
Care and cleaning Fine filter Top up rinse aid Debris that collects on the fine filter is automatically rinsed away during When the rinse aid needs topping up, the above symbol lights on the each wash. Clean the fine filter when necessary. display. - Page 16 Unblocking the drainage pump If the dishwasher still contains water after the programme has finished, something may be blocking the drainage pump. Such items are easily removed. 1. Turn off the machine using the main power switch and unplug it from the wall socket.
-
Page 17: Troubleshooting
Troubleshooting Type of fault on the display Action Overfilling water 1 Clear the drainage pump. See the chapter Care and cleaning. If the problem persists, call the service department. Water outlet fault See “Water remains in the dishwasher” in the table “Problem” below. If the problem persists, call the service department. - Page 18 Problem Possible causes Action The dishes are not clean. The spray arms do not rotate. Check that the dishes are not blocking the spray arms. Spray arm holes or bearings blocked. Clean the spray arms and the middle basket's spray pipe. See the chapter Care and cleaning. Unsuitable dishwashing programme.
- Page 19 Problem Possible causes Action Water remains in the dishwasher. The filters are blocked. Clean the coarse and fine filters. The filters are not fitted correctly. Check that the filter handle is locked in the stop position. The handle should point straight out from the dishwasher.
-
Page 20: Technical Information
Technical information Information on energy labelling Information sheet, in compliance with Commission Delegated Regulation (EU) No. 1059/2010 ASKO Model designation: DWCBI252XXL Number of standard place settings: Energy efficiency class: Annual energy consumption(AE 270 kWh per year Energy consumption of the standard cleaning cycle(E 0.95 kWh... -
Page 21: Installation
Installation [mm] 1238 30-94 *Remove locking nuts for an installed height of 860-861 mm. Nominal dimensions. Actual measurements may vary. Safety instructions Transport protection for the door Connections to electricity, water and drainage must be performed Do not forget to remove the transport protection for the door when by a qualified professional. - Page 22 If the dishwasher is built-in the surrounding furnishings must be resistant Adjust the height and slide the to any condensation from the dishwasher. dishwasher into place B. Freestanding 1. Start by measuring the height from the floor to the bottom edge of A freestanding dishwasher must be fitted with anti-tip brackets.
- Page 23 Connection to hot water supply Drainage connection Connect the dishwasher to the hot water supply (max. 70 °C) if the This dishwasher is suitable for installing in a raised recess (to attain building is heated using an energy-efficient means such as district an ergonomic working height).
- Page 24 Screwing the dishwasher into place Dishwasher toe kick (Applicable only to built-in dishwashers.) The dishwasher is supplied with a toe kick. After fastening the machine, check that the front feet still touch the Fit the sound insulation floor. (only certain models) Screw the dishwasher into place with two extra screws If there is an air gap of more than 3 mm between the underside of the worktop and the top edge of the dishwasher, the dishwasher ought to...
-
Page 25: Service
If you have encountered a problem that you cannot resolve, dishwashers@appliance-development.com. please contact your nearest dealer, see www.asko.com. The request should include the details on the serial number plate. When making contact, provide the details on the serial number plate. -
Page 26: Your Notes
Your notes... - Page 27 Your notes...
-
Page 28: Quick Guide
Top up salt and rinse aid to achieve good washing and drying results. (See page 4.) Top up rinse aid Top up salt Select a programme (See page 10.) Press Start/Stop, close the door START STOP ASKO APPLIANCES SOCKERBRUKSGATAN 3, SE-531 40 LIDKÖPING, SWEDEN WWW.ASKO.COM...
