HP EliteBook 2540P Specifications

Notebook pc
Hide thumbs Also See for EliteBook 2540P:
Table of Contents

Advertisement

Quick Links

See also: Maintenance and Service Manual
QuickSpecs

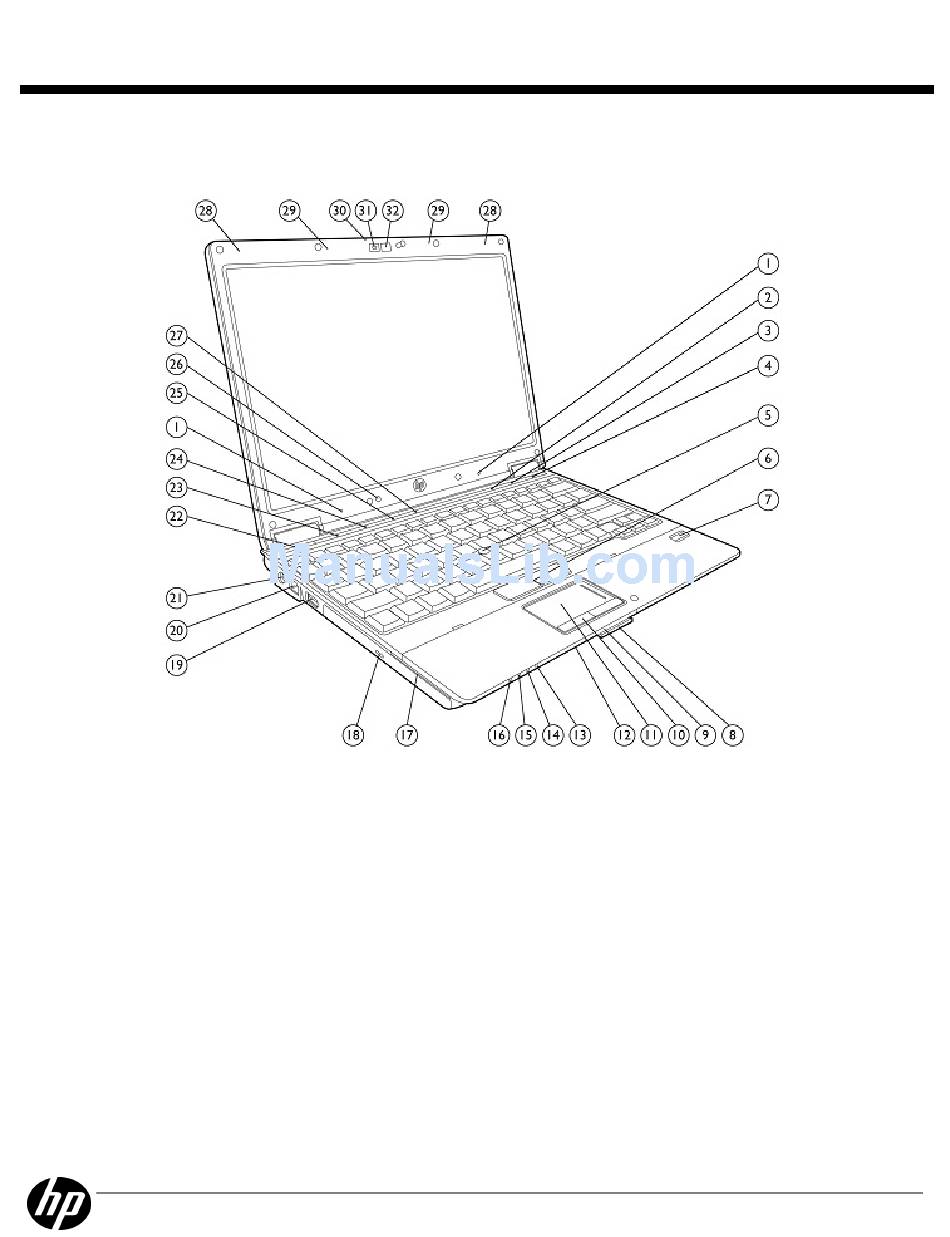

Overview

1.
Dual-microphone array
2.
Volume mute button with LED indicator
3.
Volume down button with LED indicator
4.
Volume up button with LED indicator
5.
Pointstick
6.
Pointstick buttons (2)
7.
Optional HP Fingerprint Sensor
8.
Display release button
9.
Business Card slot (for use with Business Card Reader)
10. Touchpad buttons (2)
11. Touchpad with scroll zone
12. Speakers
13. Drive activity / HP 3D DriveGuard LED indicator
14. Battery charging LED indicator
15. Power/standby LED indicator
16. Wireless on/off LED indicator
* Optional optical drive and weight saver are only available with the low voltage processor.
DA - 13566
North America — Version 8 — June 2, 2010
HP EliteBook 2540p Notebook PC
HP EliteBook 2540p Notebook PC
HP EliteBook 2540p Notebook PC
HP EliteBook 2540p Notebook PC
17. Integrated Smart Card Reader
18. Optional optical drive or weight
view of a 2.5" HDD configuration)
19. USB 2.0 Port (powered)
20. RJ-11/modem port
21. Power connector
22. Power button with LED indicator
23. HP QuickLook 3 button with LED indicator
24. HP QuickWeb button with LED indicator
25. Wireless on/off button with LED indicator
26. Ambient Light Sensor
27. Touchpad on/off button
28. Two WWAN antennas
29. Two WLAN antennas
30. Webcam LED indicator
31. Optional 2 MP Webcam
32. HP Night Light with on/off button
saver*
(see below for left
Page 1

Advertisement

Table of Contents
loading

Related Manuals for HP EliteBook 2540P

Summary of Contents for HP EliteBook 2540P

  • Page 1 Business Card slot (for use with Business Card Reader) 10. Touchpad buttons (2) 11. Touchpad with scroll zone 12. Speakers 13. Drive activity / HP 3D DriveGuard LED indicator 14. Battery charging LED indicator 15. Power/standby LED indicator 16. Wireless on/off LED indicator * Optional optical drive and weight saver are only available with the low voltage processor.
  • Page 2 (2) USB 2.0 ports 10. RJ-45/Ethernet port DA - 13566 North America — Version 8 — June 2, 2010 HP EliteBook 2540p Notebook PC HP EliteBook 2540p Notebook PC HP EliteBook 2540p Notebook PC HP EliteBook 2540p Notebook PC bay*...
  • Page 3 HP Power Assistant to conserve power, increase battery run-time, monitor power needs, report workforce power consumption Choice of 9-cell, 6-cell, or 3-cell battery, including HP Long Life batteries, to customize weight, run-time, and battery life to your needs...
  • Page 4 Bluetooth® v2.1 Choice of hard drive: up to 500 GB (2.5-inch) or up to 320 GB (1.8-inch) with HP 3D DriveGuard protection, or 80/160 GB Solid State Drive Optional fixed optical drive or secondary hard drive for RAID support available with low voltage processor 12.1-inch diagonal LED-backlit WXGA display, Ambient Light Sensor...
  • Page 5 Genuine Windows 7 Ultimate SuSE Linux Enterprise Desktop 11 DA - 13566 North America — Version 8 — June 2, 2010 HP EliteBook 2540p Notebook PC HP EliteBook 2540p Notebook PC HP EliteBook 2540p Notebook PC HP EliteBook 2540p Notebook PC...
  • Page 6 NOTE: NOTE: HP branded memory to ensure compatibility. If you mix memory speeds, the system will perform at the lower memory speed. Full availability of 4 GB or more of memory requires a Windows 64-bit operating system or Linux. With Windows 32-bit operating systems, the amount of usable memory is dependent upon your configuration, so that above 3 GB all memory may not be available due to system resource requirements.
  • Page 7 Works with a wide range of Bluetooth devices DA - 13566 North America — Version 8 — June 2, 2010 HP EliteBook 2540p Notebook PC HP EliteBook 2540p Notebook PC HP EliteBook 2540p Notebook PC HP EliteBook 2540p Notebook PC...
  • Page 8 Keyboard Keyboard The HP spill-resistant keyboard is designed using a thin layer of Mylar film under the keyboard and a drain system that funnels fluid through a hole in the bottom of the notebook. This minimizes the risk of damage to sensitive components underneath. The 101/102-key compatible keyboard features an industry standard, full-pitch key layout with desktop keyboard features, such as the isolated inverted-T cursor control keys, editing keys, both left and right control and alt keys, and 12 function keys.
  • Page 9 Weight Saver * Requires1.8-inch 250 GB 5400 rpm hard drive in 1.8-inch hard drive bay. External Optical Drive External Optical Drive External Optical Drive External Optical Drive Optional HP External USB CD/DVD R/RW Drive Interfaces Interfaces Interfaces Interfaces ExpressCard/34 slot...
  • Page 10 HP Recovery Manager HP Recovery Manager Models shipped with Windows 7 or Windows Vista include HP Recovery Manager. HP Recovery Manager enables fast recovery of the factory preinstalled image if the system becomes corrupted or if important system files are accidentally deleted. Up to 15 GB of the hard drive is reserved for the system recovery software.
  • Page 11 For more information on HP security solutions refer to: http://www.hp.com/go/security. HP ProtectTools Security HP ProtectTools Security HP ProtectTools Security HP ProtectTools Security HP ProtectTools Security Manager is the security platform for business notebooks and desktops. The HP Manager with Central Manager with Central Manager with Central Manager with Central...
  • Page 12 Total length including external AC adapter is 12 feet (3.66 meter). HP Fast Charge* *HP Fast Charge recharges your battery up to 90% within 90 minutes when the system is off. Fast Charge Technology does not apply to 9- cell primary batteries. Battery...
  • Page 13 1-year limited warranty on primary battery. On-site service and warranty upgrades are also available. HP Care Pack Services extend service contracts beyond the standard warranties. To choose the right level of service for your HP product, use the HP Care Pack Services Lookup Tool at: http://www.hp.com/go/lookuptool.
  • Page 14 Storage HP 250GB Pocket Media Drive HP External USB Drive CD/DVD R/RW HP Upgrade Bay SATA 500 GB 7200 rpm Hard Drive HP Primary SATA 500 GB 7200 rpm Hard Drive HP Primary SATA 320 GB 7200 rpm Hard Drive...
  • Page 15 Input/Output Devices HP USB Keyboard & Mouse Bundle HP USB Optical Travel Mouse HP Wireless Mouse HP PS/2 Keyboard & Mouse Bundle (requires USB-PS/2 adapter) HP BT Headset HP Mobile Audio Speakers HP Mobile Productivity Bundle HP Notebook Companion Projector...
  • Page 16 NOTE: NOTE: standard nature of some third-party memory modules, we strongly recommend using only HP branded memory modules to ensure compatibility. If you mix memory speeds, the system will perform at the lower memory speed. Availability of 4 GB or more of memory requires Windows Vista Business 64-bit or Linux.
  • Page 17 Optional Expansion Unit Optional Expansion Unit Optional Expansion Unit Optional Expansion Unit HP External USB CD/DVD R/RW Drive North America — Version 8 — June 2, 2010 HP EliteBook 2540p Notebook PC HP EliteBook 2540p Notebook PC HP EliteBook 2540p Notebook PC...
  • Page 18 Certifications Certifications Certifications Certifications DA - 13566 HP EliteBook 2540p Notebook PC HP EliteBook 2540p Notebook PC HP EliteBook 2540p Notebook PC HP EliteBook 2540p Notebook PC 1.10 in (at front) x 11.1 in x 8.4 in 28 mm (at front) x 282.2 mm x 213.4 mm Starting at 3.38 lb (1.53 kg) with weight saver (no optical drive)
  • Page 19 QuickSpecs Technical Specifications * Configurations of the HP EliteBook 2540p that are ENERGY STAR qualified are identified as HP EliteBook 2540p ENERGY STAR on HP websites and on www.energystar.gov. ** EPEAT Gold Registered in U.S. EPEAT registration varies by country. See registration status by country.
  • Page 20 Operating Temperature Features Features Features Features DA - 13566 HP EliteBook 2540p Notebook PC HP EliteBook 2540p Notebook PC HP EliteBook 2540p Notebook PC HP EliteBook 2540p Notebook PC 10.3 x 6.4 in (26.1 x 16.3 cm) 12.1 in (30.7 cm)
  • Page 21 Operating Temperature Operating Temperature Features Features Features Features DA - 13566 HP EliteBook 2540p Notebook PC HP EliteBook 2540p Notebook PC HP EliteBook 2540p Notebook PC HP EliteBook 2540p Notebook PC 0.25 lbs (115g) 250 GB 0.37 in (9.5 mm) 2.75 in (70 mm)
  • Page 22 Operating Temperature Operating Temperature Features Features Features Features DA - 13566 HP EliteBook 2540p Notebook PC HP EliteBook 2540p Notebook PC HP EliteBook 2540p Notebook PC HP EliteBook 2540p Notebook PC 0.13 lbs (62 g) 320 GB 0.31 in (8 mm) 2.12 in (54 mm)
  • Page 23 Operating Temperature Operating Temperature Features Features Features Features DA - 13566 HP EliteBook 2540p Notebook PC HP EliteBook 2540p Notebook PC HP EliteBook 2540p Notebook PC HP EliteBook 2540p Notebook PC 0.13 lbs (62 g) 160 GB 0.31 in (8 mm) 2.12 in (54 mm)
  • Page 24 Max Media Capacity (read) Transport Transport Transport Transport DA - 13566 HP EliteBook 2540p Notebook PC HP EliteBook 2540p Notebook PC HP EliteBook 2540p Notebook PC HP EliteBook 2540p Notebook PC 0.08 lbs (35 g) 160 GB 0.19 in (5 mm) 2.12 in (54 mm)
  • Page 25 ESD Resistance Detection Matrix Detection Matrix Detection Matrix Detection Matrix DA - 13566 HP EliteBook 2540p Notebook PC HP EliteBook 2540p Notebook PC HP EliteBook 2540p Notebook PC HP EliteBook 2540p Notebook PC Random <150 ms CD (typical) <145 ms DVD (typical)
  • Page 26 Impedance Communications Communications Communications Communications DA - 13566 HP EliteBook 2540p Notebook PC HP EliteBook 2540p Notebook PC HP EliteBook 2540p Notebook PC HP EliteBook 2540p Notebook PC IDT 92HD75B High Definition CODEC Volume up, volume down, and mute Device Used...
  • Page 27 Data Mode Capabilities Data Mode Capabilities Data Mode Capabilities DA - 13566 HP EliteBook 2540p Notebook PC HP EliteBook 2540p Notebook PC HP EliteBook 2540p Notebook PC HP EliteBook 2540p Notebook PC 10 Mbit/s operation (10BASE-T; IEEE 802.3i; IEEE 802.3 clauses 13-14) 100 Mbit/s operation (100BASE-TX;...
  • Page 28 Antenna Type Antenna Type Form Factor Form Factor Form Factor Form Factor DA - 13566 HP EliteBook 2540p Notebook PC HP EliteBook 2540p Notebook PC HP EliteBook 2540p Notebook PC HP EliteBook 2540p Notebook PC V.21 Bell 212A Bell 103J TIA/EIA-578-B (Class 1) T.30, T.4 (Group 3)
  • Page 29 Media Access Protocol Media Access Protocol Media Access Protocol Media Access Protocol DA - 13566 HP EliteBook 2540p Notebook PC HP EliteBook 2540p Notebook PC HP EliteBook 2540p Notebook PC HP EliteBook 2540p Notebook PC 11.5 g 2.01 x 1.18 x 0.18 in (51 x 30 x 5 mm) 3.3v +/- 10%...
  • Page 30 Microsoft Windows Vista and XP (details at: http://www.hp.com/go/notebooks/WLAN) 2.4 GHz and 5 GHz North America — Version 8 — June 2, 2010 HP EliteBook 2540p Notebook PC HP EliteBook 2540p Notebook PC HP EliteBook 2540p Notebook PC HP EliteBook 2540p Notebook PC 32°...
  • Page 31 0 to 10,000 ft (3,048 m) Non-operating 0 to 50,000 ft (15,240 m) North America — Version 8 — June 2, 2010 HP EliteBook 2540p Notebook PC HP EliteBook 2540p Notebook PC HP EliteBook 2540p Notebook PC HP EliteBook 2540p Notebook PC...

  • Page 32: Technical Specifications

    IEEE 802.11b IEEE 802.11g Wi-Fi certified Cisco Compatible Extensions Program compliantwith Microsoft Windows Vista and XP (details at: http://www.hp.com/go/notebooks/WLAN) 2.4 GHz 802.11b: 1, 2, 5.5, 11 Mbps 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps Direct Sequence Spread Spectrum...
  • Page 33 Link Topology Security Security Security Security DA - 13566 HP EliteBook 2540p Notebook PC HP EliteBook 2540p Notebook PC HP EliteBook 2540p Notebook PC HP EliteBook 2540p Notebook PC PCI-Express Half-MiniCard 0.013 lb (6 g) 0.19 x 1.06 x 1.18 in (4.75 x 26.8 x 30 mm) 3.3v +/- 10%...
  • Page 34 Microsoft Windows XP SP2 indicates the profile is part of Windows Vista DA - 13566 HP EliteBook 2540p Notebook PC HP EliteBook 2540p Notebook PC HP EliteBook 2540p Notebook PC HP EliteBook 2540p Notebook PC...
  • Page 35 This product is in compliance with the Restrictions of Hazardous Substances (RoHS) directive – 2002/95/EC. This HP product is designed to comply with the Waste Electrical and Electronic Equipment (WEEE) Directive – 2002/96/EC. This product is in compliance with California Proposition 65 (State of California;...
  • Page 36 Plastic packaging materials are marked according to ISO 11469 and DIN 6120 standards. This product does not contain any of the following substances in excess of regulatory limits (for reference of these limits please refer to the HP General Specification of the Environment (http://www.hp.com/hpinfo/globalcitizenship/environment/...
  • Page 37 This information (product disassembly instructions) is posted on the Hewlett Packard web site at: http://www.hp.com/go/recyclers. These instructions may be used by recyclers and other WEEE treatment facilities as well as HP OEM customers who integrate and re-sell HP equipment. For more information about HP's commitment to the environment: Global Citizenship Report http://www.hp.com/hpinfo/globalcitizenship/gcreport/index.html...
  • Page 38 HP products are set forth in the express limited warranty statements accompanying such products. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.
